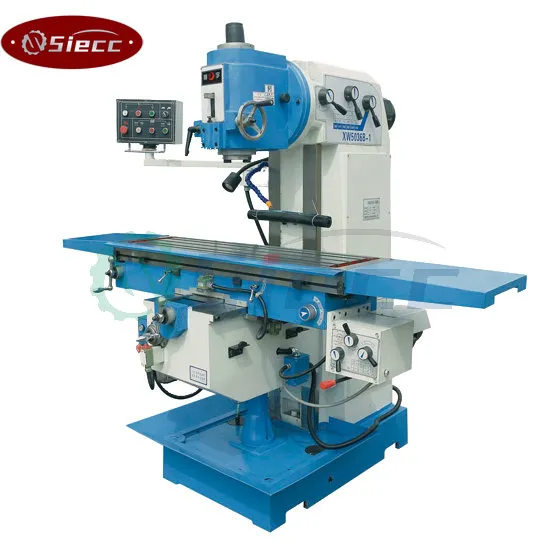

Milling Machine with CNC Ce Standard X5036

Milling Machine with CNC Ce Standard X5036

US$4,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
X5036
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Controlling Mode
Program Control
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
Wooden Box Packaged
Specification
X5036
Trademark
SIECC
Origin
Jiangsu/China
Production Capacity
1000 Sets/Year

Product Description

This machine has the following features:
1.X5036A vertical milling machine body adopts advanced cast iron, the high precision, long life after the artificial aging treatment
2.X5036A vertical milling machine spindle rigidity, strong bearing capacity, the bed is a rectangular guide bed, good stability.
3.X5036A vertical milling machine X, Y to the control of the machine tool by box type, can achieve automatic feeding, Z to the use of motor automatic lift.
4.X5036A vertical milling machine X, Y, Z three direction of the guide rail hardening, precision grinding. Plastic slide
After the motion precision and life and taste
5.Equipped with manual lubrication device can be used to guide screw and guide rail.
6.X5036B vertical milling machine is a kind of common metal cutting tools. This tool spindle cone can be directly or through the attachment of cylindrical milling, installation, end milling cutters, Angle cutter knives, applicable to such processing various parts of the plane, cant, groove, holes etc, machinery manufacturing, mould, instrument and meter, automobile, motorcycle industries ideal processing equipment.
The main specification of the machine
SPECIFICATIONS
X5036A
X5036B
Spindle taper
7:24 ISO50
7:24 ISO50
Distance.spindle to tabie surface mm
80-440
70-450
Spindle center to column guideway surface distance mm
320
360
Spindle speed range r/min
60-1700(12)
60-1690 (12)
Mill Head rotation angle
±45°
±45°
Table size mm
1250×360
1500×360
Table travel (X/Y/Z) mm
600/320/360
1000/320/380
Table longitudinal/lateral Speed of mm/min
22-555(8)810()
15-370(8)540()
Table vertical speed motor movements mm/min
590
590
Table T-slot number/width/spacing mm
3/18/80
3/18/80
Main motor power kw
4
4
Table motor power feed motor w
750
750
Lift motor power down feed w
1100
1100
Cooling pump motor powe w
90
90
Cooling pump flow
25
25
Machine NW/GW (kg)
2200/2400
2230/2400
Overall size(mm)
1700×1680×1880
2220×1790×1980
