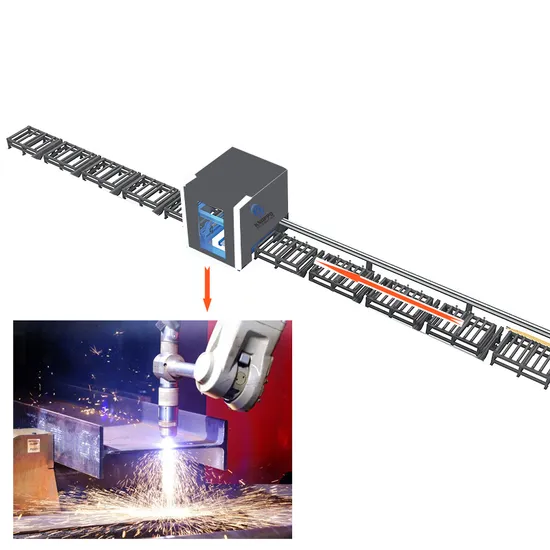

12kw 20kw H Beam I Beam Square Pipe Profiles Bevel Cut Hole Cut Fiber Laser Beveling Cutting Machine

12kw 20kw H Beam I Beam Square Pipe Profiles Bevel Cut Hole Cut Fiber Laser Beveling Cutting Machine

US$94,599.00 1 Set (MOQ)

Basic Info.

Model NO.
YT12
Application
Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Textile Machinery, Food Machinery, Woodwork Industry, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Gantry Type
Laser Classification
Solid Laser
Laser Technology
Laser Control Fault Cutting
Model
Kt6
Wavelength
1070nm
Tube Cutting Length
6m 9m 12m
Laser Power
6000W / 12000W /20000W
X/Y-Axis Positioning Accuracy
0.03mm
X/Y-Axis Repositioning Accuracy
0.02mm
Max. Acceleration
1.2g
Max. Linkage Speed
140m/Min
Laser Head
Ospri Auto Focus
Laser Source
Raycus / Max / Ipg
System
Weihong
Servo Motor
Japan Yaskawa
Servo Driver
Japan Yaskawa
Water Chiller
S&a
Wight
11000kg
Transport Package
Wooden Box
Specification
9*2.5*1.8m
Trademark
Yvchuang
Origin
China
HS Code
8456110090
Production Capacity
500 Sets/Month

Product Description

KNOPPO FIBER LASER H BEAM CUTTING MACHINE , 3 YEARS WARRANTY
Product Description
Professional Laser Tube Cutting Machine for round pipe ,square tubes,rectangle tubes,tubular elements and H beam profiles. Our Tube Laser Cutting Machine have different model , can cut tubes from 100-1200 mm in diameter with length 6 meters or 12 meters , automated feeding tube and pipe function.
APPLICATION
Fiber laser has a series of advantages,tube laser cutting machine has gradually been used more and more in tube processing companies.
such as high beam quality, high brightness, high conversion rates, maintenance-free, stable and reliable operation of low cost and small size, etc. Air-assisted cutting is the most advanced level of laser cutting, which is particularly suitable for stainless steel, carbon steel, alloy, brass, copper, titanium and other metal materials precision cutting. It is widely used in metal products, bicycle, metal furniture, fitness equipment, sports equipment, farm machinery, display shelf, fire control.

Product Parameters
Model
YT12
Laser Power
6000W/8000W / 12KW / 20KW
Tube Cutting Length 6m / 12m
Tube Cutting Diameter Round Tube: φ50-φ1200mm Square Tube :50-850mm
U-Steel 5#-100#
H-Beam 50~1200mm
Angle Iron 850*850mm
Machine overall dimensions
15550*2300*2000mm
Machine weight
16000kg
Max. linkage speed
140m/min
Max. acceleration
1G
Positioning accuracy
0.03mm
Repositioning accuracy
0.02mm
Option Semi-automatic loading / Full-automatic loading system

Detailed Photos
Ospri Auto Focus Laser Head With 45 Degree Beveling
Built-in double water-cooling structures can ensure constant temperature of collimating and focusing components, avoid lenses overheating and extend service life of lenses. protective lens can carefully protect key components.
MAX Laser Source
MAX is largest manufacturer of laser source in China , can cut carbon steel , stainless steel and aluminium etc . Good quality and long life . Suitablef for 24 hours continuous working .
Strong Welding Machine Body
High compressive strength and high hardness. Strong shock absorption and wear resistance. Low thermal sensitivity and bed gap sensitivity reduce the loss of equipment in using, so the machine accuracy could maintain for a long time, and no deformation in a life cycle.
Japan FUJI Servo Motor
1. Adopting Japan FUJI servo motor, adopting closed-loop control method to ensure accurate positioning and dynamic response of the optimum acceleration, which makes the automatic positioning mechanism run smoothly, reliable and maintenance-free.
2. X,Y,Z axis high power motor drive, acceleration up to 1.5G.
WEIHONG Control System
Real-time compensation for pipe center deviation, reducing pipe clamping requirements and higher efficiency; pipes have higher perforation precision and more accurate cutting.
Based on the bus real-time system and the integrated control, the pipe corners are cut faster; the corner following is more stable, and the cutting quality is more reliable.
Support the follow-up function of the bracket to ensure the quality of the whole pipe processing and cutting of the pipe.
It supports feeding cutting of hollow chuck, greatly shortens the overall length of the pipe cutting machine, and high automation.
It supports the pulling cutting of three chucks to ensure the cutting accuracy of long parts and realize zero tailing cutting.
servo control aspects, its running speed and accuracy should obviously be better than other similar products, owing to dual closed-loop algorithm of speed and position. Support alarm while hitting the board and beyond the edge. Support edge detection and automatic inspection.
Automatic Feeding And Chuck, Zero Tailing Cutting
Automatic electric chuck, claw DC motor drive, clamping motor current is sensitive, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering electric chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.
Full-automatic Loading System
Automatically detects tubes and clamps the next tube to the standby place. After the processing for the previous tube finishes, the device loads the next tube in time and achieves constant processing in a real sense.
Sample
Certifications
Our fiber laser cutting machine have CE certificates , all electric drawing and quality is suitable European standard .
After Sales Service
*3 years guarantee of the whole machine and we give lifetime maintenance free of charge.
*Free training to make sure you master the operating of machine at our factory.

* 24 hours online services through Whatsapp, Skype, Email or on the phone.

*Engineers available for overseas training and after-sale services.

* Friendly English version manual and operation video CD disk.
Company Profile
Knoppo Automation is one of the world's leading manufacturers of high-tech industrial laser solutions, dedicated to providing laser intelligent equipment solutions and enabling our customers in various branches around the world to become more efficient and competitive. With more than 15,000 laser cutting systems in the market and a rapidly increasing global base, Knoppo Automation is in a favorable position to serve the international customer base, guaranteeing highest quality and shortest response times in already more than 100 countries. Our focus is on the innovation, continuous improvement and rapid development of technologies, all of which aim to increase efficiencies and flexibility, minimize costs while generating the highest levels of environmental friendliness and sustainability to our all benefit. We aim to provide key technologies and customized integration solutions for Industry 4.0 and smart factories, helping enterprises to make perfect use of the many opportunities arising in the digital age.
The product range not only comprises of flat sheet cutting systems in various designs and dimensions, but also of laser tube cutting systems, CO2 laser cutting engraving machine , laser marking machine etc . With our focused, highly skilled and experienced R & D team and a perfectly equipped and trained systematic after-sales technical department, we truly provide customer-oriented service experience.China Low Cost CNC Fiber Laser Cutting Machine Fast Speed 1530 Laser Cutter for Metal Stainless Steel
