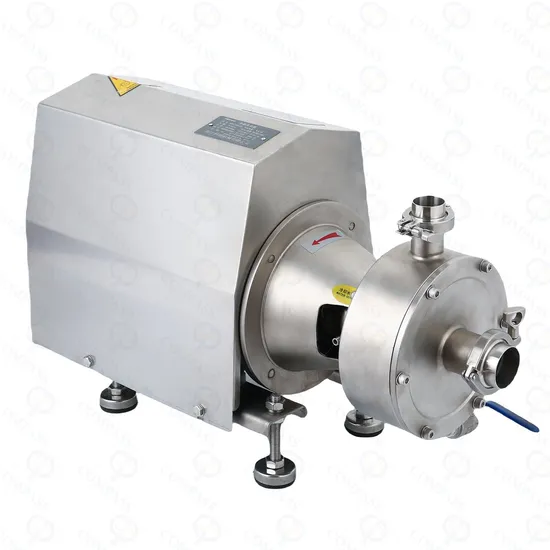

Xusheng Hygienic Food Grade Emulsifying Pump Stainless Steel SS304 Sanitary Pipeline High Shear Dispersed 7.5kw 10HP Single Stage Emulsion Pump

Product Description

Product Description
Xusheng Hygienic Food Grade Emulsifying Pump Stainless Steel SS304 Sanitary Pipeline High Shear Dispersed 7.5KW 10HP Single Stage Emulsion Pump
Working Principle TRL1 Pipeline high shear dispersing emulsifier is a high performance equipment used for continuous prod-uction or circulated treatment of fine material.In the small chamber,there are 1-3 sets of paired and clutched stators and rotor.Driven by motor,the rotor revolve quickly and produces a strong axial suctionforce which intakes the material to the chamber.The machine disperses,shears and emulsifiesthe material in shortest time,and the diameter range of the particles gets smaller so that fine and stable products are produced.
Specification

Material Contact Parts	SS304/SS316L(1.4301/1.4404)	Provided with material inspection report
Material Non-contact Parts	SS304(1.4301)
Flow Rate	1.5-130 m³/hr
Motor Power	1.5-132 kw
Voltage	380v,220v, 230v, 208v, 460v, 440v, 415v, 400v
Hertz	50hz, 60hz
Phase	Single Phase, Three Phases
Speed	2900rpm, 3500rpm, 1450rpm
Motor Brand	ABB, Siemens, China
Type of Teeth	Rough Teeth, Middle Teeth, Fine Teeth
Processing Method	Mixing→Dispersing→Emulsifying→Homogenizing
Material of Mechanical Seal	Alloy + FKM & Alloy + EPDM for Double Mechanical Seal
Connection	Butt-weld, Ferrule End, Male Thread, Female-Male Threaded, Union, Weld-Thread, Flange
Seal Material	Silicone,EPDM,FKM,Buna, all seals material comply with FDA21CFR117.2600
Working Pressure	≤10bar(145psi)
Supply Pressure for Air Actuator	5~8(72.52psi~116psi)
External Surface Treatment	Ra32~64ui n(o.8~1.6um)
Internal Surface Treatment	Ra16~32uin(0.4~0.8um)

Actual Photos and Selection of Configuration for Single-stage High Shear Dispersing Homogenizer Pump
1. Ordinary Variable Frequency Motor or ABB Variable Frequency Motor or Ordinary Motor
2. FVD Frequency Converter Control Box, such as Delta Brand or ABB Brand or Other Brands
3. Cabinet Mobile Cart with Brake or without Brake
4. With Hopper, such as 40L Hopper, 50L Hopper
5. With Tanks

Customized Configuration	TRL1 Pipeline High Shear Dispersing Emulsifying Pump
	TRL3 Pipeline High Shear Dispersing Emulsifying Pump
	Sanitary Lobe Rotary Pump
	TRH Intermittent High Shear Homogenizer
	TRH-I Tank Bottom High Shear Homogenous Emulsifier
	Agitator or without Agitator for tanks	Option_6
	Jacket or without Jacket for tanks	Option_7
	Insulation or without Insulation for tanks	Option_8
	45L Hopper, 50L Hopper, 60L Hopper	Option_9
	Stainless Steel Pipes, Fitting, Valves & Unions, Etc.	Option_10

Selection of Different Impellers and Stators for Customers Referance

Such as rough teeth, middle teeth, fine teeth, impeller with blade, and so on.
It depands on your products characteristic to design, then homogenizer emulsifying pump can work high effective and few repairs.

Product Parameters

Advantage	Options	Design Features
1. Mass production suitable for continuous production of industrialized assembly line 2. Small diameter range,and highly even 3. Time saving,highly efficient and energy saving 4. Low noise,stable operation 5. Reduced quality difference between lots 6. Material is fully dispersed snd sheared 7. Daliver in short distancc with low lift 8. Easy operation,convenient maintenance 9. Automatic control	1. Material SS304 an SS316L are optioned 2. Connection can be butt-weld, ferrule, union, flange 3. Motor brand includes of ABB, Siemens and China 4.There are different voltage and hertz are optioned, such as 380v/50hz,220v/60hz 5.Silicone material includes of Silicone,EPDM,FKM,Buna, all seals material comply with FDA21CFR117.2600	1. The flow is designed in 1.5 to 130 m³/hr 2. Motor power can be matched from 1.5 kw to 132 kw 3. The teeth can be designed to rough teeth, middle teeth and fine teeth

Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
If small order and choose by express , the items are packed by shrink wrap and secondly carton cases.
If heavy weight of cargo ,which be packed by strongly seaworthy ply-wooden cases .
In order to protective items , which will be packed by safety and resistance to shock in ply-wooden cases
Contact Us
If you have any inquiry or question for our valves, please kindly do not hesitate to let us know soon.
We also produce other valves and pumps, welcome to Xusheng here, we will try our best to quote you in competitive prices.

Company Profile
XUSHENG & COMPASS are manufacturer and supplied with sanitary valves, pumps, pipe fittings, tanks, tube. They are widely used for food, beer, beverage, chemical,biological, pharmacy and so on. Totally 112nos of workers and the factory Covers 4035m2,our warehouse covers 1000m2. We have 29 sets of LG Mazak machines and other CNC machine from Japan ; Meanwhile,we have 2 sets of automatic machining unit. Here is our range of products as below.
A. Sanitary valve includes of butterfly valve, mix-proof valve, division valve, diaphragm valve, ball valve, check valve, safety valve, air relief valve, angle seat valve, constant pressure valve, bottom tank valve, racking arms valve, float valve, breather valve, and so on.
B. Sanitary pumps includes of centrifugal pump, rotary lobe pump, CIP self priming pump, mixing pump, vacuum pump, Emulsion Pump, screw pump, and so on.
C. Sanitary tank component includes of manhole cover, cleaning ball, filter,sight glass.
D. Sanitary pipe fitting has union, ferrule, clamp, solid end cap, pipe holder, nipple, coupling, adapter,elbow, tee, reducer.
E. Sanitary tanks includes of storage tank, mixing tank, fermentation beer tank, and so on.
F. Sanitary tube has seamless and weld type.
14 years experiences in design and good solution in food grade production line.
Competitive prices & High quality products to achieve win-win mutual benefits.
Professional & Communicate easily.
Huge warehouse & Delivering shortly.
Strong team & Better after-sale.

FAQ
Q1. Are you a trading company or factory?We are a manufacturing factory.Q2. What's the payment terms?For small testing orders,we accept Paypal,Western Union,T/T and credit Card.For mass orders,we accept T/T and L/C.Q3.How do you control the quality?Quality control is very important to avoid material mixing and poor quality.We control the quality from beginning to the end.Weonly have 304 and 316L two different materials.100% inspection on raw material.During production,different materials in different place.After materials are finished,we choose 10% for inspection.If there is 0.1% problem in 10%,then no excuse to go ahead for inspecting 100% of the materials.Q4.If there is any quality problem,how do you solve it?We are proud that we never let one customer leave us.We are not 100% perfect,there is some quality problem.We try our best to provide the correct materials in the beginning,so we need less time for quality problem.If there is any quality problem,we take the responsibility.We believe what we are doing together,it will get back tomorrow.If we leave our responsibility,customer will leave us.If we always take our responsibility,we keep our customers with us.Q5.How long is your delivery time?For normal production in 7-10days.For bulk order in 15-25days.Q6.WarrantyOne year warranty for all of our stainless steel products.Gaskets are not included due to the different application for customers.
How to Order ?
How do order Inline High Shear Dispersing Homogenous Emulsifier Pump ?
1. What's material quality ? Such as SS304 or SS316L
2. What's products used for pump ? Such as cosmetic
3. What's viscosity of products ? Such as 10000cps
4. What's flow rate per hour ? Such as 3000 liters per hour
5. What's head for pump? Such as 2.2kw
6. What's voltage and hertz ? Such as 380v/50hz/ 3phase
7. What's type of motor brand? Such as ABB motor
8. Do you need VFD Frequency and Control Cabinet or wheel trolley ?
9. How many quantity you need ?
