High Quality Speed Factory Production Fireworks Pyrotechnics Forming Machine

Product Description

High quality speed factory production Fireworks Pyrotechnics forming machine Product details

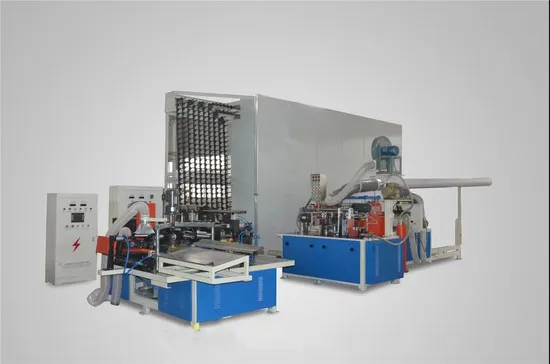

The automatic production line for firework paper bobbins, the main driving force transmitted through a cam mechanism for time control purposes. It uses a range of electromechanical control technologies such as post operation control, high/low two-speed inverter control, photoelectric control, approach control and pneumatic delay control to ensure less manpower, low energy consumption, high efficiency and top quality production. It consists of paper cone winding unit, drying oven, and paper cone finishing unit.

The whole firework paper cone production process is as follows,
Rolling---Internal and external printing---Paper edge grinding---paper cutting--- paper cone winding&trimming--- Paper cone drying---Head Curling---Final products collating

Main Technical parameters
Speed: 25-50pcs/min
Applicable glue: white glue/Tapioca starch glue
Power: 49.2 KW/380V/50HZ/3Phases
Operator: 1persons
1. winding machine
This winding machine is suitable for firework paper cone of various specifiacation.After hanging the paper roll,internal and external printing,eage grinding,cutting,winding,head cutting,the semi-finished paper cone will be sent to the dryer.It takes double speed variable frequency control technology.The winding speed will be adjusted automatically.
The whole process is easied by connecting with the dryer.

speed:25-60PCS/min
Power: 13.27kw
2. collating machine
The speed can be adjusted freely with over-load protector and automatic stopping equipment when the improper operation happens to guarantee the safety and stability and tower the waste rate.The after finishing machine can also be used individually.

Main parameters
Types:Various firework paper cone
Speed: 35-50PCS/min
Air Pressure:0.3-0.4mpa
3. drying machine
The auto-temperature control dryer uses chain-type circulation drying.After setting up the temperature,the heat can be controlled,maintained and adjusted freely,featured Low consumption and high outcome.Fireworkpaper cone can be feed and collected automatically after connecting with other equipment.

Main parameters
Speed: 25-50pcs/min
Power:10.1-24.5kw

About us
Hebei Zengshan Intelligent Technology Co., Ltd. is a professional manufacturer of CNC machine tools, paper tube equipment, papermaking machinery, corrugated box equipment, and coating machinery. In 1990, we jointly produced textile tubes and spiral tubes with Taiwan Haoli Company. In 1992, we developed and launched a complete set of semi-automatic cone paper tubes and spiral paper tubes equipment. With advanced processing technology, processing methods, excellent product quality, and comprehensive services, our -products are sold to various parts of the country.-
In 2006, based on advanced technologies from Germany, South Korea, and other foreign countries, the QZD-68 fully automatic cone paper tube production line was developed. This machine adopts new technologies and processes of mechatronics integration, achieving the production of low labor, low energy consumption, high efficiency, and high-quality cone paper tubes.
In 2018, through communication and discussion- with numerous domestic customers, combined with international advanced experience, improvements and commissions were made to the original equipment. A new fully automatic conical paper tube production line ZSZ-2018 was launched, further improving the utilization rate of raw materials and gaining unanimous recognition from customers.
We have nearly thirty years of experience in mechanical manufacturing and processing.
We have nearly 20 years of experience in the production of paper and yarn tubes.
We provide you with excellent complete equipment and rich industry experience.
Quality is like a mountain, reputation is like a mountain, and commitment is like a mountain!
