US$0.50-1.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
Emergency Stop Switch
Application
Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Home
Number of Switch
Double Control Switch
Structure
Power Built-in Type
Usage
Control Button, Start Button, Reset Button, Change-over Switch, Control Switch
Kind
Double-pole on-off Switch
Contact Type
Type c Contact
Detection Method
Correlation Type
Certification
ISO9001, CE
Mounting Hole Size
16/19/22mm
Operation Type
Momentary/Latching
Switch Combination
1no1nc/2no2nc
Terminal Type
Solder Terminal
Enclosure Material
Stainless Steel/Brass
LED Color
Blue(or Red, Green, Yellow, Orange, White)
LED Voltage
12V(or 3V/5V/24V/36V/110V/220V/250V)
Connector Customized
Acceptable
Transport Package
Neutral Packing
Specification
Emergency Stop Switch
Production Capacity
50000PCS/Day
Packaging & Delivery
Package Size
3.00cm * 3.00cm * 3.00cm
Package Gross Weight
0.030kg
Product Description

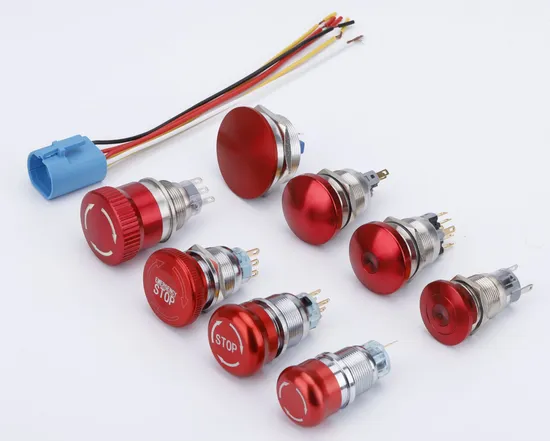

16/19/22mm Metal Push Button Switch Latching 12V-250V Waterproof Stainless Steel Mushroom Red Emergency Stop Switch
Product Description:
Momentary Switch: Momentary switch remains in their on state as long as they're being actuated (pressed, held, etc.).
These momentary buttons are perfect for Starter switch, Relay, Doorbell button, Horn Button Switch, PC Power Switch, Kill Switch or any circuit controls.
Product Name | Emergency Stop Switch |
Model | IB22E-P11F-E*/S |
Mounting Hole | 22mm |
Operation Type | Momentary (Reset) |
Switch Combination | 1NO1NC |
Actuator Shape | Flat Round Head |
Terminal type | 5 Pin Terminals |
Illuminated or not | Yes |
Led Voltage | 12V (or 3V/5V/24V/110V/220V/others) |
Led Color | Blue (Red, Green, Yellow,White,Orange available) |
Illuminated Type | Ring and Power Logo |
Enclosure Material | Stainless Steel |
Delivery Days | 1-7 days |
Contact Resistance | 50 mΩ max |
Insulation Resistance | 1000MΩ Min |
Dielectric Intensity | 2000VAC |
Operating Temperature | -20°C ~+55°C |
Customized symbol,colored housing or Connector | Acceptable and with fast shipping |
Accessories | Nut, Rubber Waterproof O-ring |
Customized Order Confirm | 1. What Led Color? 2. What Led Voltage? |
Wiring Harness | Click here HARNESS and choose item No.: IB22E Harness |
What You Get | 1X Push button switch: 22mm, 12V Blue LED, Momentary |
Note: If you need Customized LED, please inform us by mail: What Led Color? 2. What Led Voltage?
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q9: What is Momentary function?
A: When you push switch and then move your finger, the actuator will back to the original position.
Q10: What is Latching function?
A: When you press the button, it will be ON and keeps locked until you press again, it will return to original position.
