7% Price off Star Products 1kw Metal Cutting Fiber Laser Machine / 1.5kw Fiber Laser Cutting Machine

7% Price off Star Products 1kw Metal Cutting Fiber Laser Machine / 1.5kw Fiber Laser Cutting Machine

US$18,000.00
1-4 Set
US$16,000.00
5+ Set

Basic Info.

Model NO.
LX3015F
Application
Metal Processing Company
Cooling System
Water Cooling
Technical Class
Fiber Laser
Applicable Material
Metal
Structure Type
Desktop
Laser Classification
Fiber Laser
Laser Technology
Fiber Laser Cutting
Z Axis Clearance
150mm(200 and Higher Is Optional)
Transmission System
Rack Pinion and Hiwin Linear Rails for X/Y
Driving System
Stepper Motor and Drivers(Servp Motor Is Optiona)
Working Voltage
380V/3pH(220V/3pH Is Optional)
Plasma Generator
Huayuan China and USA Power as Your Requirements
Arc Mode
Non-Contact Arc, Arc Pressure Adjuster
Max. Cutting Thickness
6/15/18/20/30mm
Working Material
Steel, Aluminum, Galvanized Sheet, Titanium Plate
Operating System
Starfire Controller/Start Controller
Transport Package
Standard Export Packaging
Specification
2080*3880*1500mm
Trademark
LXSHOW
Origin
China Shandong Jinan
Production Capacity
300sets/Years

Product Description

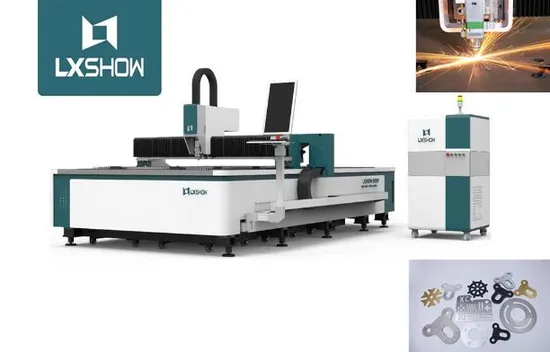

High Quality Fiber Laser Cutting Machine for Metal CutLX3015F is fast speed mild steel cnc fiber laser cutting machine with 3000*1500mm working area, which consist of machine tool,motion parts, electrical equipment control parts, and other assist parts. Via control system to operation three axis motion parts,so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis of aluminium stainless steel sheet cutting machine adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 500 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission. MAIN PARTS The RAYTOOLS AG comes with the external motor and the built-in drive unit through the linear driver and the focusing lens can automatically change the position in the range of 25mm. The user can set the focus continuously through the program to complete the rapid perpiercing of thick sheets or other different thickness and material sheets.
CONTROLLER
BOCHU FSCUT 2000C
LASER GENERATOR
JPT/IPG/NLIGHT/RAYCUS
Customizable
bed frame

Our advantage
(1). High rigidity heavy chassis, reducing the vibration generated during the high-speed cutting process.
(2). Gantry double-drive structure,with imported Germany rack & gear transmission system, which improves the production efficiency.
(3). High-performance cast aluminium guide rail, after infinite aalysis ,which accelerates the cicular arc cutting speed.
(4). High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.
(5). The laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.
(6). The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is very small, and there is no mechanical deformation.
(7). It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.
(8). Non-deformable cutting can be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys
SAMPLE
PARAMETER
Equipment Specification
Model
LX3015F
LX4015F
LX4020F
LX6020F
Cutting Area
3000*1500mm
4000*1500mm
4000*2000mm
6000*2000mm
Laser source
Raycus OR other Brand
Raycus OR other Brand
Raycus OR other Brand
Raycus OR other Brand
Max Moving Speed
120m/min,Acc=1.2G
120m/min,Acc=1.2G
120m/min,Acc=1.2G
120m/min,Acc=1.2G
Position Accuracy
±0.03mm
±0.03mm
±0.03mm
±0.03mm
Reposition Accuracy
±0.02mm
±0.02mm
±0.02mm
±0.02mm
Power
380V 50/60Hz 50A
380V 50/60Hz 50A
380V 50/60Hz 50A
380V 50/60Hz 50A
Max Loading(KG)
700
1300
1900
1900
Max Loading(KG)
≤4000
≤5000
≤5500
≤600

* About Jinan Lingxiu Laser Equipment Co., Ltd.

is established in July 2004, owns more than 500 square meters of researching and office
space, more than 32000 square meters factory.All machines , passed the European Union CE authentication, American certificate and
are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries
and areas,and supply OEM service for more than 30 manufactures.

FAQ
Q: Do you have CE document and other documents for customs clearance?A: Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packinglist/Commercial Invoice/Sales contract for customs clearance.Q: Payment terms?A:****** trade assurance/TT/West Union/Payple/LC/Cash and so on.Q: I don't know how to use after i receive Or i have problem during use, how to do?A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of yourproblems finished.We can also provide Door service if you need.Q: I don't know which one is suitable for me ?A :just tell us below information1) Max work size:choose most suitable model.2) Materials and Cutting thickness:Power of laser generator.3) Business industries:We sell a lot and give advice on this business line.
Q: If we need Lingxiu technician to train us after order,how to charge?A:1) If you come to our factory to get training,it is free for learning.And the seller also accompanyyou in factory 1-3 working days.(Every one learning ability is different,also according to details)2) If you need our technician go to your local factory to teach you ,you need to bear the technician'sbusiness travelling ticket / room and board/ 100 USD per day.
