CE China Factory Shantui 22ton 220 PC220 Excavator with Quick Hitch

Product Description

Product Description

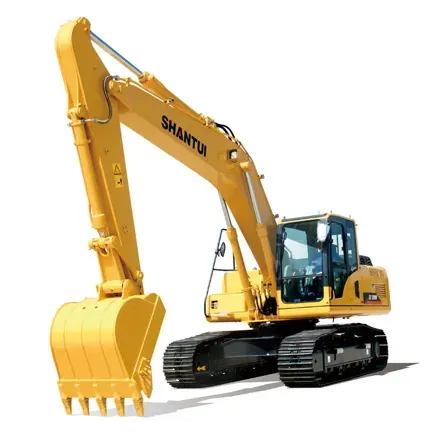

The new SHANTUI SE220LC excavator is designed specifically to give you the confidence to complete any given excavating task. This machine is purpose-built to be just the right machine to get your everyday jobs done. Great machine performance combined with low owning and operating costs make the SE220LC the right choice for your business
Improved reliability and efficiency
An advanced electro-hydraulic negative flow control system provides the optimum balance of power and efficiency while giving you the control you need for precise digging requirements. A Cummins B5.9 engine and powerful hydraulics give you the power to move your material with speed and precision.




Operator comfort and convenient control
Work comfortably and safely in a spacious and quiet cab which provides superb visibility from the operator seat to keep you aware of surroundings. An adjustable suspension seat can increase comfort and reduces operator fatigue.
ROPS and FOPS certified cab provides a safe work environment. The hydraulic activation level locks out all the hydraulic functions. Enter and exit the cab and walk on the upper structure safely with handrails, anti-skid plating and countersunk bolts which are meant to reduce slipping and tripping. Rear-view camera is also optional to protect working from all around.
Reliable and durable design
Using advanced engineering and software, we carefully analyze each structure to create durable, reliable machines for tough applications.

Drive wheels, guide wheels, track rollers, carrier rollers, and tracks
With 30 years of R&D and manufacturing experiences of drive wheels, guide wheels, track rollers, carrier rollers, and tracks and with world's leading technologies, it's the first choice for excavators;The world's sophisticated forging and heat treatment processes guarantee stable and reliable quality.

Versatile SHANTUI attachments
Fast and easily change attachments with optional auxiliary hydraulics. Enhance your work capabilities with a variety of attachments including buckets, hammers, grapples and couplers.
SHANTUI dealer can install hydraulic kits to properly operate attachments, maximizing machine uptime and profits.
Technical Specifications

Engine	Model	Cummins B5.9-C
	Type	Water cooling, in-line ,6 cylinders, turbocharging
	Quantity of cylinders	6
	Bore x stroke	102 X 120 mm
	Displacement	5.9 L
	Power output	112 kW/1950 rpm
Hydraulic System	Pump	Imported
	Type	Variable plunger pump
	Maximum discharge flow	2X218 L/min
	Control circuit	3.9 MPa
	Travel circuit	31.9 MPa
	Swing circuit	25.5 MPa
Travel System	Travel motor	Variable axial piston motor
	Travel brakes	Lubricated double-disc
	Parking brake	Pressure release
	Travel shoes	2 x49
	Travel speed	3.2/4.7 km/h
	Drawbar pulling force	203kN
	Gradeability	70%
	Minimum ground clearance	466 mm
Oil Capacity	Fuel tank	330 L
	Cooling system	28 L
	Engine oil	20 L
	Hydraulic oil tank	270L
	System capacity	400L
Swing System	Brake	Pressure Release Mechanical Braking
	Swing speed	10.2 rpm
	Tail swing radius	2925 mm
	Arm digging force	92.5 KN
	Bucket digging force	127KN
Bucket	Bucket capacity	Backhoe bucket 1.05 m3 (SAE)
	Number of bucket teeth	5
	Bucket width	1370 mm
	Arm length	2.925 m
	Maximum digging reach/ Maximum digging reach at ground level	9.865 m/9.685 m
	Maximum digging depth/height	6.515 m/10.075 m
	Maximum dumping height	7.165 m
	Minimum swing radius	2.97 m

Working Conditions
Packaging & Shipping
Why Choose Us
Company Profile
FAQ
1. Why should you buy from us not from other suppliers?We are a manufacturer and distributor of construction machinery with many years of experience in Asia, the Middle East, South America and Australia. We provide competitive price, service and transportation guarantee for all construction machinery.2. How can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment.3.What can you buy from us?Road Roller, Motor Grader, Excavator, Wheel/Crawler Loader, Bulldozer, Truck Crane, Dump Truck, Forklift.4. What services can we provide?Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;Accepted Payment Currency:USD,EUR,CNY;Accepted Payment Type: T/T,L/C,Western Union;Language Spoken:English,Chinese,French,Hindi.
