Column Type Dual Station 16t Water Soluble Wax Injection Machine for Investment Casting Equipment

Product Description

Product Description

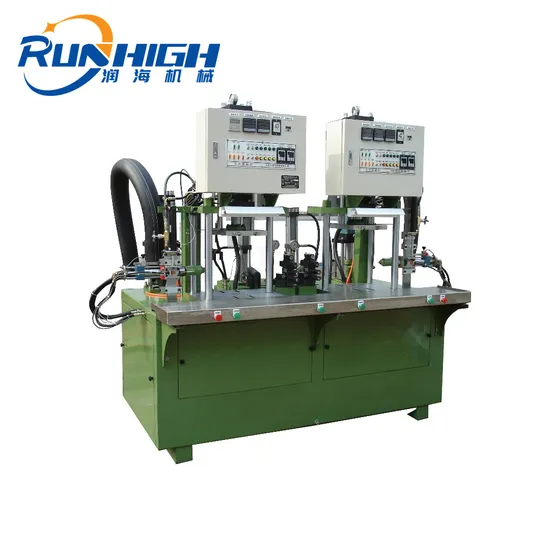

Column Type Dual Station 16T Water Soluble Wax Injection Machine for Investment Casting Equipment
1, The new type of cylinder free wax shooting machine is controlled by PLC circuit, the operation is more automatic, the stability is enhanced, the wax box with 80L volume saves the trouble of frequent cylinder change, and the single mode and double mode can work two molds of different sizes at the same time, which greatly improves the efficiency of work.
We main make customized production according to customer requirements:
1.Just tell us your own demands;
2.Designed according your requirements,send you drawing;
3.Modify a detail;
4.production according drawing;
5.Delivery on time;
6.Technical personnel guide the installation.
7.Any question we provide 24-hour service consultation.
8.Warranty for 24 months.
9.Free consultation for life
Equipment features:
1, two molds can work at the same time, one person to operate;
2, hand shot mouth up and down, around;
3, wax storage tank can be independent wax supply;
4, the output of each class can reach 800-1000 beams;
5, optional touch screen, safety light screen and automatic spray.

We also provide common Type for your reference:
Cylinder free wax press instructions Unit HMS-8

Closing pressure	T	8
Closing stroke	mm	380
Maximum space	mm	400
Minimum space	mm	20
Inside column dimension	mm	400
Platen width	mm	260
Platen depth	mm	360
Nozzle height adjustment	mm	150
Nozzle retraction adjustment	mm	100
Nozzle left and right adjustment	mm	900
Table height	mm	970
Mechanical dimensions	mm	2200×1470×2000
Wax storage tank capacity	L	80
Shot quantity	L	1.8
Injection pressure	Kg/cm²	10-100
Exit time	S	99.9
Nozzle aperture	mm	6
Hydraulic oil pump	Kg/cm²	20×140
Volumetric tank	L	120
Power supply specification	50Hz	220/380×3P
Heater power	KW	5
Mechanical weight	Kg	1850
Nozzle up and down		Cylinder up and down
