Basic Info.
Application
Liquid, Liquid with Suspended Solids, Viscous Fluid
Application Area
Daily Chemical
Cooling Method
Water Cooling
Heating Method
Steam/Electricity Heating
Main Material
Stainless Steel
Mixing Capacity
200-5000L(Customized Is Accepted)
Mixing Drum Shape
Frame Scraper
Machine Material
SUS304&SUS316L
Control
Button/ Touch Screen
Range of Spindle Speed
0-60 r.p.m
Thickness
2mm, 3mm, 4mm, 5mm, 6mm, 8mm etc. (Design Accordin
Jacket
Single Layer, Double Jacket, Three-Layer
Shape
Cylinder or Cone, Conical /Flat/Elliptical Bottom
Operating Type
Continuous Operating
Transport Package
Plywood Case Packing Suitable for Sea,Air Shipping
Specification
200-5000L(customized is accepted)
Product Description
Industrial Mixer Steel Electric Heating Liquid Mixer Liquid Soap Mixer Double Jacketed Mixing Tank Shampoo Mixing Machine Product Description

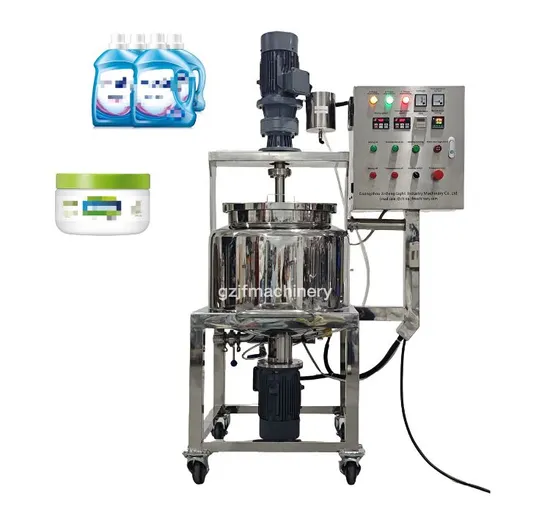

The machine adopts the design of mixing up and homogenizing down, and is welded by three layers of stainless steel. It can be heated by electricity or steam to accelerate material dissolution and shorten production time. Equipped with universal wheel, easy to move
Application
Mixing tank is common in the daily chemical industry, mainly producing shower gel, shampoo, dish soap, liquid soap and so on.
Product Parameters
Specification | Volume (L) | Blending Power (KW) | Blending rotation speed (r/min) | Homogenizing Power (KW) | Heating method |
PMC-200 | 200 | 1.5 | 0~65 | 3 | Steam Heating or Electric heating |
PMC-500 | 500 | 2.2 | 0~65 | 4 |
PMC-1000 | 1000 | 2.2 - 4 | 0~65 | 7.5 |
PMC-1500 | 1500 | 4 - 5.5 | 0~65 | 11 |
PMC-2000 | 2000 | 5.5 | 0~53 | 11 |
PMC-3000 | 3000 | 7.5 | 0~53 | 15 |
PMC-5000 | 5000 | 11 | 0~53 | 22 |
Note: In case of nonconformity of the data in the table due to technical improvement or customization, the real objects shall prevail. Product Details
Optional
https://gzjfmachinery.en.made-in-china.com/contact-info.html
Certifications
FAQ
Packaging & Shipping
1.Package:PE film cover inside and then plywood case.
2.Accept terms:EXW,FOB,C&F,CIF,etc.
3.Shipping by Express,Air or Sea based on customers' requirements and lowest cost solution.
