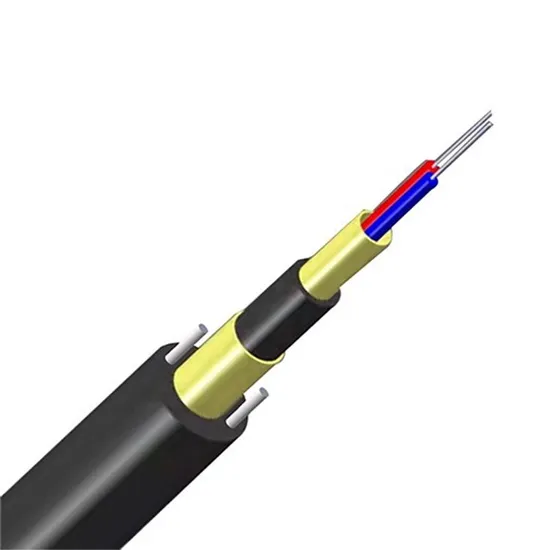

Kexint ADSS Gyxftw Aramid Yarn FRP Fiber Optic Armoured Central Tube Cable

Product Description

Products Description
Advantages of neutral bundled tube ADSS optical cable: 1. Compared with the traditional ADSS optical cable, the optical cable has a central bundle tube structure, and the structure is simple. 2. The outer diameter of the optical cable is small (the same number of cores), the optical cable is light, and the construction cost is low. 3. The production process is simple and the material used is less, so the price of the optical cable is low. Product Description: 1.Good mechanical property and environment property z Flame. 2.resistant performance. 3. Soft, agility, convenience for connection. Applications: 1. The manufacturing process of FRP + aramid fiber makes the optical cable have a good tensile capacity, which can be used in the construction c. nvironment of the optical cable with an overhead span of 50~150 meters. 2. The entire optical cable is made of non-metallic materials, will not conduct electricity, has lightning protection, and can be used in overhead. Cable description Optical fibers are positioned in a loose tube made of PBT. PE outer sheath. The tubes are filled with a water resistant filling compound. The tube is covered with FRP and aramid fiber as strength member. Fiber color

No.	1	2	3	4	5	6
Color	Blue	Orange	/	/	/	/

Tube color

No.	1
Color	Natural

Structure parameter

Item	Contents	Unit	Value
Fiber count	Number	/	1~12
Fiber	model	/	G657A2
Max.fibers per tube	Count	/	12
loose tube	diameter	mm	2.0
loose tube	thickness	mm	0.32
Strength member	Material 1	/	2*1.6/1.8/2.0/2.5 FRP
	Material 2	/	1670*3 Aramid fiber
Outer sheath	Color	/	Black
	Material	/	PE
Cable diameter	±5%	mm	8.5±0.1
Cable weight	±10%	kg/km	43.5

Mechanical & Environmental Performance

Item	Contents	Value
Max. tensile load	Short term	1300N
Max. crush resistance	Short term	2200N
Min. bending radius	Installation	15 x cable diameter
	Operation	10 x cable diameter
Temperature range	Operation	-20 ~ +70

Optical fiber

Item			Unit	Specification
						G. 657A2
Mode field diameter	1310nm	mm	9.2 ± 0.4
		1550nm	mm	10.4 ± 0.5
Cladding diameter			mm	125.0 ± 0.7
Cladding non-circularity			%	1.0
Core concentricity error			mm	0.5
Coating diameter			mm	242 ± 7
Coating/cladding concentricity error			mm	12
Cable cut-off wavelength			nm	1260
Attenuation Coefficient	1310nm	dB/km	0.35
		1550nm	dB/km	0.21
Macro-bend loss (1 turn, 10mm radius)	1550nm	dB/km	0.75
		1625nm	dB/km	1.5
Proof stress level			kpsi	≥100
