Basic Info.
Application Area
Agricultural Chemicals
Function
Wet Grinding/ Milling
Grinding Medium
Zirconia Beads
Applicable Industry
Coating, Paint, Ink, Pigment, Latex
Materials
Stainless Steel or Pure Zirconia
Operating type
Continuous Operating
Transport Package
Wooden Case
Specification
EDW-5L----EDW-100L
Production Capacity
200-2000L
Product Description

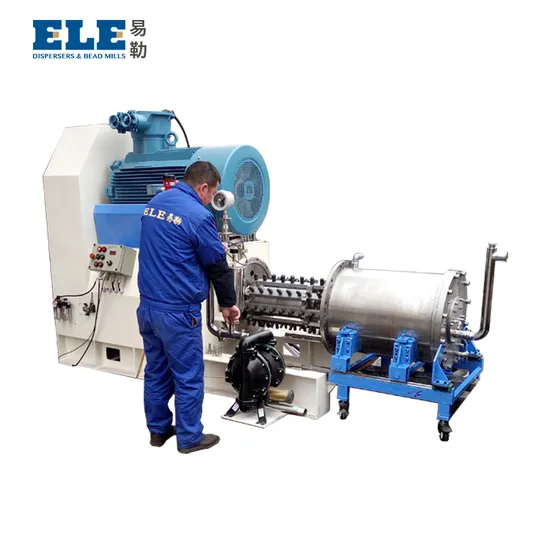

Super Fineness Bead Mill 100L Ink Sand Mill for Dye/pigment/pesticide SC Manufacturer
Model:EDW Series
Chamber volume:5/10/15/30/50/100L
Introduction:
It is widely used in the industry production of paint,color paste,printing ink,papermaking,adhesive,drugs,chemical industry etc.
To mix,dissolve,and disperse two or more kinds of liquids and solids.
Features:
Mechanical Seal:ELE adopt Cartridge Mechanical Seal, easy to install, with excellent sealing effect, much stronger, can withstand pressure above 10kg.
Centrifugal Separation Unit:ELE add a centrifugal separation unit after the discs, that makes the beads much well-distributed, so get narrow range of particle size and better fineness.
Efficient Discharging:Unique static tubular fence type seperation sieve with narrow gaps and large area, ensure the material discharging smoothly, meanwhile lessen the impact between beads and sieve, prolong the service life.
Technical Data:
Specifications:
Model | Chamber Volume (ml) | Main Power (kw) | Rotation Speed (rpm) | Capacity (L/h) | Dimension L*W*H (mm) | Weight (kg) |
EDW-5 | 5 | 7.5 | 1440 | 200 | 1300*1050*450 | 650 |
EDW-15 | 15 | 18.5 | 1440 | 500 | 1600*1450*650 | 1200 |
EDW-20 | 20 | 22 | 1260 | 800 | 1600*1450*650 | 1350 |
EDW-30 | 30 | 37 | 1260 | 1200 | 1650*1550*750 | 1700 |
EDW-40 | 40 | 45 | 980 | 1500 | 1750*1650*850 | 2100 |
EDW-50 | 50 | 55 | 980 | 2000 | 1900*1850*850 | 2300 |
EDW-100 | 100 | 110 | 860 | 3000 | 2300*2150*950 | 380 |
Detail Photos:
