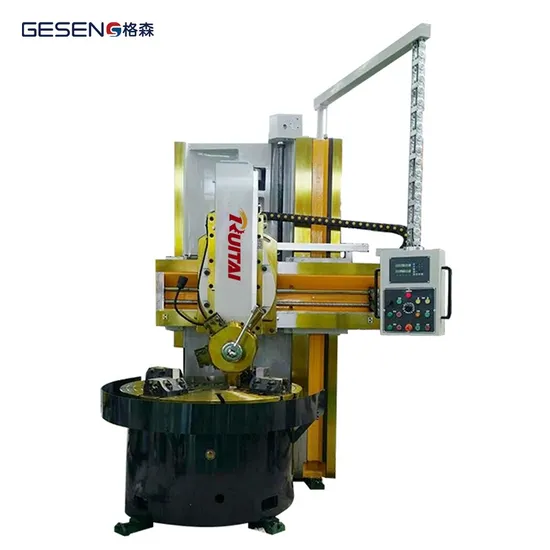

C5116 Cylinder Disc Turning Pentagonal Tool Manual Vertical Lathe

C5116 Cylinder Disc Turning Pentagonal Tool Manual Vertical Lathe

US$38,000.00-40,000.00 1 Set (MOQ)

Basic Info.

Model NO.
C5116
Type
Vertical Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Motor
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Precision
Certification
ISO 9001
Condition
New
Local Support
Local Support as Value-Added Services
Optional Configuration
Dro
Tool Post Type
Square RAM or Pentagonal Tool Post
Validity of Quotation
30days
Transport Package
in Wooden Case for Export Shipping
Specification
Single column vertical lathe
Trademark
GESEN
Origin
China
HS Code
84589900
Production Capacity
500sets/Year

Product Description

VERTICAL LATHE MANUAL
SINGLE COLUMN VERTICAL TURNING LATHE MANUAL
SINGLE COLUMN VERTICAL TURNING LATHE is suitable for:
1. High speed steel and hard alloy tools,
2. Processing all kinds of ferrous metal,
3. Non-ferrous metal and some non-metallic materials of the workpiece.

SINGLE COLUMN VERTICAL TURNING LATHE can do machining:
1. Finish roughing and fining the inner and outer cylindrical surface,
2. Inner and outer conical surface, flat surface, curved surface,
3. Grooving, threading and other processes
C5123 ram
C5112 ram C5116 pentagonal C5120 pentagonal
Parameters
Single column conventional vertical lathe
No. Items Unit C5112 C5116 C5120 C5123 C5126
1 Worktable diameter mm 1000 1400 1800 2000 2250
2 Max. turning diameter mm 1250 1600 2000 2300 2600
3 Max. turning height mm 1000 1200 1250 1350 1500
4 Max. Weight of work piece t 3.2 5 8 8 8
5 Worktable rotary speed grade grade 16 16 16 16 16
6 Range of table speeds r/min 6.3-200 5-160 4-125 3.2-100 2.5-80
7 Vertical tool post feed steps grade 12 12 12 12 12
8 Vertical tool post feed range mm/min 0.8-86 0.8-86 0.8-86 0.8-86 0.8-86
9 Horizontal stroke of vertical tool post mm 700 915 1110 1210 1265
10 Vertical stroke of vertical tool post mm 630 800 800 800 800
11 Main motor power kw 22 30 30 30 37
12 Machine weight (about) t 8.5 12 ~16 ~17 22

CUSTOMIZATION SERVICE
Professional machine design to meet various working demands.
Vertical tool rest/tool turret/working height/worktable/CNC or manual/color

Kindly contact us to get your vertical lathe machine tool.
