New Type Woodworking Machinery Automatic Wood Pallet Making Wood Pallet Nailing Machine

New Type Woodworking Machinery Automatic Wood Pallet Making Wood Pallet Nailing Machine

US$4,399.00-22,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
PT-1700 PT-3400 PT-1600 PT-3300 AWPN-1300
After-sales Service
24h Service
Function
Make Euro Pallet or Us Pallet or Other Types
Capacity
1-2PCS/Min
Color
Customized
Automatic Grade
Automatic Feeding and Stacking
Platen Surface Pressure
High Pressure
Work Mode
Continuous
Load
20gp Container
Operation Model
Touch Screen
Number of Nail Guns
3 or 4
Power
380V /240/415V or Customzed
Transport Package
Naked or Stretch Film
Specification
2750*2280*2500mm
Trademark
Sawmill-World
Origin
Shandong
HS Code
8465990000
Production Capacity
10set/Month

Product Description

Product Description

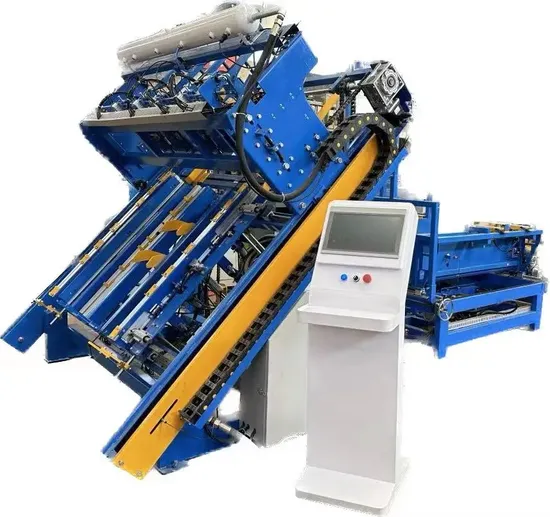

New type wood pallet production line euro wood pallet nailing machine with advance touch screen
Model AWPN-1300
Wood pallet length 600-1300mm
Wood pallet width 800-1300mm
Working mode Automatic feeding and stacking
Operation mode Touch screen
Operational mode Pneumatic operation
Voltage and power 2kw Servo motor
Air pressure 0.8MPA
Nail gun speed 7 times /second.
Production effciency 1-2pcs /min
Number of nail guns 3P or 4p
Weight 2000kg


New type wood pallet production line US wood pallet nailing machine with advance touch screen


A universal pneumatic nailing table, Pneumatico PT-1700 features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.
Pneumatico PT-1700 is an adjustable, semiautomatic pallet nailing table for pallets of different sizes. Its ergonomic construction allows fast and easy adjustment of the pallet template size. Widths may vary 800-1700 mm and the table supports lengths up to a maximum of 1300 mm. Only one operator is required to produce 210-230 pallets during a single 8 hour work shift.
The operator uses multiple nail guns for different sizes of nails. Each of the nail guns is suspended on an overhead roller track for operator convenience. The roller track allows the nail guns to move freely along the rail mounting system overhead. The design of the table guarantees production efficiency as well as operator's comfort.
External dimensions

Easy to use One operator can build 210-230 pallets within 8 hours.Compact design Total footprint 3.3 m² (35.5 ft²) Universal Adjustable worktop allows production of:Pallets on 2, 3, 4, or 5 stringers.Efficient Quickly switch to any size pallet
Pneumatic clamp Easily centers the blocks.Pneumatic lift Raises pallet to minimize operator lifting.Overhead roller track Nail guns can move freely during work.Bottom template Template to build pallet legs.Adjustable steel clinch plates Galvanized and hardened steel plates for clinching nails.Unique Diagonal table adjustment reduces work by 50% Only 2 Allen keys required to adjust the table Detailed Photos

15inch big touch screen
Set the pinning configuration
Automatic continuous nailing
Nails Gun
Company Profile
Shandong Shuanghuan Machinery Co.,Ltd.is one of the world's leading manufacturers of high quality sawmills.Established in 1988,the company has always been committed to the production and R&D of swmills and sincerely serves 11,000 enterprises.Our products have been exported to 61 countries in the world.The company's registered brand"SAWMILL-WORLD" including horizontal band sawmill,vertical band sawmill and chain swmill and so on.With the sandarization of quality management and service,it has won the favor of many customers

Our Advantages
1.more than 30 years manufacturing experience2.Exported more than 70 countries all over the world
3.24h-after service at any time4.14 years of experience in foreign trade exports,rich machine production experience

If you want to know more details and best price,please click send message for me !
