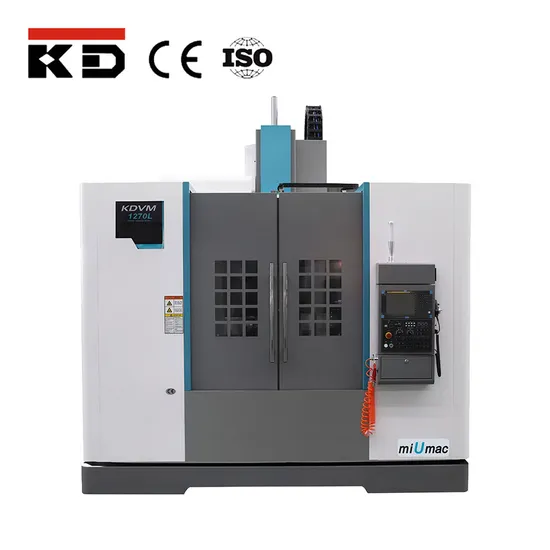

Heavy Duty Vertical CNC Milling Machine - X: 1100mm Y: 600mm Z: 600mm
| US$39,000.00-41,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
KDVM1270L
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
X Travel
1200mm
Y Travel
700mm
Z Travel
850mm
Spindle
Bt50
Spindle Speed
6000rpm
Main Motor
15/18.5kw
Transport Package
Wooden Pallets(Ht)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
84571010
Production Capacity
523
Product Description
Technical Specifications
| MODELS | KDVM1160L | KDVM1270L | KDVM1370L |
| TRAVEL | |||
| Table travel (X axis) | 1100mm | 1200mm | 1300mm |
| Saddle travel (Y axis) | 600mm | 700mm | 700mm |
| Spindle travel (Z axis) | 600mm | 700mm | 700mm |
| Spindle center to column | 650mm | 762mm | 762mm |
| Spindle end to table | 120-720mm | 150-850mm | 150-850mm |
| TABLE | |||
| Tablesize | 600×1200mm | 700×1400mm | 700×1500mm |
| T-slot(width×number×space) | 18×5×100mm | 18×5×125mm | 18×5×125mm |
| Max.table loading | 800kg | 900kg | 1000kg |
| SPINDLE | |||
| Taper bore of spindle | BT40 | BT40 | BT40 |
| Spindle power | 11/15kw | 11/15kw | 15/18.5kw |
| Spindle speed | 8000rpm | 8000rpm | 8000rpm |
| FEED | |||
| X/Y/Z axis fast feed | 36/ 36/ 30m/min | 36/ 36/ 30m/min | 24/ 24/ 20m/min |
| X/Y/Z axis fast feed | 20/20/20Nm | 20/20/20Nm | 27/27/27Nm |
| ATC | |||
| Tool number | Bt40/24 tools | Bt40/24 tools | Bt40/24 tools |
| ACCURACY | |||
| Repeatability(X/Y/Z)(ISO) | ≤0.006/≤0.005/≤0.005mm | ≤0.006/≤0.005/≤0.005mm | ≤0.008/≤0.006/≤0.006mm |
| OTHERS | |||
| Overall dimension (LxWxH) (with chip conveyor ) | 4400x2550x2600mm | 4670x2830x3200mm | 4670x2830x3200mm |
| Net weight | 6400kg | 8500kg | 9500kg |
The descriptions, illustrations and specifications given herein are subject to alteration without notice and thus without any obligation.
| STANDARD DEVICES OR ACCESSORIES | |||
| ITEMS | REMARK | ||
| 1. CNC system | FANUC 0i MF(5) | ||
| 2. Servo motor of X axis | FANUC | ||
| 3. Servo motor of Y axis | FANUC | ||
| 4. Servo motor of Z axis | FANUC | ||
| 5. Spindle motor | FANUC | ||
| 6. Spindle unit | Taiwan brand | ||
| 7. Air-oil power cylinder | Taiwan brand | ||
| 8. Tool magazine with 24 tool capacity | Taiwan brand | ||
| 9. Horizontal type tool magazine | Taiwan brand | ||
| 10. Ball screw bearing | Japan brand | ||
| 11. Linear guide | Taiwan brand | ||
| 12. Ball screw of X,Y,Z axis | Taiwan brand | ||
| 13. Pneumatic components | Taiwan brand | ||
| 14. Main low-voltage electrical components | German brand | ||
| 15. Telescopic cover of X,Y,Z axis | Taiwan brand | ||
| 16. Coolant pump | Taiwan brand | ||
| 17. Totally sealed guard | China brand | ||
| 18. Tool box including: | |||
| 1) Open ended wrench | 8-10, 12-14, 17-19 | ||
| 2) Hex socket wrench | 3, 4, 5, 6, 8, 10, 12 | ||
| 3) Flat screw driver | 5" | ||
| 4) Cross screw driver | 5" | ||
| 5) Flying ring | M24 | ||
| 6) Pads | |||
| 7) Operation munal | |||
| 8) Test record | |||
| The descriptions, illustrations and specifications given herein are subject to alteration without notice and thus without any obligation. | |||
