Polyester Belt Spiral Dryer Fabric for Paper Machine

Product Description

We are a professional manufacturer of Forming fabric , Press felt ,Spiral dryer fabric ,Flat woven dryer fabric ,Round woven dryer fabric,SS wire mesh ,Conveyor belt and industrial fabrics .
Product Description

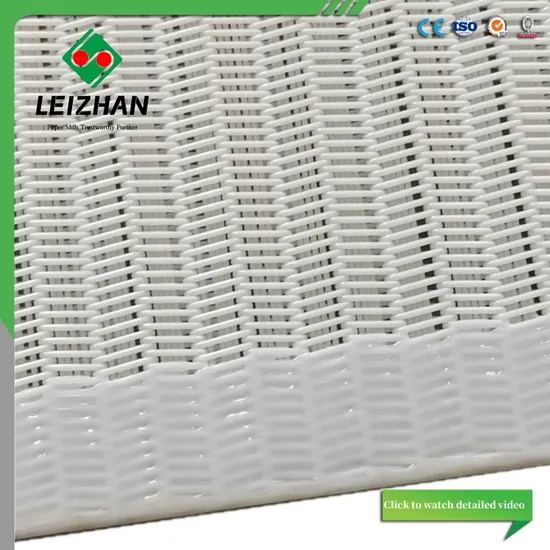

Polyester spiral dryer screen is made of polyester monofilament wound into the spiral loop, and the spiral loops are connected together with weft seams to form a spiral mesh. The spiral mesh has a smooth surface, good air permeability, high temperature resistance, and with own interface. It is widely used in the dryer section of paper machine, the production of composite fabrics, the drying and conveying of food and medicine. The spiral dryer screen effectively guarantees the continuous production of modern industrial equipment and greatly improves production efficiency.
Product Parameters

Polyester Spiral Dryer Screen
Type	Spiral loop width (mm)	Filament diameter mm		Tensile strength N/cm	Weight Kg/m2	Thickness mm	Air permeability M3/m2h	CFM 127/pa
		Spiral ring monofilament (mm)	Connection wire (mm)
Small Loop	5-5.2	0.50	0.80	1800	1.00	2.10	15000	937
Medium Loop	8	0.68	0.90	2000	1.31	2.45	18000	1125
	7.15	0.68	0.90	2000	1.40	2.45	16000	1000
	7.5	0.7	0.90	2200	1.45	2.60	16500	1031
	7.2	0.7	1.00	2200	1.50	2.45	16800	1050
Large Loop	8	0.90	0.90	2300	1.80	3.03	19000	1188
	10	0.90	1.10	2300	1.65	3.15	20000	1250
	9.15	1.00	1.00	2000	2.0	3.35	17000	1060
	12	1.20	1.30	2600	2.35	4.30	22000	1375
Small Loop Red Color	5	0.62/0.30 [flat wires]	0.80	1600	0.90	1.90	13000	820
Large Loop Red Color	8	0.90/0.60 [flat wires]	0.90	1800	1.60	2.80	17000	1060
HTR-01 [Heat-resisting]	6.48	0.90	0.90	2000	1.90	3.30	14000	875
HTR-02 [Heat-resisting]	8.30	0.90	0.90	2000	1.74	3.50	19000	1188

Our Advantages
1.Has the acid and alkali resistance, wear resistance, high temperature resistant, long service life
2.With smooth surface, the tensile strength, permeability is good.
3. According to user requirements in filling in the grid round wire (2 to 5) (a) or black flat silk, adjust at porosity, meet the process requirements.
4.Carbon fiber through internal fill to achieve antistatic effect, with high temperature resistance, wear resistance, etc
5.Size length can be cut, and thus solve the problem of the influence because of the size is not accurate to use.
6.Install easy to use, interface without imprint Detailed Photos
