Wet Spray Trolley and Mining Shotcrete: Adaptable to Conditions

Wet Spray Trolley and Mining Shotcrete: Adaptable to Conditions

US$1.00 1 Piece (MOQ)

Basic Info.

Model NO.
UPS-20J
Type
Shotcrete
Shotcrete Type
Wet
Machining Process
Hydraulic
Productivity
50m²/h
Certification
ISO9001: 2000, CE
Condition
New
Self-Weight
12.5t
Operating Mode
Electric System + Diesel Engine Emergency Respons
Operating Range (W × H)
15×8.5m
Maximum Shotcreting Volume
20m³/H
Control Mode
The Boom Adopts Wireless Remote Control
Chassis Model
Self-Made Engineering Vehicle Chassis
Power
110kw
Wheelbase
3540mm
Maximum Travel Speed
17km/H
Maximum Gradeability
25°
Minimum Outer Turning Radius
6301mm
Minimum Inside Turning Radius
3768 mm
Minimum Ground Clearance
408mm
Structural Form of Boom
Three-Section Arm Two-Stage Telescopic
Transport Package
Nothing
Specification
7830× 2000× 2520mm
Trademark
LANHI
Origin
China

Product Description

Product Description

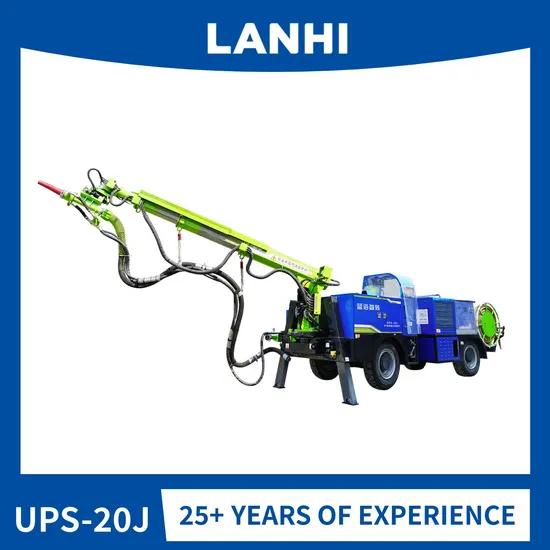

The UPS-20J Our mining shotcrete truck, the UPS-20J, is a sophisticated piece of machinery specifically designed and meticulously upgraded based on pioneering concrete shotcreting technology and the demanding construction conditions of domestic mines. With an impressive maximum shotcreting volume of 20m³/h, this equipment excels in wet shotcreting tasks, ideal for reinforcing concrete in underground mines or small to medium-sized subterranean projects. Noteworthy for its substantial shotcreting capacity, assured pipe blockage resistance, minimal rebound, and consistent reliable performance, the UPS-20J sets a new standard in the industry.
Designed for versatility, it features a dual system that runs on both diesel and electric power. This ensures seamless construction operations under normal conditions and a reliable diesel-powered backup for emergency scenarios, preserving uninterrupted workflow.
Engineered for maneuverability, the UPS-20J boasts a compact turning radius, making it exceptionally adept at navigating and operating within confined spaces.
With a peak shotcreting volume of 20m³/h, the UPS-20J demonstrates outstanding shotcreting efficiency and robust pipe blockage resistance.
The entire machine structure has been meticulously optimized and upgraded, resulting in a low failure rate, high compatibility with various accessories and consumables, and minimal operational costs.
Control the UPS-20J with ease using its wireless remote system, which allows for precise maneuvering of the mechanical arm. This ensures operations are conducted swiftly, efficiently, safely, and with significant energy savings.
Equipped with a substantial 400L accelerator tank, the UPS-20J is fully capable of meeting the demanding construction volume requirements of larger sections.
Product Parameters
Max mumoveralldimension(L×W×H) 7830×2000×2520mm
Self-weight 12.5t
Operatingmode Electric system + diesel engine emergency response system
Operatingrange(W×H) 15×8.5m
Maximumshotcretingvolume 20m³/h
Controlmode The boom adopts wireless remote control
Chassis model Self-made engineering vehicle chassis
Engine Cum mins
Power 110kW
Wheelbase 3540mm
Maximum travel speed 17km/h
Maximum gradeability 25°
Minimum outer turning radius 6301mm
Minimum inside turning radius 3768 mm
Minimum ground clearance 408mm
Structural form of boom Three-section arm two-stage telescopic
Maximum spray height 8.5m
Maximum spray width 2×7.5m
Boom pitch angle -30°~+50°
Boom slewing angle 0~270°
Axial rotation of spray nozzle seat 360°
Axial swing of spray nozzle seat 240°
Deflection angle brushing of spray nozzle 8° ×360° continuous
Total motor power 45kW
Number of cylinders 2
Cylinder (cylinder diameter X stroke) 90mm×800mm
Concrete cylinder (cylinder diameter × stroke) 160mm×800mm
Pumping line 125-80 reducer pipe
Maximum size of sprayed aggregate 25mm
Maximum pumping volume 20m³/h
Hopper capacity 0.35m³
Material receiving height 1310mm
Air compressor displacement 10.5m³/min,45kW
Working pressure of air compressor 0.7MPa
Admixture system displacement 620L/h
Admixture system pressure 1MPa
Volume of accelerator tank 400L

Detailed Photos
FAQ
1,What can you buy from us?
Our current main products include comprehensive solutions for underground engineering machinery and intelligent mining equipment. This includes tunnel boring machines, integrated arch anchoring and spraying trolleys, arch anchoring trolleys, integrated arch drilling trolleys, arch frame installation trolleys, wet spraying rigs, and rock drilling rigs. We have the capacity to provide customers with integrated total solution services.
2,What about the MOQ?
The Minimum Order Quantity (MOQ) is 1 set.
3,What payment terms do you accept?
We accept T/T with a 50% prepayment.
4,What about the order lead time?
The usual lead time is 15 days.
5,What logistics methods can you use for shipment?
Truck delivery can be arranged in Central Asia and Russia, and you can also choose rail and sea shipping.
6,How is your delivery time?
The delivery time via China-Europe trains is 15 to 20 days, while sea shipping takes approximately 2 to 3 months.
7,How about your customer service and after-sales service?
We offer 24/7 online support and provide after-sales support in Russia and Central Asia.
