US$4,000.00-6,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Technical Class
Continuous Wave Laser
Applicable Material
Nonmetal
Structure Type
Gantry Type
Laser Classification
CO2 Laser
Laser Technology
CO2 Laser
Control System
Rd6442s Controller
Laser Tube
Reci CO2 Laser Tube
Laser Power
60W 80W 100W 130W 150W 180W
Guide Rail
Taiwan Hiwin Linear Rail
Transmission Way
Belt Driver
Water Chiller
Cw3000, Cw5000, Cw5200
Lens and Mirror
Singapore Lens & Mirrors
Transport Package
Export Plywood Case
Specification
1400 *900mm
Production Capacity
100 Sets/Month
Product Description

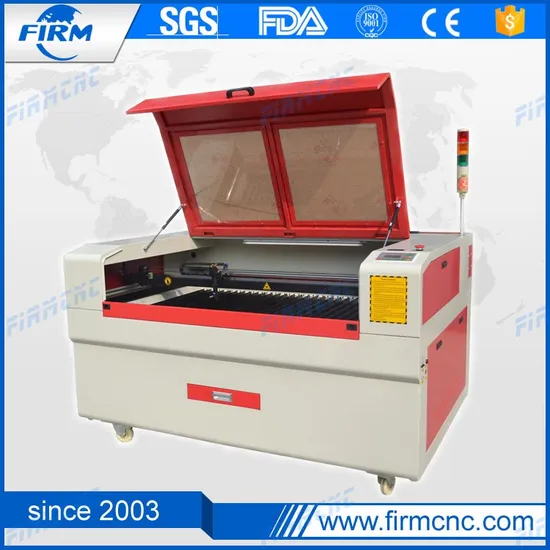

Wood Acrylic CNC Laser Engraving Cutting Machine Laser Cut Machines
we have different models laser machine.
such as FMJ4060,FMJ1260,FMJ1290,FMJ1390,FMJ1490,FMJ1325,etc.
equipped with reci laser tube, high precision belt driver, HIWIN gudie rial, water chiller etc.
all parts are in excellent quality.
Features
1.New design, High quality with competitive price.
2.Red light positioning, help find the work point, protect workers and improve work efficiency.
3. Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
4. Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
5. Special Front and back running-through design, the unique door for the limitless engraved materials through.
6. Professional Honeycomb or Strip work table, which meet the needs of diversified laser procession;
7. Water Cooling System with Alarm Protection, adopt CW-3000 Water Chiller with temperature display,
which can avoid over burning, to protect the water circulation from electricity-off.
8. Equipped with luxury Consumables, Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube,
Reci Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
9. High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision,
engrave 1×1mm little English character perfect.
10. Optional Motorized up-down work table with Auto Focus Function, very good for precise focusing and different cutting depth requirement for lots of material;
11. Optional 3D Rotary System, engrave circumrotately 360 degree, applicable in column or cone work piece surface.
to protect the laser tube.
Technical specification
Model | FMJ1490 |
Working area | 1400* 900mm |
Laser tube power | 60W 80W 100W 120W 130W 150W |
Laser Type | CO2 sealed laser tube |
Engraving Speed | 0-64000mm/min |
Cutting Speed | 0-36000mm/min |
Resetting positioning accuracy | ≤±0.01mm |
Laser Output | 1-100% software setting |
Cooling mode | Circulating-water-cooling and protection system |
Machine control and drive | Speedy DSP controlling, stepper motor |
Cutting Platform | knife-strip platform |
Min. shaping character | Character2.0mm×2.0mm,English1.0mm×1.0mm |
Power Supply | AC220V 50HZ |
Operating system | DSP off-line control system |
Dictate format | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las etc. |
Operating Temperature | 5°C-40°C |
Operating Humidity | 5-95%(Free of Condensed Water) |
Compatible Software | CorelDraw ,AutoCAD transmit directly |
Optional Spare Parts | Rotary system, Industrial Chiller, Infrared Locating System, Laser Tube, Up-down clump |
Recommended Spare Parts | Laser Tube |
Main parts
Ruida control panel (optional Leetro control)
RECI co2 laser tube
Applications
Applicable Materials: wood, acrylic, organic glass, crystal, fabric, paper, leather, rubber, ceramic, and other non-metal materious,plastic,
cloth toys,leather ,computer embroidery cutting ,mould ,crafts ,bamboo and wood ,advertising and building decoration ,packaging and printing ,paper products.
Typical Application: Acrylic crystal words,acrylic fish tank,ceramic crafts,rubber board printing,applique,special-shaped trademark,
engraving and hollowing out patterns or designs on garment and leather
Other related laser machines for metal and nonmetal materials
# Standard co2 laser machine
# Fabric Leather laser cutting machine
# Mini laser machine
# FMJ1325 laser engraving cutting machine
# Metal laser cutting machine
Our Services
1. 24 hour Technical support by phone, e-mail or MSN around the clock.
2. Friendly English version manual and operation video CD disk.
3.7-15 working days after down payment or full payment.
4. Machine will be adjusted before it is delivered; operation disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN) if you have any question.
6. Engineers available to service machinery overseas, seller and buyer discuss the charges.
Packaging & Shipping
1. Water-proof plastic film package with foam protection in each corner.
2. Solid Seaworthy Wood Box Package with Steel Belt.
3. Save space as much as possible for container loading.
