US$1.25-2.00
|
10 Pieces
(MOQ)
|
Basic Info.
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.02~0.03(mm)
Performance Classification
Mid-Range CNC Machine Tools
Feed Speed mm/Rev
0.1-0.2
Cuting Speed
600 - 1000m/Min
Transport Package
Plastic Boxes 10PCS/Box
Production Capacity
300000pieces/Year
Product Description
CCGT060204 Carbide Aluminium Inserts for Brass Copper non Ferrous Material with perfect Surface
Product Description
Specification | CCGT060202 CCGT060204 CCGT060208 |
Grade | X915 |
Coating | uncoated |
Chip breaker | AK/LH |
MOQ | 20pcs |
Delivery time | 15-30days after payment |
Free Samples | Available if there is stock |
C - quadrilateral shape of turnining insert - rhombic (80°)
C - Insert with clearance under main cutting edge (7°)
G - Tolerances and dimensions of carbide turning insert
T - Hole through insert and single sided chipbreaker
06 - Length of cutting edge 6,5mm
02 - Height (thickness) of insert 2.38mm (from bottom of the insert to the top of the cutting edge)
04 - Nose radius R0.4
AK/LH - ISO Grade N01-N10 - The type of carbide grade and the coating on inserts is originally intended for turning aluminum, non ferrous (aluminum alloy, copper, wood, glass fiber, carbon fiber reinforced plastic and other nonferrous metals and alloys) Material: ISO grade carbide (tungsten):For aluminum N01-10 (best against wear resistance) (See ISO grade tables.) Feed speed mm/rev - 0.1-0.2 Cut depth - 0.3mm - 1.5mm Cuting speed - 600 - 1000m/min Turning insert feature: Very strong cutting edges reliability and long endurance. Geometry of CCGT turning insert is shaped for special aluminum turning with smooth surfaces, short cutting distances (lot of times in hole).
Inserts are polished to prevent sticking cut of material and easy seperation of material out of processing area. Corrosion resistance high brightness Recommended for different purposes and applications.

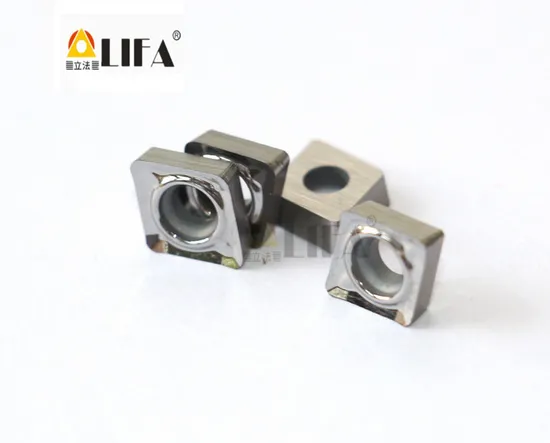

Product show
Our advantage
1. Specialist in cemented carbide inserts since 1989.
2. Factory price with 100% raw material quality
3. Free sample available for your testing.
4. Special size inserts can be customized.
Our company
Founded in 1989, Zhuzhou Lifa Cemented Carbide Industrial CO.,LTD, is a professional manufacturer of cemented carbide cutting tools. Xinhua specializes in research and development, manufacture and sales of cemented carbide cutting tools including turning inserts, milling inserts, Aluminum inserts and cermet inserts.
The company are in stable development with German equipments and experienced technician experts. Our company is committed to provide super quality products for domestic and over seas customers.
Our workshop
Packing & Delivery
Packing Details: Plastic box inside, outside is carton.
Delivery Details: Xinhua has built very good relationship with those international logistics companies, such as DHL, TNT, UPS,etc. We got favorable price and priority service.
Exhibition
