Sign 1300X2500mm Woodworking 1325 Advertising Wood CNC Router for Furniture Marking

Sign 1300X2500mm Woodworking 1325 Advertising Wood CNC Router for Furniture Marking

US$5,000.00
1-4 Sets
US$4,800.00
5-9 Sets
US$4,700.00
10+ Sets

Basic Info.

Model NO.
A2-1325-Pro
Condition
New
Certification
CE, FDA
CNC or Not
CNC
Voltage
380V
Inverter
Folinn 11kw High Frequency Inverter
Control System
DSP B11
Optional Parts
Vacuum Table and Dust Collector
Drive Motors
750W AC Servo Motor and Driver
Guide Rails
High Precision 25mm Square Guide Rails
Working Table
T-Slot
Spindle
9kw Air Cooling Spindle
Reducer
Japanese Shimpo Planetary Reducer
Guide Rail
25mm Square Guide Rail
Software
Artcam with Post Processor
Transport Package
Wooden Box
Specification
3.15*2.00*1.76m
Trademark
SIGN-CNC
Origin
China
HS Code
84659900
Production Capacity
50set/Month

Product Description

Product Description

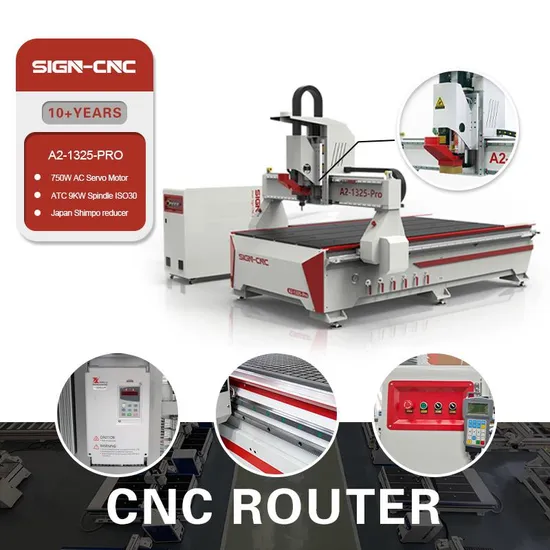

SIGN 1300x2500mm woodworking 1325 advertising wood cnc router machines for furniture
Application
Advertising industry: advertising signs, logo making, acrylic cutting, plastic molding, a variety of materials advertising the production of decorative products.Woodworking: Furniture production, three-dimensional wave board processing, cabinet doors, solid wood doors, wooden craft, paint doors, screens, craft fan window processing, shoe polisher, game cabinets and panels, mahjong table, computer desk and furniture products, auxiliary processing .Mold Industry: engraving copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wood and other non-metallic mold.Other Industry: a variety of large-scale relief sculpture, shadow carving, widely used in the craft industry
Technical Parameters
Model A2-1325-Pro
X, Y Working size 1300*2500mm
Z feed Height 300mm
Table Surface Aluminum profile T-slot table with PVC protection
X, Y Structure Helical rack and high precision 25mm Square Guide Rail
Z Structure High precision 25mm Square Guide Rail and Ball Screw
Max. Power Consumption (Without spindle) 3.0Kw
Max. Rapid Travel Rate 35000mm/min

Max. Working Speed 20000mm/min
Spindle Power HQD 9KW Air-cooled spindle
Spindle Speed 0-24000RPM
Drive Motors 750w AC servo motor and driver
Inverter Folinn 11KW high frequency inverter
Working Voltage AC380V/50/60Hz
Reducer Japanese Shimpo planetary reducer
Command Language G code
Control System DSP B11
X,Y,Z repositioning Accuracy ±0.05mm

X,Y Resolution <0.05mm
Software Artcam with post processor
Running Temperature 0 degree - 45 degree
Relative Humidity 30% - 75%

Packaging & Shipping
FAQ
1. Q: How do you send your machine?
A: We can send our machines by sea, land and rail way, or we can send the machine to your doors.
2. Q: This is my first time to use this machine, is it easy to operate?
A: Machine operate is easy and we will send to you manual for system manual in English. And if you have question for use it we also can send to you video that show how to use machine.
