Domestic Waste Recycling Complete Machinery for Rigid Crushed PP Like Chairs, Crates, Household

Domestic Waste Recycling Complete Machinery for Rigid Crushed PP Like Chairs, Crates, Household

US$27,200.00-88,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SJ200-200
Material Processed
Plastic Flakes
Plastic Type
PE PP EVA
Screw
Single-Screw
Automation
Automation
Computerized
Computerized
Certification
CE, SGS
Capacity
150-800kg/H
Application
PP PE Plastic Flakes
L/D
28-10
Pelletizing Way
Pull Strap
Extruder
Double-Stage
Degassing
Two(One Vacuum, One Nature)
Screw and Barrel
38crmoala, Nitrogen, Bimetallic
Heater
Cast Al
Deliverying Time
45 Working Days
Motor
Siemens
Speed Control
by Inverter
Transport Package
Film Packing and Wood Case or Wood Base
Specification
Pellets size: 2.5*3 mm
Trademark
JORBIN
Origin
Zhangjiagang City
HS Code
84772010
Production Capacity
10sets/Year

Product Description

Brand Jorbin
Origin Zhangjiagang City/Jiangsu Province/China

Domestic waste recycling complete machinery for Rigid crushed pp like chairs, crates, household

SJ series single screw single stage/double stage extruder is mainly composed of screw and barrel ,momentum driving system,heating,cooling and electric controllers etc.It is mainly used in plasticizing and extruding of PE,PP,EVA,CPP,BOPP,PS,EPS,ABS,PA,PLApipes,plates,sheets,profiles,chips,granulates and other plastic products.
Features
1. Low energy consumption and high output;
2. Practical and reliable;
3. Water recycling, green and environmental protection;
4. Working 24 hours a day, greatly improving production efficiency;
5. The program has a high degree of automation, simple operation and stable performance;
6. Adapt to a wider range of materials;
7. Frequency conversion control;
High quality Plastic pelletizer machine
Raw material: PE PE EVA CPP BOPP PS EPS ABS PA PLA rigid plastic recycling material;
Output: 150-800kg/h;
screw:single screw;
Stage:single stage/double stage;
Cutting type: water-ring pelletizing system;
In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials, output size, capacity, etc.) and attach your contact information (such as phone number, e-mail, facebook, whatsapp, wechat, etc.)
- Product Parameter -
Recycling material of this machine
Material PE, HDPE, LDPE, LLDPE, PP, CPP, BOPP, EPS etc.
Shape pipes,plates,sheets,profiles,Raffia,Foam, chips
Type Loose, Bundle, Roll, Scrap
Origin Off cut, agglomerator film, In house waste, Regrind

Can be customized
The main design output is between 100 ~ 800kg / h, according to the different needs of customers to determine the yield.
Single stage L/D Capacity Motor Double Stage L/D Capacity Single Stage
Motor
Second Stage
Motor
SJ85 SJ85-85
SJ90 SJ90-90
SJ100 100mm 150-200kg/h 45/55kw SJ100-100 28-10 150-200kg/h 45/55kw 22kw
SJ110 SJ110-110
SJ120 120mm 300kg/h 75kw SJ120-120 28-10 300kg/h 75kw 22kw
SJ130 130mm 300-400kg/h 110kw SJ130-130 28-10 300-400kg/h 110kw 45kw
SJ140 SJ140-140
SJ150 150mm 450-500kg/h 132kw SJ150-150 28-10 450-500kg/h 132kw 55kw
SJ160 160mm 500-550kg/h 160kw SJ160-160 28-10 500-550kg/h 160kw 55kw
SJ170 SJ170-170
SJ180 180mm 800kg/h 180kw SJ180-180 28-10 800kg/h 180kw 75kw

- Product Information -

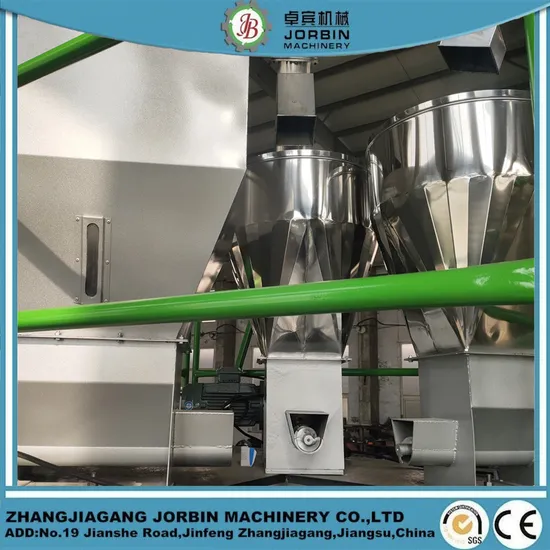

1,Rotary charger&Hopper:
Function: Feeding the materials into hopper(feeder)by rotary charger,then after platicizing,feed the material into the extruder equally.
features:
Speed possible controlled by inverter;
There is sight glass on the hopper(feeder),so that the material can be seen how much is in the hopper;
The material of rotary charger and hopper is SS304;
2,Feeders(the machine with 3 feeders, can feed 3 kinds of material separable):
Function: Feeding the materials into extruder,equally.
features:
Speed possible controlled by inverter;
There is sight glass on the hopper(feeder),so that the material can be seen how much is in the hopper;
The material of rotary charger and hopper is SS304;
3,Extruder:
This machine uses a single screw double stage;
Function: Material come from the first stage into the second stage through the die, extruding, plasticizing, and heating different materials in order to make the materials come out of the mold more stable, which can determine the production capacity of the entire machine;
Gear box:high torque,low noise,external connect with cooling recycling system;Hard teeth face reducer;
The advantages of twin stage machine:
1. two screen changers can filter more impurity, the pressure can be reduced;
2. the capacity can be improved;
3. Material come out from the die will be much more stable, won't be broken down;
4,Hydraulic screen changer between the first and second stage, and then material come down directly into the second stage
features:
Double positions hydraulic screen changing system, screen net 200mm, different kinds of screen changer can meet different material's required
No material leaking
5,Second stage Extruder:
Second stage extruder to do mateiral again, so that the material come out will be much clean can better;
Function: Material come from the first stage into the second stage through the die, extruding, plasticizing, and heating different materials in order to make the materials come out of the mold more stable, which can determine the production capacity of the entire machine;
Gear box:high torque,low noise,external connect with cooling recycling system;Hard teeth face reducer;
The advantages of twin stage machine:
1. two screen changers can filter more impurity, the pressure can be reduced;
2. the capacity can be improved;
3. Material come out from the die will be much more stable, won't be broken down;
6,Pelletizing unit
Water-ring pelletizing way:hot die cutter system to cut the material directly, and water will cool the pellets.
water tank:The water tank has the function of moving back and forth and lifting
There is a water level drain pipe in the water tank. When the temperature of the water in the water tank is too high, it is necessary to continuously inject cold water to keep the water cool, and the excess water is discharged from the water level pipe
7,Centrifugal dryer to dry the pellets
Material:bracket jointing by Q235,the others are stainless steel
Speed: 1500RPM
With the under water drainage function
Helix screw, shaking screen, dewatering frame where meet
8,Wind transmission system & electrical control box
Function:loading the material into the silo;
Wind transmission system:pipe line,tee joint T,silo are made by stainless steel;the bracket is made of carbon steel;
9,Electrical control box:
RKC Temperature controlling system and inverter control the belt conveyer, the speed of main machine and pelletizing system;
Display and protect the pressure of machine head;
Famous brand Contractor, DELIXI low pressure electric equipment,pressure sensor,etc;
American CRYDOM solid-state relay;
Supply the line which connect the main machine and cabinet;
Machine under producting -Our Company-
We are professional manufacturer.We have made the extruder machine with 10 years of strong experience.
Our Company is special in producting plastic recycling granulating machine and extrusion machine etc.In the field of plastic recycling, Jorbin Machinery can provide you with a series of high-quality recycling production lines for recycling various plastics.
At present,some of our products are in the factory,you are welcome to visit our factory anytime!
Our machine have been sold to all of the world like Russia, Poland, Dubai, Malysia, Taland, India, Mexico, Ecuador and so on.
Welcome to receive your inquiry!
We supply below necessary documents with the machine:
Machine layout Electricity diagram Machine certificate General manual book/maintenance book
