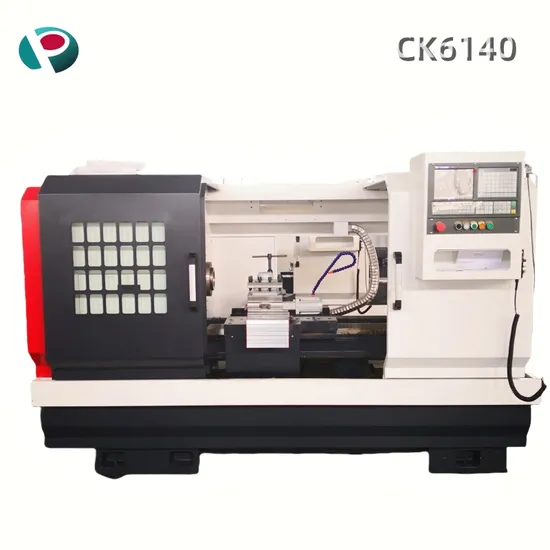

Ck6140 0.5/1/1.5/2/3m Hydraulic 3 Jaws Chuck and Tailstock Horizontal Flat Turning Lathe with Siemens/GSK/Fanuc System

Product Description

CNC Lathe Features
1. High strength of the base, widened pallet, suitable for strong turning
2. Four-station electric tool rest
3. Frequency conversion stepless speed regulation
4. Internal stress annealing process
5. High strength cast iron
CNC Lathe Technical Parameter:

Specifications	Unit	CK6140
Max.swing dia. over bed	mm	400
Max.swing dia. over slide	mm	240
Maximum turning diameter(disc type)	mm	400
Max.processing length	mm	550/750
Maximum turning length	mm	420/620(chuck)
Form and code of spindle end		A2-6/A2-8
Diameter of spindle through hole	Φ/mm	48/82
Spindle speed range	r/min	150-2500/150-1800
Spindle shift mode		Stepless speed changes
Motor power of spindle(continuous value)	KW	5.5
Chuck type		Chuck/manual chuck
Chuck size	Inch	8
X axis rapid traverse	m/min	6
Z axis rapid traverse	m/min	8
X axis servo motor torque	N.m	4
Z axis servo motor torque	N.m	6
X axis travel	mm	280
Z axis travel	mm	550/750
Guide way type		Hard guide way
Capacity of tool holder		4
The tool rest allows maximum tool cross section	mm*mm	20*20
Tail stock quill dia	Φ/mm	60
Tail stock quill travel	mm	100
Tail stock quill taper		MT4#
Total rated power	KW	8/10
Total rated current	A	17/21
Net weight	kg	1800/2200
Machine dimension(L*W*H)	L*W*H(mm)	2000/2200*1600*1700

1.Q: Which trade term I can choose?
A: You can choose FOB,FCA
2.Q: How can I get quotation from you?
A: You can make the inquiry online on made-in-china, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 24 hours on work days, and within 48 hours on holiday.
3.Q: how can I make the payment?
A: We can make the deal on made-in-china online platform, you can pay by T/T . You can also pay to my company business bank account.
5.Q:What is your delivery time ?
A:The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
We want to know:
Please tell us your specific purchasing requirements, so that we can make specific quotations.
