Basic Info.
Transport Package
Carton or Wooden Box
Production Capacity
1000 PCS/Month
Packaging & Delivery
Package Size
21.00cm * 16.00cm * 15.00cm
Package Gross Weight
3.000kg
Product Description
Portable PML permanent magnet lifter 100kg with weight 3kg Product Description
A lifting magnet is a type of permanent magnet capable of producing a stronger magnetic field than the normal magnet. This is because they are made of rare-earth metals and alloys such as ferrite. These lifting magnets find applications in various industries to lift metallic items or heavy objects.
Never move the lifting magnet and load over or close to personnel. Prohibit any personnel close to, stand or pass under the magnet. Always pay your close attention until the load has been landed. Never operate the lifting magnet at temperature greater than 148oF.
The PML series On/Off Permanent Rare Earth lift magnets can be used on flat or round surfaces. They offer faster load handling than using slings, wire, rope, or other lifting methods. Ideal for use in fab shops, machine shops or anywhere heavy steel objects need to be moved quickly.
Type | Rated Capacity (kg) | Max pulling Power(kg) | Dimension(mm) | Net weight (kg) |
L | B | R | H |
PML-100 | 100 | 250 | 135 | 63 | 75 | 160 | 3 |
PML-200 | 200 | 500 | 170 | 67 | 80 | 160 | 4 |
PML-300 | 300 | 900 | 180 | 92 | 94 | 215 | 10 |
PML-400 | 400 | 1000 | 180 | 92 | 94 | 215 | 11 |
PML-500 | 500 | 1500 | 240 | 120 | 115 | 240 | 20 |
PML-600 | 600 | 1500 | 240 | 120 | 115 | 240 | 22 |
PML-1000 | 1000 | 2500 | 300 | 136 | 138 | 270 | 35 |
PML-1500 | 1500 | 3750 | 340 | 150 | 140 | 270 | 45 |
PML-2000 | 2000 | 5000 | 390 | 160 | 168 | 368 | 65 |
PML-3000 | 3000 | 7500 | 480 | 160 | 168 | 368 | 82 |
PML-5000 | 5000 | 12500 | 570 | 230 | 235 | 490 | 200 |
Detailed Photos

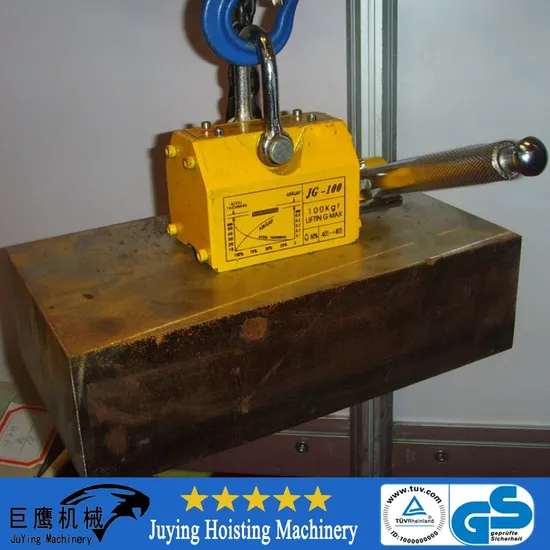

Real show
Contact
Company: Hebei Juying Hoisting Machinery Co.,Ltd.
Address: Donglv town, Qingyuan Block, Baoding City, China, 071100
