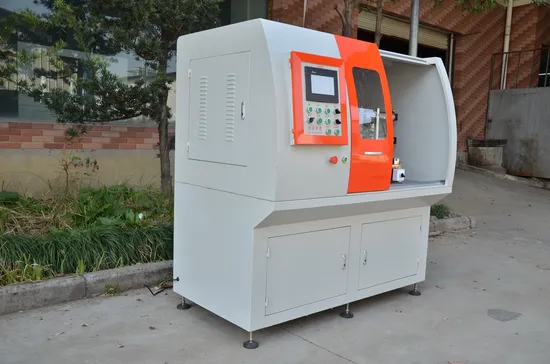

New Automatic Rubber Gasket Seal Washer Cutting Machine

New Automatic Rubber Gasket Seal Washer Cutting Machine

US$5,000.00-20,000.00 1 set (MOQ)

Basic Info.

Model NO.
JCM200-4
Certification
CE, ISO
Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Horizontal
Transport Package
Standard Export Wooden Case Package
Specification
JCM200-4
Trademark
Geekung
Origin
China
HS Code
847780
Production Capacity
1000 Sets/Year

Product Description

Product Description -Application:
Nylon Washer Cutting Machine is used for precise cutting of kinds of rubber&silicone gasket/ washer/ring-shaped tubular products, and other rubber&plastic&nylon gaskets.
-Features:
1. When the cutting finishes, materials take off automatically, and through the collection boxes to gather the cut products.
2.Our Nylon Washer Cutting Machine adopts vacuum pump, realizing powerful vacuum absorption of the pipe/tube, so ensuring the finished cut product more precise.
3. Automatic air blowing function makes loading and unloading more convenient, greatly improving the working efficiency.
4. The Nylon Washer Cutting Machine adopts PLC+HMI touch screen control, cutting parameters are set up from the HMI,cutting recipes are aumatically stored,easy to call, making the operation very easy.
5. All electrical components, pneumatic components are imported from abroad or domestic famous brand products, to ensure long-term use, reliability and stability of the new machine.
6. Use servo drive system to control the blades, compared with pneumatic control, servo control is more stable working and higher cutting precision.
Main technical data:
Model JCM200-1 JCM200-2 JCM200-4
Spindles (mandrels) 1 2 4
Cutting efficiency ≥60 times /min ≥ 120 times /min ≥200 times /min
Working rotation speed 0─3000rpm 0─3000rpm 0─3000rpm
Cut precision ≤±0.05 mm ≤±0.05 mm ≤±0.05 mm
Cut size Rubber diameter:ф10-150mm
(2)Cut length (standard):<=140mm;
Lengthened type<=350
(3)Rubber wall thickness:<=25mm
(1)Rubber diameter:
ф10─120mm
Cut length
(standard):<=140mm;
Lengthened type<=280
Rubber wall thickness:
<=25mm
(1)Rubber diameter:
ф10─120mm
Cut length
(standard):<=140mm;
Lengthened type<=280
Rubber wall thickness:
<=25mm
Specification of blade
blade:ф60*ф25.4x0.3
blade:ф60*ф25.4x0.3
blade:ф60*ф25.4x0.3
Compressed air 20L/min 30L/min 30L/min
Air pressure 0.5Mpa─0.8Mpa 0.5Mpa─0.8Mpa 0.5Mpa─0.8Mpa
Vacuum degree ≤-0.035Mpa ≤-0.035Mpa
Power source AC220V±5% AC220V±5% AC220V±5%
Packaging & Shipping The machine is packaged well by the stretch film first,and fixed professionally by the strong wooden case,ensuring the machine non damage during the long distance of land and sea transportation, and reach the clients factories safely.
After Sales Service 1. Professional and quick response to your questions within 24 hours. 2. We will communicate with our production dept. and keep you updated about production progress in time. 3. Customized manufacture available for you. 4. Fast delievery to save your time. 5. Good after sale service will eliminate your worry. 6. Long guarantee period of the quality will reduce your cost and trouble. 7. Professional wooden case packing and ocean shipping control to make your order safe and sound.
8. Full sets of technical documents, instruction manual can be provided.
