US$22,350.00-46,895.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Process G Range Xyz
800X550X550mmmm
Spindle Nose to Table
120-670mm
Spindle Center to Column Surface
595mm
Machine Size
2500X2000X2200mm
Spindle Speed
Direct 12000rpm
Transport Package
Steel Case, Plywood Case
Specification
table size 1000*500mm
Production Capacity
1000sets/Year
Packaging & Delivery
Package Size
200.00cm * 100.00cm * 100.00cm
Package Gross Weight
10000.000kg
Product Description
Company Profile
Suji Intelligent Equipment Jiangsu Co., Ltd
Suji Intelligent Equipment Jiangsu Co., Ltd was established in 2018 and is located in Jiangsu Shuyang National Economic Development Zone. We specialize in CNC machine tools, including vertical machining centers, with a focus on development, production, research, sales, and service. Our professional technical team has years of experience in CNC machine tool manufacturing, ensuring high-quality products and services.
Major Products:
Vertical machining center series
Horizontal machining center series
Gantry machining center series
Flat rail CNC lathe
Inclined rail CNC lathe
Our machine tools are designed for high speed, rigidity, performance, and efficiency, making them ideal for industries such as communication, consumer electronics, medical, LED, automotive, aerospace, and more.
We have a strong research and development capability, years of manufacturing experience, and are ISO9001 quality system certified. Our commitment to quality and service drives our business philosophy of creating value for customers, opportunities for employees, and benefits for society. We provide professional, sincere, and comprehensive pre-sale, sale, and after-sales service, along with technical support to meet all customer needs.
We look forward to developing together with our partners and creating a better tomorrow for all.
Product Description
Product Parameters

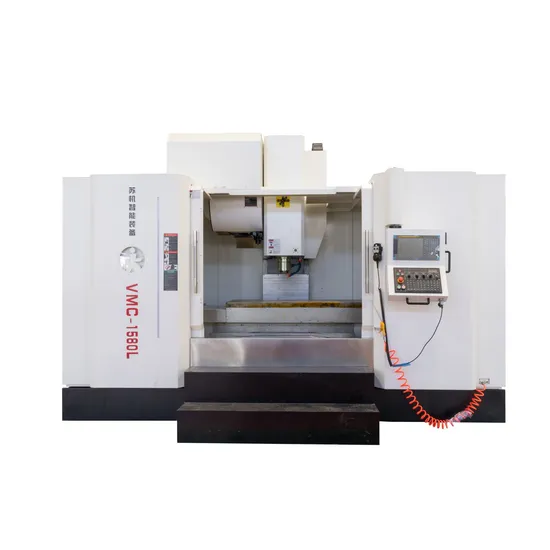

S/Model | Unit | VMC640S | VMC850S | VMC855S | VMC1160S | VMC1370S | VMC-1580S |
Machining Range |
X axis travel | mm | 600 | 800 | 800 | 1100 | 1300 | 1500 |
Y axis travel | mm | 400 | 500 | 550 | 600 | 700 | 800 |
Z axis travel | mm | 450 | 500 | 550 | 600 | 700 | 700 |
Spindle nose to table | mm | 150-600 | 150-650 | 120-670 | 120-720 | 110-810 | 130-830 |
Spindle center to column | mm | 470 | 545 | 595 | 645 | 750 | 810 |
Workbench size |
Table Dimension | mm | 700x420 | 900x500 | 1000x550 | 1200x600 | 1400x700 | 1800x800 |
T-slot Dimension | mm | 3x14x120 | 3X18X130 | 5X18X90 | 5X18X100 | 7X18×100 | 22X5X140 |
Max Load | kg | 250 | 500 | 500 | 800 | 1000 | 1500 |
Spindle |
Taper | | BT40 | BT40 | BT40 | BT40 | BT40/BT50 | BT40/BT50 |
Max Speed | rpm | Direct 12000 | 8000-1000rpm |
Infeed System |
G00 fast infeed(Axis X/Y/Z) | m/min | 48/48/48 | 48/48/48 | 48/48/48 | 36/36/36 | 36/36/36 | 36/36/36 |
G01 cutting infeed | m/min | 1-10000 | 1-10000 | 1-10000 | 1-10000 | 1-10000 | 1-10000 |
Tool Magazine |
Type | type | Disc | Disc | Disc | Disc | Disc | Disc |
Capacity | unit | 24 | 24 | 24 | 24 | 24 | 24 |
Machine Dimension |
Length | mm | 1800 | 2300 | 2500 | 3200 | 3600 | 3850 |
Width | mm | 2400 | 2800 | 2000 | 2400 | 3300 | 3100 |
Height | mm | 2300 | 2700 | 2200 | 2800 | 2900 | 2900 |
Weight | kgs | 4600 | 4600 | 4800 | 7500 | 10500 | 12000 |
Brands of Main Parts
Part Name | Origin | Manufacturer | Model |
CNC system | FANUC, Japan | FANUC | 0i-MF PLUS(Type 3) |
Servo feed motor | FANUC, Japan | FANUC | |
Servo spindle motor | FANUC, Japan | FANUC | |
Servo integrated driver | FANUC, Japan | FANUC | |
Spindle group | Taiwan | Royal/Kenturn | BT40-φ150 |
Roller screw | Taiwan | HIWIN/PMI | FDC4012 |
Linear guide rail | Taiwan | HIWIN/PMI | 45#/45#/45# |
Spindle bearing | China mainland | NSK | |
Unclamping Cylinder | Taiwan | Haocheng | 4.5T |
Disk type tool magazine | Taiwan | Ammach/Tokuda/Okada | BT40-24T |
Locking nut | Taiwan | Svit | M30×1.5P/ M35×1.5P |
coupling | Japan | Sanmu | |
heat exchanger | Japan | Miki Pully | EA-02W/220V |
Screw bearing | Japan/Germany | NSK/FA.G | 30TAB062 |
Oiling machine | Taiwan | Ishan | |
Main electrical components | France | Schnneider | |
Pneumatic components | Taiwan | TWSNS | |
Chain chip conveyor | China mainland | SUJI | |
