1cavity Semi-Automatic Stretch Blow/Blowing Molding Machine for 6-10L Bottle

1cavity Semi-Automatic Stretch Blow/Blowing Molding Machine for 6-10L Bottle

US$4,600.00-7,800.00 1 Set (MOQ)

Basic Info.

Model NO.
D-R801-1
Making Method of Parison
Stretch Blow
Automation
Non-Automatic
Computerized
Computerized
Certification
CE
Blowing
Machine
Pet
Water Bottle
Semi-Automatic
1cavity
Application
Household
Transport Package
Wooden Case
Specification
CE
Trademark
DR
Origin
Huangyan Taizhou, Zhejiang China
HS Code
8477401000
Production Capacity
5-10L: 200-300PCS(1cavity)

Product Description

D-R801 5-10L One Cavity Semi-Automatic blow moulding machine
https://chinadoria.en.made-in-china.com/product-list-1.html
1. Model: D-R801
Description & Features:
D-R801 Stretch Blow Molding Machine is suitable to produce different shapes of PET/PP bottles/jars as well as PMMA globes(neck size below 100mm). It is applicable for blowing bottles from 5L to 10L and is widely used to produce mineral water, carbonated drink, juice, medicine, cosmetic and oil bottles etc.
The machine adopts revolving infrared pre-heat system. It ensures PET preforms be heated evenly.
The machine uses mechanical-double-arm mould clamping which ensures the mould will be closed tightly even under high pressure and high temperature.
The air system consists of two parts: pneumatic action part and bottle blow part to meet the different pressure requirements for the action and blowing. It can provide sufficient and steady high pressure for blowing large irregular shape bottles.
The machine is also equipped with silencer and oiling system to lubricate the mechanical parts of the machine.
The machine can be operated in the step-by-step mode and the semi-auto mode.
2. TECHNICAL SPECIFICATION
TYPE ITEM UNIT TECHINICAL DATA
END PRODUCT Material PET/PP/PE/PC
volume L 5-10(1-cavity)
theoretical output pcs/hr 5-10L: 200-300
Max. length mm 360
Max. diameter mm 180
MOULDING Max.mould plate
dimension(L*H)
mm 420 X 500
max thickness of
mould
mm 240-400
clamping force KN 200
mould opening stroke(adjustable) mm 300
AUXILIARY High air pressure compressor M3 /Mpa ≥1.2/3.0*1set
air filters M3 /Mpa ≥1.0/3.0*2pcs
main
machine
electricity
power KW 6
voltage/frequency V/HZ 220/380/50-60
(3-phase)
machine
size and
weight
Blower dimension (L*W*H) M 1.53*0.6*2.0
Blower weight T 0.6
Infrared- heater(L*W*H) M 1.8*0.5*1.16
Infrared- heater weight T 0.3

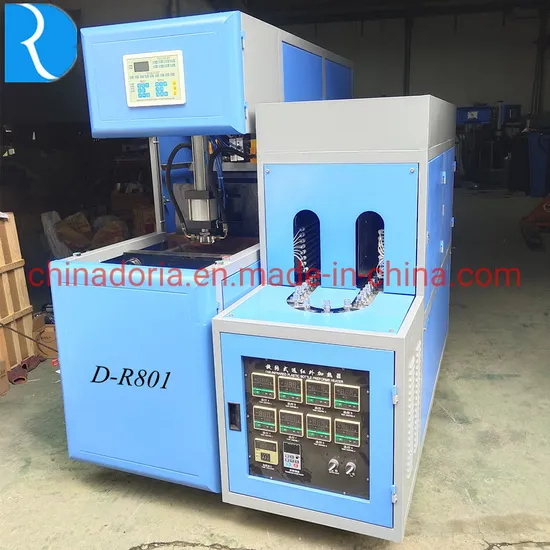

3. Pictures of D-R801
4. Frequently Asked Questions:
Q: Can I get free samples?
A: YES. We would like to send several samples for your reference if you could afford freight.
Q: What surface handing could you support?
A: We cab provide screen printing, hot stamping, frost, label printing etc.
As to printing color: Color can be made according to PANTONE color number.
Q: Do you accept customized order?
A: YES. We can arrange opening the mould according to customers' requirement.
Q: What is the normal lead time?
A: (1). For stock products, we will send goods to you within 12-24 hours after we receive your payment.
(2). For surface handing products, the delivery time is within 7-10 work days after we receive your payment.
(3). For products we never manufactured, we could open the mould if needed.
Q: What is your selection of shipping method?
A: (1). For small trial order, international express, just as TNT, DHL, FedEx, UPS, EMS is suitable.
(2). For large order, we can arrange shipment by sea or air according to your requirement.
5. About us:
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.
The main products are following: Automatic & semi-automatic blow moulding machine, PET preform, plastic injection machine, preform moulds, bottle moulds, commodity moulds and correlative products.
Based on "Quality is first; Honor for the honest", we always continue development and innovation to witness the maturity of industrial chain of products and improve the quality of products continually. Untiring effort makes the products, especially for 5gallon blow moulding machine, 5gallon PET preform and commodity moulds are widely accepted by our customers.
We have good market in South America, Africa, Asia, Europe, North America, and our many customers from Canada, Brazil, Thailand, Chile, Algeria etc.
Meanwhile, the output of our main product automatic 5gallon blow moulding machine could achieve 600pcs/h which is the breakthrough of our company.
Welcome everyone to visit us, we hope we will have good chance to cooperate!
6. Location:
No.362 Lingxiage Village
Xicheng Street, Huangyan
Taizhou, Zhejiang
China
