5 Station CNC Drilling Machine for Carbon Fiber Padle Racket Production

5 Station CNC Drilling Machine for Carbon Fiber Padle Racket Production

US$19,000.00
1 Piece
US$18,000.00
2 Pieces
US$17,000.00
3+ Pieces

Basic Info.

Model NO.
RB-F3-W2025-Z22-5
Structure
Horizontal Drilling Machine
Layout
Horizontal
Controlling Mode
CNC
Number of Shaft
10
Hole Diameter
101-150mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Model
Rb-F3-0303-Z02/2*5
X Axis Effective Stroke
300mm
Y Axis Effective Stroke
300mm
Z Axis Effective Stroke
200mm
Number of Spindles
10
Spindle Power
1.5kw
Spindle Speed
24000r/Min
X/Y Axis Maximum Speed
30m/Min
Z Axis Maximum Speed
20m/Min
Repeat Accuracy
+/- 0.05mm
Voltage
380V
Total Power
18.2kw
Frequency
50Hz
Weight
1.3t
Transport Package
Export Safety Packing (Customized Packing)
Specification
L2250*W1450*H1950mm
Trademark
RBT
Origin
Quanzhou, China
Production Capacity
200set/Month

Packaging & Delivery

Package Size
250.00cm * 160.00cm * 200.00cm
Package Gross Weight
1300.000kg

Product Description

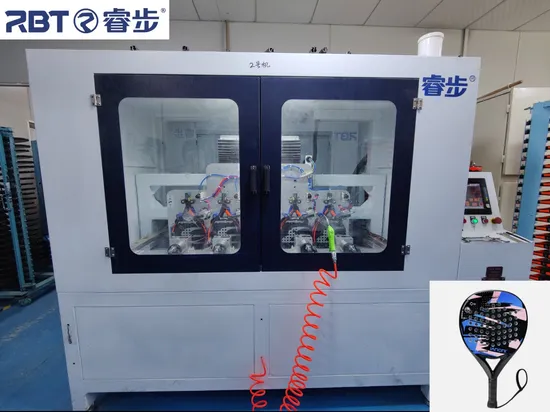

5 station CNC Drilling Machine for carbon fiber Padel Racket production
Parameters
Machine Feature 1. This equipment adopts computer control system, which can directly import the racket hole size.
2. Each racket can establish a processing documents. If need to change the processing products, no need to change any mold, just adapt the racket processing with replacement processing document.
3.Simple fixing operation, good location. Only need 1-2 seconds to put the racket into the tooling to complete the fixed action of the racket.
4. One machine can process 5 beach racket at the same time, one worker can operate 3-4 machines, which can save a lot of labor.
Application suitable for beach tennis racket drilling,Fitness equipment industry
PACKING & DELIVERY
1.Plastic film packaging and put in plywood wooden cases or according to customer's requirements.
2.Shipping : Container transport.
FAQ
Q1. Where is your factory located ? How can I visit it ?
A : Our factory is located in Quanzhou city,Fujian province,China. You can fly to Jinjiang or Xiamen air port, we will pick you up.
Q2. Are you produce polishing machine's specific parameters according to the samples?
A: Yes, we produce the machine you want by your samples or technical drawings. Usually one machine have different molds and fixtures like metal polishing machine,die casting machine.
Q3. What is your sample service?
A: We can supply the sample testing which client want to produce or the spare parts.
Q4. What is your MOQ of your machine?
A: Normally our MOQ is 1 set.
Q5. Do you test all your machine before delivery?
A: Yes, we have 100% test before delivery.
Q6: How is your development ability?
A: We have a strong engineer team to support the drawing, technology proposal, test and certification; We can customize the machine per customer requirement.
Q7: How about your after sales service?
A:We will arrange our technical staffs to your factory to install machine and teach you how to operate it. During the current special period, we will offer all support online via video 24h per day. Before shipment, we will test machine from and then send all videos from installation to production for customers. Full set of manual and instruction in English will be sent with machine together.
