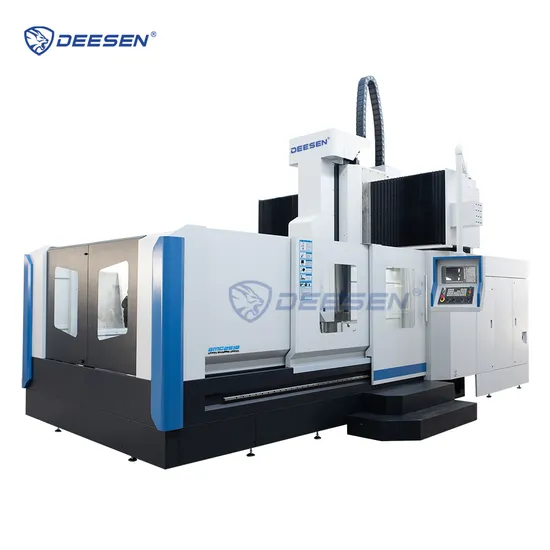

The Most Popular CNC Machine Gmc2518 High Efficiency Gantry Milling Machine

The Most Popular CNC Machine Gmc2518 High Efficiency Gantry Milling Machine

US$30,000.00-40,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
GMC2518
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Color
Customzied
Weight
21000kg
T Slot(Number-Width*Pitch)
7-22*200
Distance Between Spindle Nose and Workta
250-1050mm
Max. Worktable Load
5000kg
Max. Spindle Speed
6000rpm
Table Size
2700X1600mm
Main Motor Power
15/18.5kw
Spindle Taper
Bt50/φ190
Rapid Traverse Speed
15m/Min
Cutting Feed Speed
10m/Min
X Axis Travel
2700mm
Y Axis Travel
2000mm
Z Axis
800mm
Gantry Width/Height
1900mm/1080mm
Transport Package
Wooden Case
Specification
720cm * 420cm * 435cm
Trademark
DEESEN
Origin
China
HS Code
8459619000
Production Capacity
300/Month

Packaging & Delivery

Package Size
740.00cm * 440.00cm * 455.00cm
Package Gross Weight
22500.000kg

Product Description

The Most Popular CNC Machine GMC2518 High Efficiency Gantry Milling Machine
Product Description

Guarantee of Quality
The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.
There are same or similar products on the market, however, those products could not meet the DEESEN MACHINE strict quality.
Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance.
Laser Interferometer Testing Equipment Well trained quality control department is the first contact for adhering to quality on site.
They are responsible for the dimensional accuracy of the components as well as their control and the quality of the manufacturing process.
A team of quality control engineers directly influences the production process on site by regular training courses and tests.
What is more, they are closing working together with the technical department in the factory.
Due to this intensive care at the production site we are able to achieve literally the DEESEN MACHINE.
Features: High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Automatic lubrication system Application: Suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .
It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc. Product Parameters
Product main technical specifications:
SPECIFICATIONS Units GMC2018 GMC2518 GMC3018 GMC3518
Table size(W*L) mm 1600*2000 1600*2700 1600*3200 1600*3700
X axis travel mm 2000 2700 3000 3500
Y axis travel mm 2000 2000 2000 2000
Z axis travel mm 800 800 800 800
Gantry width/passing height mm W:2000/H:1080 W:2000/H:1080 W:2000/H:1080 W:2000/H:1080
Table load t 4.5 5.5 6.5 7.5
Distance between spindle nose and table surface mm 250~1050 250~1050 250~1050 250~1050
T slot(number-width*pitch) - 9-22*180 9-22*180 9-22*180 9-22*180
Spindle taper - BT50/190 BT50/190 BT50/190 BT50/190
Spindle speed r/min 6000 6000 6000 6000
Rapid traverse speed m/min 15 15 15 15
Cutting feed speed m/min 10 10 10 10
Main motor power kw 15/18.5 15/18.5 15/18.5 15/18.5
Tool magazine Arm24 Arm24 Arm24 Arm24
Positioning accuracy mm X/Y 0.0075 Z 0.015
Repeat positioning accuracy mm 0.005
Overall dimension(L*W*H) mm 7200*4700*4300 8200*4700*4300 9200*4700*4300 10200*4700*4300
Machine weight(about) t 20 21 26 28


Detailed Photos

TAIWAN PRECISION SPINDLE
1. Spindle taper is BT50;
2. Spindle speed 6000rpm , can enlarge to 8000rpm
3. Taiwan Spindle passed dynamic balance ISO rating test
TAIWAN TOOL MAGAZINE
1. Standard with Taiwan 24 Arm tool magazine, tool change time only 3 seconds.
2. Brand: OKADA
TAIWAN PRECISION LINEAR RAILS
1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class
2. Brand: HIWIN or PMI
CONTROL SYSTEM
Standard: GSK / KND control
Optional : Siemens , FANUC, Syntec ect.
AIR STORAGE TANK
Air storage tank to ensure the stability of spindle tool change

PNEUMATIC COMPONENTS
Provides precise control and repeatability to ensure high efficiency and stability of the process. It has the advantages of fast response speed, high control accuracy and low maintenance cost, so it has been widely used in machining centers
ELECTRICAL COMPONENTS
1. safety electrical components
2. quick plug as standard
3.Precision processing, high efficiency and stability
LEAD SCREW AND COUPLING
Taiwan precision lead screw.
1.Lead screw bearing use NACHI bearing,
2. Coupling R+W directly connected .
Machine Optional Details
Company Profile
Since its establishment, Deesen Machine Tool (Shandong) Co., Ltd. has more than 20 years of experience as a professional lathe manufacturer. Has been deeply cultivated in the machine tool industry, has gradually developed into a highly influential enterprise.
In the field of research and development, we have invested a lot of resources and set up a professional research and development team with top talents. The team members include mechanical engineering experts, automation technology elites, etc., they keep up with the industry's cutting-edge technology trends and constantly explore innovation. With the in-depth study of the core technology of the machine tool, the company has independently developed a number of key technologies, which makes our machine tools reach the micron level in cutting accuracy, greatly improving the degree of refinement of parts processing.
In terms of production, the company adopts advanced production management system, has a modern production workshop and high-precision processing equipment. Whether it is casting, stamping, or machining, we strictly follow the principle of fine production to ensure that every component meets high quality standards. Moreover, we have established a strict quality inspection process, from raw material procurement to finished product assembly, each process is checked at various levels, using a variety of internationally accepted quality inspection methods, to ensure that the product pass rate of more than 99%.
The company has a complete range of products, from conventional ordinary machine tools to high-end CNC machine tools. Among them, our CNC machine tools have the advantages of high automation, high precision and high stability, and are widely used in high-end manufacturing fields such as automobile manufacturing, aerospace and precision mold processing.
In addition to excellent products, we have also built a perfect after-sales service network. The after-sales center arranges professional technical service personnel to provide 7×24 hours rapid response service. Whether it is equipment installation, commissioning, maintenance, or operator training, we can provide customers with a full range of quality services.
Over the years, with leading technology, excellent product quality and perfect service system, Deesen Machine Tool (Shandong) Co., Ltd. has not only occupied an important market share in China, but also exported to many countries and regions, winning wide praise from customers at home and abroad. In the future, we will continue to take innovation, quality and service as the cornerstone, constantly improve the competitiveness of enterprises, and lead the machine tool industry to a new height.

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
