Hydraulic CNC Angle Steel Punching Marking Shearing/Cutting Machine with High Quality Automatic Angle Steel Tower Machine

Hydraulic CNC Angle Steel Punching Marking Shearing/Cutting Machine with High Quality Automatic Angle Steel Tower Machine

US$56,000.00
1-4 Pieces
US$55,000.00
5-9 Pieces
US$54,000.00
10+ Pieces

Basic Info.

Model NO.
JGX1616/S Angle Steel Machine
Transport Package
Wooden Package or Non Package
Trademark
Raintech
Origin
Shandong, China
Production Capacity
20 Sets/Month

Packaging & Delivery

Package Size
50.00cm * 60.00cm * 70.00cm
Package Gross Weight
1000.000kg

Product Description

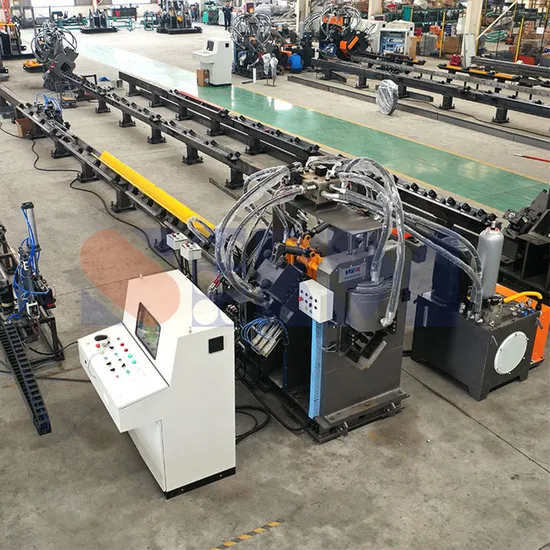

CNC Steel Angle Steel Punching Marking Shearing/Cutting Machine with High Quality Automatic Angle Steel Tower Machine

Product Description
This machine is mainly used for punching holes and cut to length on angle steel. The positioning, feeding of the machine are all driven by servo motors,mainly used in Telecommunication tower, solar mounting, warehousing storage, granary, scaffolding and automobile industries.
1. The machine adopts our ownself-developed Taurus software can be used when the device is turned on, and stopped when it is turned off, and it does not need to return to the original point when it is restarted. It can achieve continuous work ,greatly improve the working efficiency.
2. On the basis of supporting dxf, the machine supports TEKKELA NCformatto meet the various production needs of customers
3. The probe sensor of the entire production line is reduced by 1 time, which reduces the failure rate of the whole machine by 1 time, which greatly decreases the maintenance and use costs.
4. It can finish punching, marking and cutting functions automatically on one machine. Working Process
Product Parameters

Model JGX2020/S JGX1616/S JGX1516/S JGX1412 JGX1010 JGX0808
Function CNC Punching,Marking,Shearing line for Angle steel
Processing area Minimum angle length(mm) 63x63x4 40x40x3 40*40*3 40x40x3 40x40x3 30x30x3
Maximum angle length(mm) 200x200x20 160x160x16 150*150*12/16 140x140x12 100x100x10 80x80x8
Maximum angle length(m) 14 12 12 9(12) 9(12) 9(12)
punching Punching force 1500 1500 1500 1000 800 500
Nmuber of punches per side 3 3 3 3 3 2
Max.punching hole size 26 26 26 26 26 26
22x50 22x50 22x50 22x50 22x50 22x40
Adjustment range 20-180 20-140 20-140 20-120 20-80 15-70
Marking Force(KN) Marking Force 1030 850 800 700 700 500
Group of marking characters 4 4 4 4 4 3
Qty of marking characters 12 12 12 12 12 12
Character size 14x10x9 14x10x9 14 x10x19 14x10x9 14x10x9 14x10x9
Shear Shear nominal force(KN) 2200/4400 2000/4300 1800/4000 2250 1250 800
Shear mode Double/single Double/ single Double/single Single Single Single
CNC axis number 3 3 3 3 3
Feeding speed(m/min) 30-80 30-80 30-80 40-80 40-80
Feeding mode Servo infeeding
Programming accuracy Reunie with GB2694-2010
Programming mode AUTO CAD(NC, Dxf) OR Sample software
Program function Real-time monitoring,fault display,fault display,fault alarm,etc.
Overall size(m) 32x7x2.6 30X7X2.6 28X7X2.6 28X7X2.6 24X7X2.2 21X4.5X2

Detailed Photos
odu
Infeeding Carriage
The feeding car consist of moveable cart, clamp , clamping cylinder, swing cylinder, servo motor, etc. During feeding work, the trolley is guided by two precision guide rails on the feeding conveyor, which has the advantages of high precision, high stability and low noise.

Infeeding conveyor
the base channel of conveyors adopt one piece bending thick plate, non welded structure which can strengthen the load capacity , the bearings choose famous brand suppliers only, and the rollers with more strength and capacity, the creative design of feeding conveyor is can assure the smooth and fastest feeding of angle steel material into the mainbody to start the process.


horizontal feeding table
Driven by the motor and reducer through sprocket and chain, through three long shafts and six self-made couplings. This makes the angle steel stable and low noise during the conveying process




Marking Unit
The marking unit is composed of a bed support fixed on the machine base, a movable bed, a hydraulic power pressure head, and a four-position oil cylinder that realizes the transposition of the four word boxes. According to the instructions of the computer, print at the position required by the drawing. In order to meet the processing range of the machine, a manual adjustment mechanism is added, which can be used to change the down position of the mobile body (namely the position of the word head) to adapt to the typing position of angles of different specifications.

Punching Unit
Equipped with three different specificationsofpunches on each side, and each punchhas a mold selection cylinder, which cancarry out multiple rows and different hole punching processes on the two wings of the angle steel.

Cutting Unit
Angle and channel steel:single blade Flat steel straight shear and shear with arc
Out feeding Conveyor
Composed of feeding roller, work piece support roller, double-sided or single-sided turning cylinder. Turn the process workpieceout through the left or right dump button.

Hydraulic Station
adopts water or air cooling on hydraulic station, assure the stable temperature control , to avoid over heat on hydraulic pump
Workpiece:

Manufacturing Process
We have cooperated with experienced shipping forwarders for many years, they arrange the shipment. No matter by express, by air or by sea, we will track the course of the goods all the way, to make sure goods arrive at you on time and in good condition. Company Profile
Why Choose Raintech SANS?
CERTIFICATE

International exhibitions
Customer visits
FAQ
♥1.How to operate the machine ?
We will deliver English manual and video with the machine to you. lf you still need our help, please contact us.
♥2.If some problems happen to this machine during warranty period, what should I do?
We will supply free charge of spare parts and regularly maintenance service during machine warranty period if machine have some problems. So any doubts, just let us know, we will give you solutions.
♥3.Does the machine can be customized according to my requirements ?
Yes, we have a strong technical team and have rich experience.
♥4. What about the package and shipment ?
The machine will be packaged by multilayer plastic wrap for anti-humidity on the sea. The strong steel wire roops will be used for fix the machines in container to avoid any damage in transportation.
