High Efficient Horizontal Type Palm Kernel Shell Biomass Biochar Carbonization Stove

High Efficient Horizontal Type Palm Kernel Shell Biomass Biochar Carbonization Stove

US$10,000.00-40,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
YLXT-1200
After-sales Service
Life-Time Service
Capacity
1ton/H
Power
22kw
Weight
13tons
Certificate
Ce
Input Size
Less Than 15cm
Input Shape
Different Sizes
Machine Color
as Requirement
Texture
Carbon Steel
Voltage Customize
Yes
Usage
Charcoal Carbonization
Output Shape
Different Sizes
Main Voltage
380V50Hz
Application
Fuel, Biomass
Transport Package
Ply Wooden Case
Specification
12*3*3.5m
Trademark
YEARMEGA
Origin
Henan-China
HS Code
84748020
Production Capacity
500 Sets/Month

Product Description

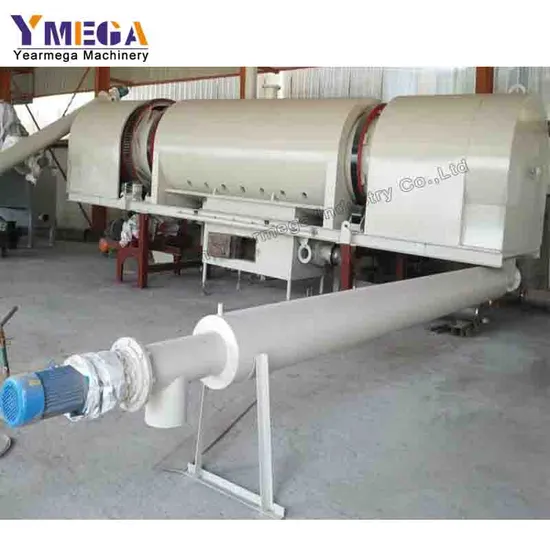

High Efficient Horizontal Type Palm Kernel Shell biomass Biochar Carbonization Stove
As a professional charcoal machines manufacturer in China, our company always adhere to the principle of quality first.
Main technical parameters of the continuous carbonization furnace
Model YLXT-800 YLXT-1000 YLXT-1200
Capacity(kg/h) 300-400 500-800 800-1000
Power(kw) 18.5 22 22
Size of the main furnace (mm) Ø820*8000 Φ1020*9200 Φ1200*11200
Diameter of Gasifier furnace Φ1500 Φ1500 Φ1500
Screw conveyor 2 sets 2 sets 2 sets
Dimension(m) 9*2.6*2.9 9.2*3*3.5 12*3*3.5
Weight(ton) 8 10 13

Technical data for this machine you may concern Carbonizing temperature is 20-30 minutes,from input raw material to out put charcoal. Carbonization furnace rotating speed is 3r/minute, and it's adjustable. Output raw material temperature is 50ºC. Heating furnace max temperature 1200ºC. Main carbonization furnace max temperature 800ºC Raw Material and Final Product:
Raw material: sawdust, rice husk, small wood sticks, coconut shell, palm kernel shell, peanut hulls, corn stalks, bagasse, twigs, rice husks, bamboo shavings, sorghum stalks, sunflower husks, distilled grains, corn cobs, coconut husks, coffee grounds, cotton stalks, bean stalks, dry leaves and other biomass materials, agricultural wastes.
Input raw material size need less than 15cm
Rate of raw material and final products of the carbonization stove:
According to the humidity and the density.
For low density material,suck as rice husk, sawdust, we can get 1 ton charcoal from about 3-3.5 tons raw material ,for high density raw material such as bamboo shavings, coconuts shell, palm kernel shell, We can get 1ton charcoal from about 2.5-2.7 tons material.
The advantages of the new type continuous carbonization stove
The production of old-type is batch by batch, and the new type is continuous which improves the production efficiency to a great extent. The old-type makes plenty of heavy smoke, even if with the cooling treatment, it still brings the serious air pollution. Different from the old-type furnace, the new-type does not exhaust the heavy smoke from the carbonization process to the air, oppositely, it collects the smoke goes into the burner through the pipes and burns as fuel gas for recycling use, to reach the aim of replacing the normal fuel and continue the carbonizing process. The design of new-type furnace avoids the air pollution of heavy smoke exhausted. The operation of old-type is quite complicated, before carbonization, the briquettes need to be put properly which wastes much time and labour. However, the briquettes can be put irregularly and then process carbonization directly, saving much time and labour. The production efficiency of the old-type is low. Every 24 hours, the output of 5m³furnace is only around 1 ton. By contrast, due to the design of continuous production, the new-type furnace can produce around 200 kg charcoals every 1-2 hours, The efficiency of the new-type is completely 4-5 times more than the old-type, which greatly reduce the expenses spent in a great amount of old-type equipments when target capacity is high.
After carbonizing, we can make briquettes:
Briquette roller pressing production line flow as following
Crushing process-----Mixing process------Briquette making process----Packing Process
Other Biomass Processing machinery
Packing and shipping
1. The carbonization stove big as it will be nude and loaded in the container.
2. We will provide the machine as quickly as possible after the customer playing the order, also with high capacity. we will track the shipping for customer whenever they need.
Our Services
1. We will give detailed introduction of the automatic high efficient continuous carbonizing furnace according to the client capacity requirement.
2. Share any information about the Automatic high efficient Continuous Carbonizing Furnace that the clients need, like detaield pictures, video,etc
3. Design full briquette making line for client.
4. Give detailed instruction manual and video to the customers.
Contact information:
If you have interest in this High Efficient Horizontal Type Palm Kernel Shell biomass Biochar Carbonization Stove, kindly please send us inquiry.
