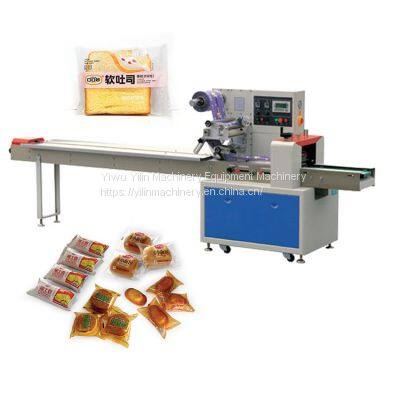

Automatic Flow Pillow Sugar Noddle Cookie Packing Machine

Product Details

Product Description

Product Description
Product Description Popsicle Pillow Packaging Machine:
Suitable for biscuits, packaging of all kinds of objects with regular solid state, such ,as bread ,speed wheaten food, moon ,cake ,candy ,medicines, dailynecessities, five metalspart, paper carton or the tray , etc.
Features Packing Machine:
1.Compact machine structure with smaller footprint area.
2. Carbon steel or stainless steel machine frame with nice appearance.
3. Optimized component design realizing fast and stable packing speed.
4. Servo control system with higher accuracy and flexibility mechanical motion.
5. Different optional configurations and functions meeting different specific requirements.
6. High accuracy of color mark tracking function.
7. Easy to use HMI with memory function.
Specification of Pillow Packing Machine:

Max.film width	250mm
Max packaging capacity(according to its material to fix)	40-250 times/min
Suitable film thickness	0.03-0.06mm
Length of bags	25-220mm
Packaging with	25-100mm
Packaging height	≤35mm
Total power	2.4Kw 220V
Overall dimensions(L x W x H)	4000 x 920x1500mm
Weight	500KG

Advantage of flow packing machine :
Screen:Most of the daily operations can be performed through the touch screen. The operation interface is simpler and easier to use than the general model, and has a recipe memory function.
Servo control:3 Servo drive system, compared with the general frequency conversion control model, reduces the adjustment of mechanical transmission parts, and improves the accuracy of the motion.
Eye mark position value is adjusted via touch screen. Position value is directly showed on the screen.
In-feed position is adjusted via touch screen. No need to manually adjust the handwheel.
Cutter speed is adjusted via touch screen. Easier to operate than manually adjustment by handwheel.
Our factories have advanced and modernized workshop, lead time for small flow packaging machines is greatly reduced from 30 days to 7-15 days compare others factory.
FAQ
Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send u sample and we test it on the machine. During that time, we will take video and clearer picture for you. If chance, we can take video online and show u.
Q: How about the after service and guarantee period?
A: We make the guarantee time 24 months from the machine's arrival in buyer's facility and we have a professional team with an experienced technician to serve abroad and do the best after service to assure the machine whole life usage.
