S8F Fincm Heavy Truck Frame Hanging Double Spindle Drilling Machine

S8F Fincm Heavy Truck Frame Hanging Double Spindle Drilling Machine

US$192,000.00
1 Set
US$209,000.00
2+ Sets

Basic Info.

Model NO.
S8F
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
CNC
Number of Shaft
7+2
Hole Diameter
8-30
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Frame material
Hot rolled steel 16MnL
Maximum cutting thickness
40mm
X, Y axis positioning accuracy
0.08mm
Z axis positioning accuracy
0.05mm
Drilling spindle speed
50-2000r/min
Spindle feed speed
0-8300mm/min
Spindle servo motor power
7.5KW
Tool magazine capacity
2*4
Hydraulic system pressure
2-7MPa
Cooling method
Liquid mist cooling method
Transport Package
Container
Specification
40GP
Trademark
FINCM
Origin
Shandong
Production Capacity
50

Product Description

Product Description

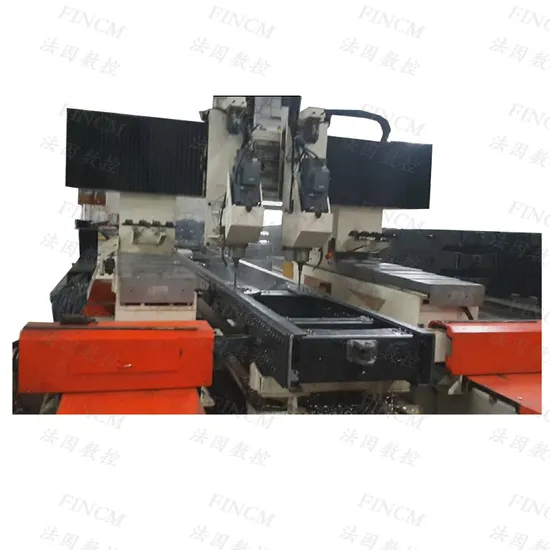

S8F FINCM S8F High-precision Frame Double-Spindle CNC Drilling Machine 40mm
The S8F frame dual-spindle CNC machine tool is a special equipment for machining the balance suspension holes of the heavy truck frame. The equipment is installed on the frame assembly line, which can meet the production cycle of the production line, is convenient to use, and can greatly improve production efficiency and processing quality.
Equipment advantages:
1. The main equipment of the equipment mainly includes a bed, a mobile gantry, a drilling power head (2) (applicable to high-speed steel twist drill drilling), a tool change mechanism (2), a positioning, clamping and detection mechanism, and a feeding trolley (2 A), aerosol cooling system, hydraulic system, numerical control system, protective cover and other parts.
2. The power head has an anti-collision design to prevent the power head from colliding during automatic operation.
3. The drilling power head adopts the imported precision spindle for the machining center; it is convenient to change the tool and can be clamped various drills; the spindle is driven by the servo spindle motor, which can meet the requirements of various speeds and tool changing functions.
4. In order to meet the processing of different apertures, the equipment is equipped with in-line tool magazines (2), and two power heads can realize automatic tool change.
5. The workpiece positioning and clamping device is automatically completed by hydraulic pressure.
6. The equipment has an independent automatic detection device, which can automatically detect the width of the workpiece and feed it back to the CNC system.
7. Each side of the machine bed is equipped with a set of laser alignment for rough positioning of the frame.
8. The equipment is equipped with a hydraulic system, which is mainly used for workpiece positioning and clamping.
9. The equipment is equipped with an aerosol cooling system for drilling and cooling of workpieces.
10. The equipment gantry beam is equipped with an organ type protective cover, and the bed rail is equipped with a telescopic steel plate type protective cover.
11. In order to meet the support, transportation and drilling of the frame, the production line is equipped with two electric feeding carts No. 1 and No. 2 and the ground track. The frame assembly is placed on the feeding cart and transported to the CNC drilling machine along the ground track. Drill holes in the middle; in order to improve the processing efficiency, the feeding trolleys No. 1 and No. 2 adopt one-in and one-out actions.
12. The equipment adopts Siemens 840D SL numerical control system, which can realize CAD automatic programming and has the function of layer recognition.
13. The equipment is equipped with a linear bar code (one-dimensional bar code, CODE-128 coding standard) scanning system, which automatically calls the processing program by scanning the linear bar code of the frame with a handheld wireless scanner.
14. The equipment has the counting function of automatically accumulating the number of drilling holes and the number of processed workpieces, and can not be cleared; in addition, it has a production counting function, which can record the number of workpieces processed by each processing program, and can be queried and cleared. Detailed Photos
Main Technical Specifications:
Frame process parameters Material Hot rolled steel 16MnL
Maximum tensile strength 1000MPa
Yield Strength 700Mpa
Processing stroke X1 axis 1600mm
Y axis 1200mm
Clamping stroke on moving side X2 axis 500mm
X3 axis 500mm
Drilling spindle quantity 2
Spindle taper BT40
Minimum drilling distance of dual power heads at the same time 295mm
Feed stroke 490mm
Spindle servo motor power 2*7.5kw
Spindle feed force 7500N
Spray cooling system Number of nozzles 2
Compressed air pressure 2-7Mpa

Working temperature: 0ºC~40ºC
power:3 phase 4 wire; voltage:380±10%V ; frequency:50HZ
List of the Key Outsourced Components:
NO. Name Band Country
1 Linear Guides HIWIN/PMI Taiwan(China)
2 Precision spindle kenturn Taiwan(China)
3 Linear barcode scanning system SYMBOL America
4 CNC system Siemens Germany
5 Servo motor Siemens Germany
6 Spindle servo motor Siemens Germany
7 Main hydraulic parts ATOS Italy
8 Drag chain igus Germany
9 Low-voltage electrical components schneider French
10 Power supply Siemens Germany

Note: The above is our fixed supplier. If the supplier can not supply the components in case of any special matter, we will adopt the components with the same level, but the quality is no worse than the above.

Other Products

Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
Cooperative Supplier

Product Process Control

Customer Praise:

Sale Networks

Customer praise:
FAQ:
1. When can you arrange shipment?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.
