US$0.30-18.00
|
500 Meters
(MOQ)
|
Basic Info.
Material Shape
Round Wire
Wire Core Material
Bare Copper Wire
Refer Standard
IEC 60502-2,BS6022
Transport Package
Wooden Drum/Steel Drum
Production Capacity
2000km/Month
Packaging & Delivery
Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
99.000kg
Product Description
Standards
ASTM B3 Standard Specification for Soft or Annealed Copper Wire ASTM B8 Concentric-Lay-Stranded Copper Conductors UL 1072 Medium-Voltage Power Cables UL 1685 FT4-ST1 Vertical-Tray Fire Propagation and Smoke Release Test (1/0 and Larger) CSA C22.2 No.230 Tray Cables - Rated TC-ER (1/0 AWG and Larger) CSA C22.2 No. 2556 / UL 2556 Cable Test Methods CSA C68.10 Shielded Power Cables for Commercial and Industrial Applications - 5 to 46 KV ICEA S-93-639 (NEMA WC 74) 5-46 KV Shielded Power Cable IEEE 1202 FT4 Flame Test (70,000) BTU/hr Vertical Tray Test (1/0 and Larger) AEIC CS-8 Specification for extruded dielectric shielded power cables rated for 5 through 46KV Application
15KV cables are suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, and where superior electrical properties are desired. These cables are capable of operating continuously at the conductor temperature not in excess of 105°C for normal operation, 140°C for emergency overload, and 250°C for short circuit conditions.

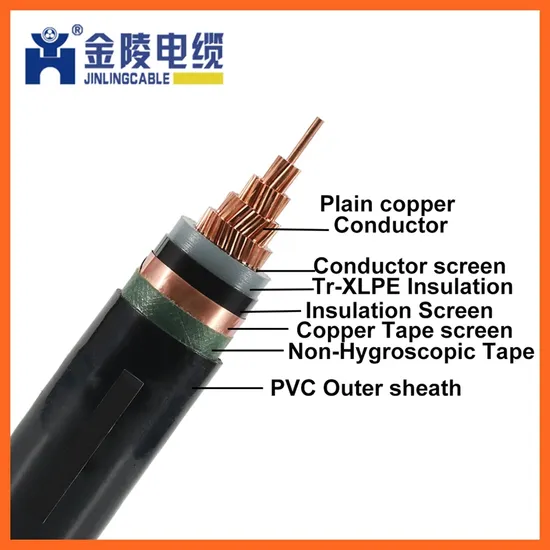

Construction
Conductor:Class B compressed stranded bare copper per ASTM B3 and ASTM B8
Conductor Shield:Semi-conducting cross-linked copolymer
Insulation:175 Mils Tree Retardent Cross Linked Polyethylene (TRXLPE) 100% Insulation Level,
Insulation Shield:Stripable semi-conducting cross-linked copolymer
Copper Tape Shield:Helically wrapped 5 mil copper tape with 25% overlap
Overall Jacket:Polyvinyl Chloride (PVC)
Parameter:
Cond. Size | Diameter Over Conductor | Diameter Over Insulation | Diameter Over Insulation Shield | Jacket Thickness | Approx. OD | Approx. Weight | Max Pull Tension | Min Bending Radius |
AWG/Kcmil | inches | inches | inches | mils | inches | lbs./MFT | lbs. | inches |
2 | 0.283 | 0.67 | 0.73 | 65 | 0.88 | 514 | 531 | 10.6 |
1 | 0.322 | 0.709 | 0.769 | 80 | 0.949 | 610 | 670 | 11.4 |
'1/0 | 0.362 | 0.749 | 0.809 | 80 | 0.989 | 699 | 845 | 11.9 |
'2/0 | 0.405 | 0.792 | 0.852 | 80 | 1.032 | 807 | 1065 | 12.4 |
'3/0 | 0.456 | 0.843 | 0.903 | 80 | 1.083 | 942 | 1342 | 13 |
'4/0 | 0.512 | 0.899 | 0.959 | 80 | 1.139 | 1107 | 1693 | 13.7 |
250 | 0.558 | 0.954 | 1.014 | 80 | 1.194 | 1254 | 2000 | 14.3 |
350 | 0.661 | 1.057 | 1.117 | 80 | 1.297 | 1619 | 2800 | 15.6 |
500 | 0.789 | 1.185 | 1.245 | 80 | 1.425 | 2151 | 4000 | 17.1 |
750 | 0.968 | 1.373 | 1.433 | 80 | 1.613 | 3024 | 6000 | 19.4 |
1000 | 1.117 | 1.522 | 1.582 | 110 | 1.822 | 3974 | 8000 | 21.9 |
