2 Ton 3 Ton 360-Degree Rotating Fixed Single-Arm Crane Workshop Floor Mounted Jib Crane

2 Ton 3 Ton 360-Degree Rotating Fixed Single-Arm Crane Workshop Floor Mounted Jib Crane

US$6,000.00-10,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Jib Crane
Certification
GS, RoHS, CE, ISO9001
Condition
New
Application
Workshop, Warehouse, Coal Stack, Port, Wharf, Construction Site, Mine, Load
Anchor
Semi-Buried
Structure
Solid Web
Material
Steel
Type
Jib Crane, Smart Hoist, Intelligent Lifting Device
Muscle Size
>31kg
Control Mode
Continuous Path Control
Drive Mode
Pneumatic
Capacity
100kg, Customized
up and Down Stroke
0-2000mm, Customized
Working Redius
3000mm, Customized
Max Height
3300mm, Customized
Installation Form
Ground Fixed, Customized
Transport Package
Wood Box
Specification
Customized
Trademark
Escott
Origin
China
HS Code
8428909090
Production Capacity
100PCS/Month

Packaging & Delivery

Package Size
300.00cm * 200.00cm * 150.00cm
Package Gross Weight
500.000kg

Product Description

Product Description

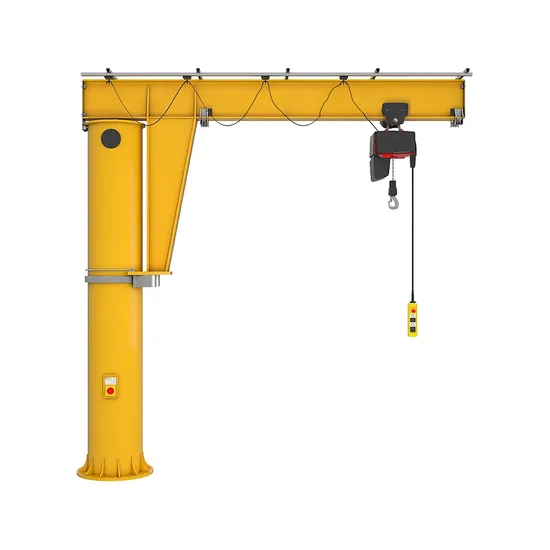

2 Ton 3 Ton 360-Degree Rotating Fixed Single-Arm Crane Workshop Floor Mounted Jib CraneJib Crane is a kind of manipulator equipment with cable. It realizes the lifting function by connecting the auxiliary lifting equipment installed on the mechanical arm with the fixture by soft cable.
The equipment is used with various non-standard fixtures to realize workpiece handling, palletizing, loading and unloading. It reduces operator fatigue, maximizes productivity, and ensures worker safety. It has a wide range of applications, especially for modern production lines.
The 2 Ton and 3 Ton 360-Degree Rotating Fixed Single-Arm Jib Crane is an industrial-grade lifting device designed for workshops and other manufacturing environments. This crane is floor-mounted and can rotate a full 360 degrees, allowing for flexible and efficient material handling over a wide area.
Key Features:
1. Capacity: Available in 2-ton and 3-ton lifting capacities.
2. 360-Degree Rotation: The crane arm can rotate a full 360 degrees, providing maximum coverage for various lifting operations.
3. Fixed Single-Arm Design: The jib arm is a robust, single-arm structure, offering stability and durability for heavy-duty applications.
4. Workshop Floor Mounted: The crane is designed to be bolted directly to the workshop floor, ensuring a solid and secure installation.
5. Height and Reach: The crane typically offers customizable heights and reach lengths to fit specific workshop requirements.
6. Hoist Compatibility: Compatible with electric chain hoists, wire rope hoists, or manual hoists, depending on operational needs.
7. Easy Operation: The design includes ergonomic features, making it easy to operate by workshop personnel.
8. Safety Mechanisms: Comes with built-in safety features, such as overload protection, to prevent accidents and ensure safe operations.
CORE TECHNOLOGY
Jib Crane consists of three parts: column and cantilever arm, auxiliary lifting equipment and non-standard fixture.Auxiliary lifting equipment includes Electric hoist, intelligent auxiliary elevator and pneumatic balance hoist:
1.Electric hoist uses a two-speed control mode; It has low cost, simple installation and operation, low maintenance cost, and is suitable for factory warehouses and other places.
2.Intelligent auxiliary elevator is composed of servo drive, servo motor, reducer, etc., and is controlled by a microprocessor, which can get the working direction of the power from the operator and generate the power toward upward and downward.Within the rated range, the workpiece can be moved at any variable speed to achieve efficient handling. It has easy operation, high precision, intelligent, controllable speed and safe and reliable.
3.Pneumatic balance hoist has the whole suspension function in the free stroke, which can realize the accurate positioning of the workpiece load shifting assembly and easy operation
Applications:
- Material Handling: Ideal for moving heavy parts, tools, or machinery in a workshop.
- Assembly Lines: Used for moving parts between different stations in assembly processes.
- Maintenance and Repair: Provides flexible lifting for equipment maintenance or repairs.
The crane's versatility, combined with its robust build, makes it suitable for a range of industrial uses, improving efficiency and safety in material handling tasks.MODELS FOR REFERENCE
1.Electric hoist
NAMEBMS125BMS250BMS500BMS1000BMS2000
Maximum load(Kg)12525050010002000
Lifting speed
(m/ min)
8/28/28/24/14/1
Motor power(Kw)0.4/0.10.4/0.10.4/0.10.75/0.21.5/0.37
Lifting MediumChain
Power supply220-460V

2.Intelligent auxiliary elevator
NAMEIAD-H80IAD-H200IAD-H300IAD-H600
Maximum load(Kg)80200300600
Handle-Lifting speed-unloaded
(m/ min)
4030157.5
Float-Lifting-speed-unloaded
(m/ min)
362713.56.75
Maximum stroke (m)3.53.53.51.7
Lifting MediumWire rope
Power supply220V±10% 50HZ

3.Pneumatic balance hoist
NAMEBW005060BW015080BW020120BW032080BW035080BW050080
Maximum
load(Kg)
226890147158227
Maximum
stroke(m)
1.52.03.02.02.02.0
Lifting mediumWire rope
Power supplyAir pressure

This is just for reference, if you need other customized feature, please contact us.INSTALLATION WAY
1. Cantilever crane
The cantilever hanging column adopts steel pipe, and the main beam adopts I-beam; It has the advantages of simple structure, flexible operation and large working space
2.Folding arm crane
The folding arm crane is composed of a column, a rotating arm and a lifting unit. Accurate positioning, can cover multiple working units, small footprint.
3.Movable base cantilever crane
It can be moved in all directions, the operation is flexible, the positioning is accurate, and the operation range is large
4.Truss crane
The steel structure has light weight and low bearing capacity. It is suitable for transportation scenarios with limited space, height, or large travel requirements.
WORKING SCENARIO
OUR FACTORY
FAQ
Q:Are you a manufacture or trading company?
A:We are the manufacturer, has more than ten years of production experience
Q: How long is your delivery time?
A: It is Usually 20 days after confirming the technical sheet and drawings.
Q: What is your price?
A: The price depends on your requirements for the equipment. Accordingto the model, the price is relatively different.
Q: What is the condition of your machine?
A: Brand new, can be customized.
Q:What is the guarantee of after-sales service?
A:Replacement parts within one year, lifelong technical guidance
Q:Mode of transportation?
A: You can choose sea, air, rail transportation (FOB, CIF, CFR, EXW, etc.)
Q:What problems can the JIB Crane solve?
A:1.Perform dangerous or heavy operations in place of humans
2.Improve production efficiency and quality
3.Reduce labor costs and so on
