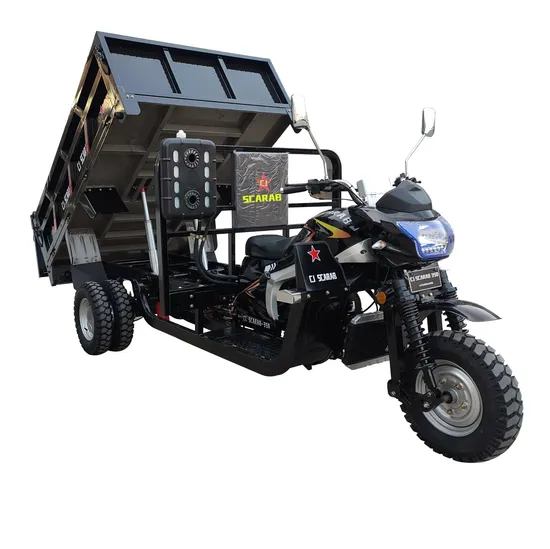

EEC/ECE/CE Certification/350cc Water-Cooled Engine Heavy-Duty Hydraulic Dump Three-Wheel Cargo Motorcycle
Basic Info.
Model NO.
CJ350ZH-18
Certification
ISO 9001:2000, ISO 9001:2008, CE, CCC
Usage
Cargo
Power
Gasoline
Body Type
Open
Displacement
350cc
Wheel Distance
1260mm
Wheelbase
2680mm
Rear Wheel Track
1260mm
Min Ground Clearance (
280mm
Rated Load
1500kg
Maximum Speed
65km/H
Transport Package
Sea Transport/CKD Sanda
Specification
L3920mm*W1450mm*H1420mm 654kg
Trademark
CHNAGJIANG or OEM
Origin
Henan
HS Code
8711301000
Production Capacity
50000PCS/Year
Packaging & Delivery
Package Size
370.00cm * 150.00cm * 950.00cm
Package Gross Weight
740.000kg
Product Description
Detailed PhotosProduct Parameters
| parameter status | Specification Description |
| Engine Model | 250CC/300CC/350CC |
| Start Method | Electric start,/foot start |
| Cooling Method | Water Cooling |
| Engine Shift Mode | 5-digit international file |
| Magneto Model | 12v/18 class |
| Vehicle size(mm) | L3820*W1450*H1580(mm) |
| Cargo size(mm) | L2200*W1400*H500(mm) |
| Maximum speed | 65Km/h |
| Rated load | 2000KG |
| Frame | 40*80 keel double bone (thickness 3.0mm), 40*100 rear flat frame (thickness 2.5mm) |
| Leaf Spring | 5+4/60*12(mm), 22KG/rack |
| Front Shock | Φ60 Longbao reinforced spring hydraulic shock absorber, Fangxing cast aluminum, six-level electroplating, |
| Rear axle | "Dongba" External Suspension Afterburner King 63mm*70mm Square Tube Oil Brake Rear Axle, 220mm Brake Pot, Speed Ratio 9:23 |
| Tire Model | Front 5.00-12, dual rear 5.00-12 |
| Hydraulic dump system | Double-cylinder hydraulic self- unloading (Dingli MAX750, 5T double-cylinder hydraulic) |
| Drive mode | Shaft drive |
| Braking method | Oil brake/brake hub |
| Baattery | 12V/32Ah maintenance-free lead-acid battery |
| Can Choose Colour | red, blue, black, white, yellow, green |
| Loading method: | CKD parts |
| Loading Q'ty | 32pcs/40'HG |
