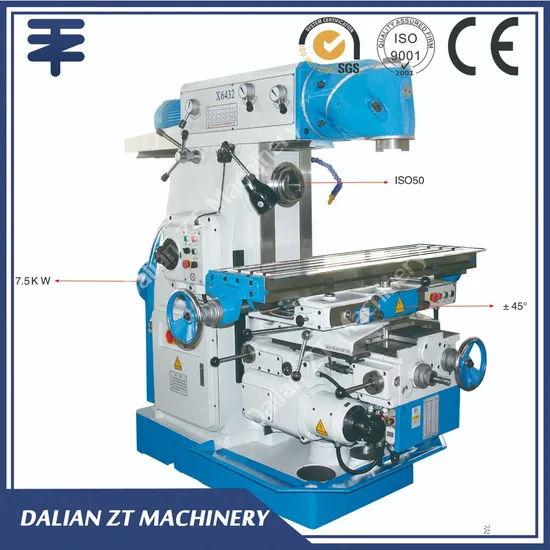

Horizontal Vertical Conventional RAM Milling Machine X6432

Product Description

Main Feature

Specification	unit	X6432	X6432B
Table size	mm	320×1325	320×1600
Max Longitudinal travel(manual/auto)	mm	700~680	900~880
Max transverse travel(manual/auto)	mm	255~240	255~240
Max vertical travel(manual/auto)	mm	320~300	320~300
Max rotary angle		±45°	±45°
T Slots(N*W*D)		3/18/70
Distance of Horizontal spindle axis to table surface:	mm	30~350	30~350
Distance of table center to vertical spindle	mm	190~510	190~510
Distance of table center to vertical ways of column	mm	470~215	470~215
Distance of table center ram	mm	155	155
Speed steps		(V):12 (H):18	(V):12 (H):18
Spindle speed range	r.p.m	(V:)60~1750(H:)30~1500
Table feed steps		18	18
Table feed range Longitudinal	mm/min	23.5~1180	23.5~1180
Table feed range cross	mm/min	23.5~1180	23.5~1180
Table feed range vertical	mm/min	8~394	8~394
Table rapid moving speed Longitudinal/cross	mm/min	2300	2300
Table rapid moving speed vertical	mm/min	770	770
Power of spindle	Kw	(V:)4(H:)7.5
Spindle of motor range	r.p.m	1440	1440

Standard Accessories

Name	Specification Model	Qty
ISO50 Cutter arbor Cutter arbor	φ40	1 piece
Horizontal arbor assembly	Φ22	1 piece
Horizontal arbor assembly	Φ27	1 piece
Horizontal arbor assembly	Φ32	1 piece
Oil gun		1 piece
Drawbar	M24x720	1 piece
Double-ended wrench	13x14	1 piece
Double-ended wrench	27x30	1 piece
Double-ended wrench	32x36	1 piece
Inner hexagonal wrench	5	1 piece
Inner hexagonal wrench	8	1 piece
Inner hexagonal wrench	10	1 piece

FAQ
1. How can I choose the most suitable machines ?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.

3. Is machine tested ?
A: The accuracy, noisy will be tested according to China GB standard.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5. What's the Payment Terms ?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.

6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.
