US$1,000.00-20,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Program Control
Automatic Grade
Semiautomatic
Certification
CE, ISO 9001
Transport Package
Veneer Box or Wooden Case
Production Capacity
100unit/Month
Product Description

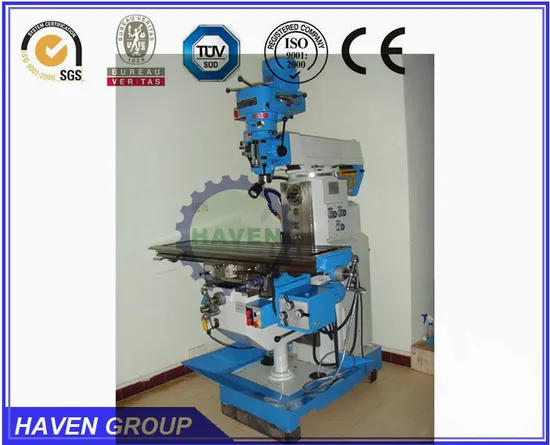

Universal Radial Milling Machine X6336
Main specification:
Specifications | Units | X6336 |
Table size | mm | 1320×360 |
Number/Width/Distance of T-slot | mm | 3-18-80 |
Table travel | mm | 980×300×450 |
Spindle taper | | ISO40(V) / ISO50(H) |
Spindle speed /steps | rpm | 70-3620/10steps(V) / 58-1800/12steps(H) |
Max. drilling dia. | mm | 30 |
Max. end milling width | mm | 125 |
Max. vertical milling dia. | mm | 25 |
Max. tapping dia. | mm | M16 |
Quill travel | mm | 140 |
Max. swivel angle of headstock | | ±45° |
Vertical spindle axis to column surface | mm | 150-550 |
Vertical spindle nose to table surface | mm | 200-650 |
Horizontal spindle axis to table surface | mm | 0-450 |
Longitudinal/transverse feed | mm/min | 15-370 / 15-370 / 575 |
Spindle motor power | kw | 3.7(V) 4.0(H) |
Overall dimension | mm | 2070×2020×2330 |
Machine weight | kg | 2200 |
WHY CHOOSE HAVEN BRAND MACHINE:
1) Hihg quality with competitive price
2) 15 years export experience
3) CE,SGS, ISO Certificated
4) OEM SERVICE AVAILABLE
5) 24 HOURS' ONLINE SERVICE (MSN,SKYPE)
6) 14 months quality warranty (after B/L date)
7) Over sea engineers available for problem shooting
Our Target: BRAND HAVEN
High quality;
Assured Delivery;
Vigorous innovation;
Efficient Cooperation;
Noblesse Oblige
