Basic Info.
Transport Package
Wooden Case
Product Description
Pipe & Flange | Cutting | Beveling | Facing | Drilling | Boring
Product Description

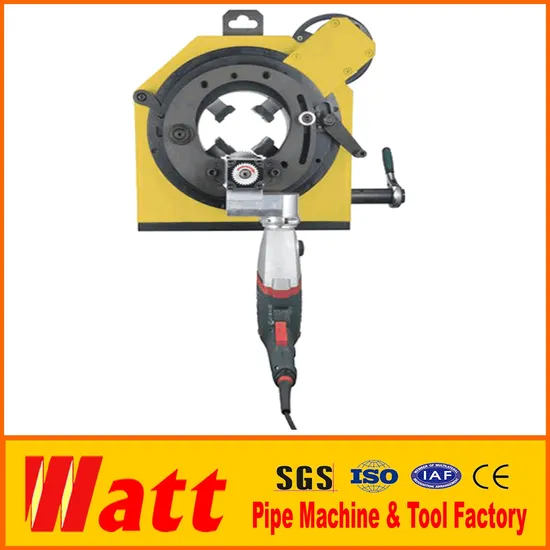

Orbital Pipe Cutting Machine
Model: E6
Cutting range: 30-170mm
Wall thickness: 1-4mm for SS, 2-12mm for cs
Product Show
Production Description
This series is Welding Preparation Manual Orbital Pipe Cutting Machine with the following advantages: High speed to cut the pipe Pipe cutting is to rotate machine automatically Use round Saw with 1300W electric motor to cut Pipe will be cut after the machine rotated 360 degree The powerful and stable electric motor have 6 choices; Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers. Angle:Beveling angle as per your required. Manual feed by hand wheel,can control the cutting speed,operate easily.
Machine Selection
Model | Range OD(mm) | Wallthickness(mm) | Cut Motor | Feed Motor |
CS | SS |
R4 | Φ15-120 | ≤12mm | ≤4mm | Metabo, 220-230V, 50-60HZ, 1Phase 1.1KW | Manual |
E4 | Φ15-120 | ≤12mm | ≤4mm |
E6 | Φ30-170 | ≤12mm | ≤4mm |
E9 | Φ60-225 | ≤12mm | ≤4mm |
E13 | Φ140-330 | ≤12mm | ≤4mm |
E16 | Φ215-420 | ≤12mm | ≤4mm |
E20 | Φ315-520 | ≤12mm | ≤4mm |
E24 | Φ346-630 | ≤12mm | ≤4mm |
E30 | Φ486-760 | ≤12mm | ≤4mm |
Order Guide
Before you place order to us, please let us know the following information: Choose the right Model Confirm your electric power supply ( Voltage, frequency and phase) Confirm the beveling angel required Confirm the welding joint required (U, V, Double V or Compound preparation) Advise your pipe material ( Carbon steel, stainless steel or others) Other special demands about machine The spare parts needed Advise your pipe wall thickness My workshop
