PLC Operated Precision Surface Grinding Machine Specification

PLC Operated Precision Surface Grinding Machine Specification

US$14,000.00-15,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
KGS1224AHS
Abrasives
Grinding Wheel
Controlling Mode
Hydraulic
Automatic Grade
Automatic
Cylindrical Grinder Type
Surface Grinding Machine
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Working Surface of Table
300X600mm-12X24 Inch
Max.Table Load
420 Kg
Table Speed
5~25 M/Min
Automatic Cross Feed of Saddle
0.5~12 mm
Spindle Motor
ABB Brand
Spindle Bearing
NSK Brand P4 Grade
Main Electrical Components
Siemens Brand
Grinding Wheel Dimensions
355X40X127mm
Main Hydraulic Components
Taiwan Brand
Automatic Down Feed Rate
0.005/0.01/0.015/0.02 /0.025/0.03/0.04/0.05mm
Transport Package
Non-Fumigation Plywood Case
Specification
2080x1850x2195mm, 2210kg
Trademark
Kaite
Origin
China
HS Code
8460191000
Production Capacity
80 Sets/Month

Product Description

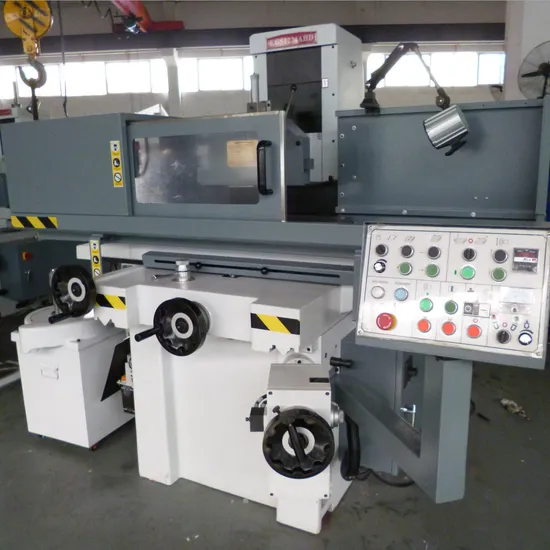

1. Picture
AHS: 3-axis automatic feed
hydraulic automatic longitudinal feed
electronic automatic cross feed
drive motor auto down feed
2. Parameters
Parameter Unit KGS1224AHS
Working Surface of Table mm 300×600 (12"×24")
Max.Table Travel mm 660
Max.Cross Travel mm 340
Distance Between Table Surface and Spindle Center mm 520
Max.Table Load kgs 420
T-Solt (Number×Width) mm 1×14
Table Speed m/min 5~25
Cross feed Handwheel 1gard mm 0.02
1 rev 5
Automatic Cross feed of Saddle mm 0.5~12
Power Cross Feed 50HZ mm/min 790
60HZ 950
Grinding Wheel Dimensions mm 355×40×127
Spindle Speed 50HZ rpm 1450
60HZ 1740
Vertical Handwheel 1gard mm 0.005
1 rev 2
Automatic Down Feed Rate mm 0.005/0.01/0.015/0.02
/0.025/0.03/0.04/0.05
Auto Lifting mm REST,ORIGIN 0.05-0.5
Power Head Increment mm/min 380
Spindle Motor kw 4
Vertical Servo Motor NM 6
Hydraulic Motor kw 1.5
Dust Collection Motor w 550
Coolant Motor w 90
Crossfeed Motor w 90
Floor Space mm 2600×2500
Packing Dimensions mm 2200×2000×2195
Net Weight kgs 1900
Gross Weight kgs 2200

3. Main Configuration of Grinding Machine
1. Spindle motor: ABB brand.
2. Spindle bearing: NSK brand P4 grade precision ball bearing which from Japan.
3. Cross screw: P5 grade precision ball screw.
4. Main electrical components: SIEMENS brand.
5. Main hydraulic components: brand from TAIWAN.
6. PLC electrical control components: SIEMENS brand.
7. Servo motor and drive: SIEMENS brand.
4. Standard Accessories
1 Grinding wheel 2 Wheel flange
3 Wheel balancing base 4 Wheel balancing arbor
5 Extractor 6 Diamond dresser
7 Leveling pad 8 Anchor bolt
9 Tool box with tools 10 Electric magnetic chuck
11 Cooling system 12 Working light

5. Optional Accessories
Serial No. Name of Article
1 rear splash guard
2 DRO (digital read out)
3 overhead parallel dresser
4 hydraulic tank oil cooling
5 cooling & suction device
6 magnetic separator
7 cooling magnetic paper filter
Note 6 and 7, select one just OK.

6. Feature
1. Well designed cast iron structure provides excellent dampening
2. Flange mount spindle cartridge for superior side grinding rigidity
3. Grinding spindle features low-maintenance preloaded high precision angular ball
bearings(NSK P4 grade)
4. "V" and flat type guide way which precision hand scrapped turcite saddle ways for smooth and long lasting performance
5. Table guideways are hardened, ground and counter-laminated with PTFE(TEFLON) to ensure high wear-resistance
6. Centralized automatic lubrication system ,supplies oil to guide-ways and lead-screws as the machine operates. This system ensures all the critical components are lubricated with the right amount of oil at all times
7. Separate hydraulic tank prevents heat and vibrations from being transferred to the machine
8. Electric components and functional modules are well arranged and packed in the electric cabinet, making maintenance and trouble-shooting easily accessible
9. Safety 24V control circuit power
