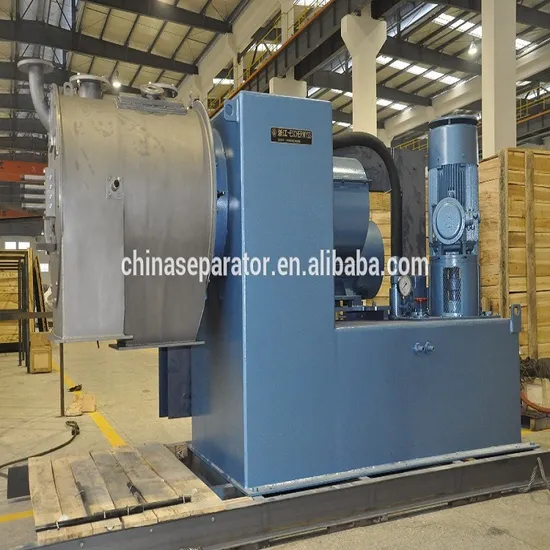

Sulzer Escher Wyss Two Stages Pusher Centrifuge for Chemical Production Line 2016

Sulzer Escher Wyss Two Stages Pusher Centrifuge for Chemical Production Line 2016

US$5,000.00-90,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
P
Type
Centrifuge
Object
Chemcial Indu.
Separation Mode
Filter Type
Operating Type
Continuous Type
Installation
Horizontal
Centrifuge Type
Horizontal Spiral Centrifuge
Condition
New
Voltage
Customization
Power
Customization
Dimension(L*W*H)
Refer
Applicable Industries
Manufacturing Plant, Food & Beverage Factory...
Key Selling Points
High Productivity
Showroom Location
Viet Nam, Thailand, Sri Lanka, Bangladesh, Malaysi
After Warranty Service
Video Technical Support, Online Support...
Color
Blue&White
Local Service Location
Egypt, Viet Nam, India, Mexico, Thailand...
Marketing Type
Hot Product 2019
Video Outgoing-Inspection
Provided
Machinery Test Report
Provided
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Certification
ISO9001:2008
Transport Package
Standard Export Package
Trademark
Zhejiang-EscherWyss
Origin
Zhejiang, China

Product Description

Product Description
Two-stage Pusher Centrifuge is a kind of perforated basket centrifuge, which works both continuously and effectively. The mixture to be separated is fed through the feed pipe to the distributor continuously and evenly distributed to the wall of first stage basket. Most of the mother-liquor which is filtered by centrifugal force from the feed departs through the sieves into the liquor-collecting casing where it will be discharged out of the machine. The first stage basket rotates and reciprocates The formed filter cake is pushed into the second stage basket as the first stage basket is rotating and reciprocating .The cake can stay in the centrifuge for a sufficient time and therefore the required Moisture content of the cake can be achieved under the powerful centrifugal force.
Afterwards, the cake is continuously discharged out of the basket. The effective washing can be carried out in the centrifuge in case of requirement of high purity of the solid product. The washing liquid and the mother-liquor can be discharged separately if necessary.Based on the very successful Sulzer Escher Wyss design, our company has improved and developed these pusher centrifuges consistently and according to the latest requirements. our pusher centrifuges P-40 to P-100 guarantee best solid-liquid separation with high and constant product quality in the basic, agricultural and petrochemical industries.


Proven
Based on the very successful Sulzer Escher Wyss design, our company has improved and developed these pusher centrifuges consistently and according to the latest requirements. our pusher centrifuges P-60 to P-100 guarantee best solid-liquid separation with high and constant product quality in the basic, agricultural and petrochemical industries.
Hydraulic pusher drive for high pusher forces Application specific optimisation possibilities: Inlet and discharge section, sieve segments, solids discharge, product washing, etc. Typical products
chemicals : glaubers salt,salt, boric acid, ascorbic acid, adipic acid, sodium chloride, iron sulphate, sodium sulphate, copper sulphate, sodium bichromate.
fertilisers : ammonium sulphate, potash, urea, calcium nitrate, potassium sulphate.
food stuff animal feeds : extraction residues, meat pulp.
benefication : rock phosphate, gypsum, ores, coal. Special designs, e.g. gas tight pusher centrifuge, explosion proof, etc.
Process
pusher centrifuge utilize continuous filtration for the separation of suspended, fast draining, crystalline, granular or fibrous solids from the liquid phase.the solids can be washed as they are transported through the basket.

Design concepts
complete separation of mechanical unit from the process area.
long and short baskets.
Main Features
*Hydraulic pusher drive for high pusher forces
*Application specific optimisation possibilities: Inlet and discharge section, sieve segments, solids discharge, product washing, etc.
*Typical products
chemicals : glaubers salt,salt, boric acid, ascorbic acid, adipic acid, sodium chloride, iron sulphate, sodium sulphate, copper sulphate, sodium bichromate.
fertilisers : ammonium sulphate, potash, urea, calcium nitrate, potassium sulphate.
food stuff animal feeds : extraction residues, meat pulp.
benefication : rock phosphate, gypsum, ores, coal.
Special designs, e.g. gas tight pusher centrifuge, explosion proof, etc.

Technical data
P-60 P-85 P-100 Unit
Basket diameter 630 800 1000 [mm]
Number of stages 1 - 2 1 - 2 1 - 3 -
Max. rotation speed 1900 1500 1200 [min-1]
Max. number of strokes 80 80 80 [min-1]
Max. G force 1271 1006 805 [g]
El. power required with NaCl, rotation / stroke 40/20 72/32 113/53 [kw]
Operating weight (with oil filling, without counterweight) 4900 8000 12 000 [kg]
Maximum NaCl throughput (dependent on feed conditions) 30 50 70 [t/h]


Dimensions
L 3200 3800 4350 [mm]
W 1700 2000 2300 [mm]
H1 without vibration isolation 1300 1550 1900 [mm]
H2 vibration isolation with concrete counterweight 2000 2200 2550 [mm]
H2 vibration isolation with steel counterweight 1550 1850 2200 [mm]
H2 vibration isolation without counterweight
(with damping elements)
1450 1700 - [mm]

Our Experiences
Our Services
1.INSTALLATION SUPERVISION AND COMMISSIONING:We can provide the service of installation supervision and commissioning, but will charge separately.
2.GUARANTEE PERIOD12 months after commissioning, but latest 16 months after date of Bill of Loading, which ever is earlier.
3.Packing: Standard Export Package
4.Country of origin: China
5.SPARE PARTS AND ACCESSORIES:we supply some parts and accessories for free.
