Hot Selling Expendable Thermocouple for Mill Steel

Hot Selling Expendable Thermocouple for Mill Steel

US$0.15-0.60 1,000 Pieces (MOQ)

Basic Info.

Model NO.
S/R/W/B
Output Signal Type
Digital Type
Production Process
Integration
Material
Ceramics
Measuring Medium
Temperature
IP Rating
IP20
Certification
Scs
Customized
Customized
9001
Yes
Transport Package
Tray
Specification
L=1000mm/900mm/800mm
Trademark
KEXIN
Origin
China
HS Code
90258000
Production Capacity
5000000PCS/Year

Product Description

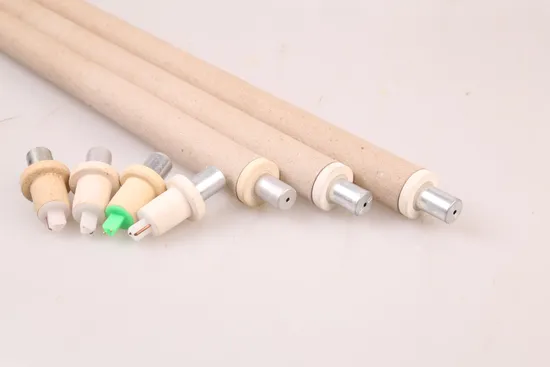

The fast reponse thermocouple is uesd foe measuring the temperature of molten steel and high temperature molten metal.It's disposable expendable thermocouple.
Our products have high precision and high stability.According to the different needs of customers.We can provide a variety of lengh,variety of types and variety of slag caps expendable thermocouple.
The technical parameter:

According the different thermocouple wire, thermocouple has four type are S,R,B & WRe Type.
According the different thermocouple connector, thermocouple head can be dividing in 602 type and 604 type.

Name
Type
Model
The best
Max
Accuracy
Wire diameter(mm)
PtRh10%/Pt
S
KS-602/604
1500-1700
1750ºC
≤±5ºC
0.05
PtRh13%/Pt
R
KR-602/604
1400-1600
1750ºC
≤±5ºC
0.05
PtRh30%/PtRh6%
B
KB-602/604
1400-1600
1800ºC
≤±5ºC
0.05
WRe5%-WRe26%
C
KC(KW5/26)602/604
1500-1700
1800ºC
≤±7ºC
0.08
WRe3%-WRe25%
D
KD(KW3/25)602/604
1500-1700
1800ºC
≤±7ºC
0.08

Type
Model
602(Round bottom)
KX-KR/S/B/W-602
604(Triangle bottom)
KX-KR/S/B/W-604

The length of the protecting tube:300mm,500mm,600mm,800mm,900mm,1000mm,1200mm,
the length can also be customized by customers.

Method of Use
1.According to the measured object and range, selecting the appropriate protection tube length and suitable temperature measuring gun.
2.Put the fast thermocouple on the temperature measuring gun, and the secondary instrument pointer (or digital) back to zero, this shows contacts good, can be measured.
3.Fast thermocouple insertion depth of the molten steel with 300-400 - mm, don't test to furnace wall or dreg ,do fast, steady, accurate, when secondary instrument to get the results, should immediately carry guns, fast thermocouple immersion time in molten steel must not exceed 5 seconds, otherwise easy to burn temperature measuring gun.
4,Raised temperature measuring gun from the furnace, take the used thermocouple down, and install a new one, pause for a few minutes, prepare the next measurement. Don't even measure even split, otherwise cause temperature fluctuations.
