High Capacity Plastic Pet Bottle Flakes Chips Recycling Crushing Washing Line

High Capacity Plastic Pet Bottle Flakes Chips Recycling Crushing Washing Line

US$66,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
FGRC-300
Material Processed
Plastic Bottle
Plastic Type
PET
Screw
Single-Screw
Automation
Automation
Computerized
Computerized
Certification
QS, GMP, ISO9001:2008, CE
Name
High Efficience ! 300-2000kg/H Waste Pet Bottle R
Main Motor
Siemens
Inverter
ABB
Control
PLC Automatic for Plastic Recycling Line
Screw and Barrel Material
38crmoala
Temperature Controller
Omron Brand
Output
300-2000 Kg/H
Packaging
Fumigation Free Wood Case Packed
Color
Optional
Material
304 Stainless Steel
Transport Package
PE Film
Specification
CE, ISO9001
Trademark
Faygo Union
Origin
Zhangjiagang City, Jiangsu Province, China
HS Code
84778000
Production Capacity
250-2000kg/H

Product Description

Product Description

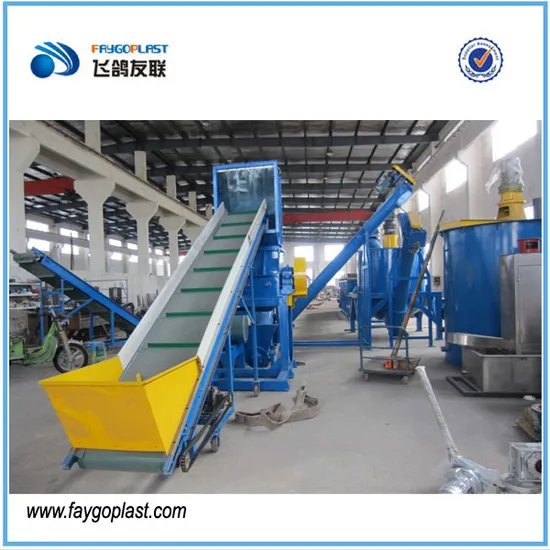

High Capacity Plastic Pet Bottle Flakes Chips Recycling Crushing Washing Line

Faygo Union Waste plastic PP PE Film, Pet Bottle Crushing, Washing and Drying line
To make plastics more sustainable, recycling needs to be massively scaled up worldwide. Most of the plastic recycling that occurs today is a type known as mechanical recycling. Plastic waste is collected, cleaned, sorted, shredded and then melted down and formed into pellets to be sold to producers of recycled plastic products.
We, FAYGO UNION Machinery Company provides high-efficiency full solution of waste plastic recycling.With high efficient process, we can make clean plastic scraps from waste plastics to recycled pellets by the lowest cost.
This line is mainly used to recycle the waste plastics, such as PE HDPE LDPE LLDPE PP BOPP Film, bags, PET bottles, Jerry cans, bucket, basket etc. The waste dirty material will go through crushing, washing, drying, and collecting process, and turn to be clean flakes for pelletizing.The production capacity of our crushing and washing line can be 100kg/h to 2000kg/h.
Please contact us to share more information about the waste material situation
and your production demand, then we customize the full solution for you!

Application


Product Parameters

Model FGR300 FGR500 FGR800 Remark
Belt conveyer 1.1kw 1.1kw 1.5kw Washing and
Squeeizing part
crusher PC800,37kw PC1000,45kw PC1200,55kw
Screw loader 3kw 3kw 4kw
Friction washer 7.5kw 7.5kw 11kw
Float washer 2.2kw 3kw 4kw
Squeeaing Pelletizer 55kw 75kw 110kw
Air cooling system 4kw 5.5kw 7.5kw
Conveyer 1.1kw 1.1kw 1.5kw Pelletizing Line
Single screw extruder 90kw 132kw 160kw
Screen changer and die 1.5kw 2.2kw 3kw
pelletizing system 1.1kw 1.5kw 2.2kw


Product Details
PET Bottle Crushing & Washing & Drying line 300kg/h~1500kg/h
PP/PE Film Crushing & Washing & Drying Line 300~1000kg/h
PP PE PET Granulating Recycling line 100kg/h~500kg/h
Technical data
Extruder model Motor power Max capacity Pelletizing motor Air blower
LSZ51/105 22kw 120kg/h 1.5kw 2.2KW
LSZ65/1323 37kw 260kg/h 2.2kw 3kw
LSZ80/156 55kw 400-500kg/h 3kw 3KW
LSZ92/188 90/100kw 650-800kg/h 4kw 4KW

For more details about our waste plastic recycling machine, welcome to send you requests to our company, and we will give you reply in time.
Hot Sales Plastic Machine Recommend:
Automatic Pet Plastic Bottle Moulding Machine & PVC Profile Extrusion Machine & Waste Plastic PP/PE Washing Crusher Recycling

Company Profile
Jiangsu Faygo Union Machinery is a professional manufacturer of plastic machines. It occupied an area of 18000 square meters. With years of development, its products covers plastic extrusion lines, plastic blowing machine, plastic recycling machine, air compressor etc.
Stick to the company idea is making good machine, being good person, Faygo Plast alwasy provide customers with high quality machines. Warmly welcome to visit our factory (next to Shanghai)!
FAYGO UNION GROUP has 3 branch factories.
1.FAYGOBLOW which design and make blow molding machine for PET, PE etc. FAYGOBLOW has 5 patents of invention, and 8 patents utility models. FAYGO PET blow molding machine is one of fastest and most energy-efficient design in the world.
2.FAYGOPLAST, which make plastic extrusion machinery, including plastic pipe extruding line, plastic profile extruding line. Especially FAYGOPLAST can supply high speed up to 40 m/min PE,PPR pipe line.
3.FAYGO RECYCLING, which research new technology in plastic bottle ,film recycling processing and pelletizing.
Now FAYGO UNION GROUP has more than 500 customers from different countries.
Our factory is located in Zhangjiagang city, covers an area of 26,650 square meters. It only takes around two hours driving from SHANGHAI international airport. Welcome to visit our factory, and hope to cooperate with you in the near future.
FAQ
Q: Your company is a transactional company or an industrial manufacture factory?
A: We are an industrial manufacture factory which locates in Zhangjiagang city.
Q: All of your products are made by your self or compacted via purchasing the others?
A: We have independent technical team who focus on making machines, all the products are made by our technical team.
Q: What is the ability of your factory?
A: About 100 lines per month.
Q: Do you have any other services about your products?
A: We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
Q: How do you make the quotation for clients?
A: The price depends on quality and performance but the clients should be satisfied first.
