US$20,000.00-30,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
PVC-500 (ME031)
Application
Viscous Fluid
Application Area
Chemical, Daily Chemical, Food, Pharmaceutical
Control System
PLC Control
Main Material
Alloy Steel, Carbon Steel, Stainless Steel
Mixing Capacity
500 L Working Volume
Speed Control
Variable Speed
Automatic Grade
Semi-Automatic
Construction Material
SS304; SS316L; Carbon Steel
Power Supply
220V/3pH; 380V/3pH; 415V/3pH, etc
Polishing
Dull Polishing; Mirror Polishing
Vacuum Operation
Available
Transport Package
Wooden Case
Production Capacity
100 PCS/Year
Product Description
Product Parameters
Model | Total volume, liter | Working volume, liter | Emulsifying motor, kW (*) | Scraper motor, kW (*) | Length (mm) | Width (mm) | Height [closed] (mm) | Height [open] (mm) |
PVC-8 | 10 | 8 | 2.2 | 0.37 | 1,360 | 1,250 | 1,320 | 1,500 |
PVC-50 | 70 | 50 | 4 | 0.37 | 1,820 | 1,710 | 1,610 | 1,900 |
PVC-100 | 125 | 100 | 7.5 | 0.55 | 2,050 | 1,920 | 1,740 | 2,100 |
PVC-150 | 180 | 150 | 11 | 0.75 | 2,230 | 2,010 | 1,820 | 2,200 |
PVC-300 | 350 | 300 | 18.5 | 1.1 | 2,810 | 2,180 | 2,030 | 2,500 |
PVC-500 | 580 | 500 | 30 | 2.2 | 3,110 | 2,580 | 2,320 | 3,000 |
PVC-1000 | 1,200 | 1,000 | 55 | 4 | 3,270 | 2,850 | 3,250 | 4,000 |
1.kWs are product dependent and might vary.
2.Customized sizes are available against request.
3.All specifications are as accurate as is reasonably possible, but they are not binding.
4.PerMix reserves the right to modify the design without notice.
Product Description PerMix PVC series Vacuum Emulsifying Mixers are especially designed and used extensively in production of Mayonnaise, Ketchup, Dressings, Chocolate Fillings, Chocolate Frostings, Sauces, etc; but can also be applied in the food, cosmetic, chemical and pharmaceutical industries.
The PerMix Vacuum Emulsifying Mixer is more than a single emulsifying mixer, but a vacuum mixing, dispersing and emulsifying system that is used whenever a high quality and absolutely air-free product is required as with the PerMix PMS series Vacuum Multi-shaft Mixer, but at a lower cost.
PerMix PVC series Vacuum Emulsifying Mixers cater to various work processes which normally require more machinery in one system. In the PVC Vacuum Emulsifying Mixer, base materials can be mixed in liquids, dispersed and homogenized while at the same time all air is removed. This produces stable emulsions with a long shelf life in storage.
How It Works:

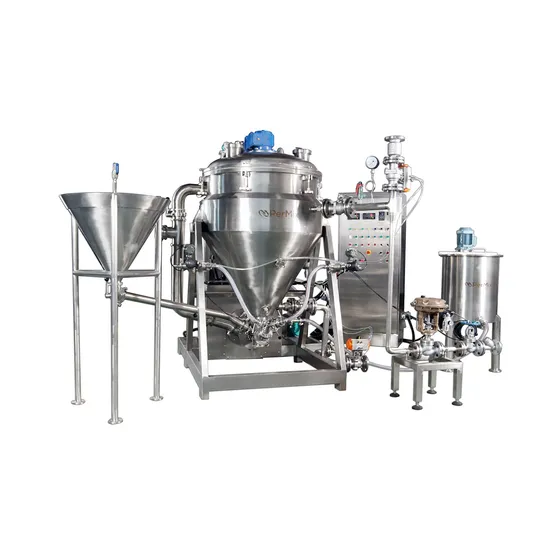

PerMix PVC Vacuum Emulsifying Mixer includes a mixing tank (with or without jacket), an internal slow running anchor mixer, and an external inline high shear mixer.
The inline mixer has several inlet ports, and the main inlet is connected with the bottom discharge of the tank, with other two inlets connected with other liquid and powder tanks. The inline mixer's outlet goes back to the top section of the mixing tank.
The basis of this plan is the PerMix innovative inline mixer, which has a mixing, dispersing and emulsifying head with multi-working chambers. It can be supplied with mixing vanes, dispersion components or emulsifying tools. For each operation, these components can be interchanged or combined so that the mixer operates to suit every product possibility.
The pump action allows the product to circulate from the feed hoppers through the working hopper continuously. All the parts that come in contact with the product are stainless steel.
The following options/features are available:
Jacket for heating/cooling of the mixing chamber Pneumatic/Motorized elevation for the hopper cover By-pass lobe pump for low shearing mixing and discharging Pre-mix tanks for liquid materials Volumetric flow meter for automatic OFF of liquid feeding Manual feeding hopper for small ingredients Mobile under-frame Fully automation control of the vacuum emulsifying system Gallery
Our Advantages
Company Profile PerMix means "Perfect Mixing Technologies"! PerMix is a Chinese-Israeli cooperative venture with the famous Srugo family in Israel, who has been active and reputed in industrial mixing and processing equipment since 1954. PerMix strong advantages over other competitors are 60 years of Designed-in-Israel know-how along with competitive Made-in-China prices! (1) About SRUGO (Israel): SRUGO MACHINES ENGINEERING was established in 1954 in Argentina by the late industrialist, Jakob Srugo. In 1965 the company moved to Israel and operated from Bat-Yam. In 1977 SRUGO moved to Netivot and since then operated a modern plant with an adaptable production line to provide an efficient solution for each customer's requirements. SRUGO exported its products since 1990 to Western Europe, United States, Australia, Eastern Europe, the Middle East and several developing countries. (2) About PerMix: In 2010, Mr. Arie Srugo, the second generation of SRUGO family, sold the whole company. After three years validity period of confidential agreement, in 2013, he decided to work with a Chinese company in order to take the advantage of the lower cost with an improving technology, set up PerMix, and target this company to be present in global market. PerMix Tec Co., Ltd. is established as the professional supplier of industrial mixing and other processing equipment. Our state-of-the-art technology and know-how in this section is originally from Israel. Along with the low labor cost advantage in China, PerMix is born to be your partner for the cost effective solutions in powder, paste and liquid mixing applications. PRODUCT RANGE: We are not only able to offer the single machine with modern appearance and advanced technique, but also to offer the full line system to save your time, which is one of our strong points. With our engineers' decades of experience in this area, PerMix is capable to offer the most suitable solution for any industry that has a demand for mixing. CUSTOMIZED SOLUTIONS: Despite the standard range we are able to design the equipment according to the specific requirements of our customers. PerMix engineers evaluate the customer's mixing and processing problems in order to translate process parameters into soundly engineered and dependable mechanical equipment. PerMix welcomes the opportunity to discuss specific requirements or problems and invites customers to compare and determine for themselves which equipment is best suited for their needs. APPLICATIONS: PerMix has been building a good reputation in both local and export markets over these years. Our products are widely used to serve a variety of industries such as fine chemicals, specialty chemicals, petrochemicals, painting, ink, cosmetics, pharmaceuticals, agriculture, food, beverage, biology, nano materials, paper, adhesive, plastic, electronics, batteries, wastewater, etc. Customers
FAQ Q: What is your price level compared with European suppliers and local Chinese suppliers?
A: Depending on the machine type and size, our price level is 30%-60% less than the European suppliers and 5-15% higher than the big local suppliers.
Q: Are you able to provide tailor-made design and production for the mixers?
A: Yes, in fact more than half of our mixers are tailor made, which is one of our strong points.
Q: Are you able to design and produce other processing equipment?
A: We are open to discuss about it.
Q: Can you provide machines to OEM customers, meaning to label their brands on the machines?
A: Yes we are doing it a lot. We have several OEM partners in the USA.
Q: Do you have agent network out of China?
A: Yes we do have agents but only in some countries, for example in USA, Germany, Poland, Spain, Denmark, Turkey, Argentina, etc. We are still looking for more agents because we believe to work with agents is the best way to do business.
Q: What is your delivery lead time of the mixing equipment?
A: Depending on the size and level of customization, but usually it is from 6-14 weeks.
Q: How do you pack and ship the mixing machines?
A: For machines don't require full container loading, we will pack them in wooden case. For FCL (full container loading) shipment, we will just wrap the machines in plastic films and fix them in the container. The shipment can be either by air or by sea.
