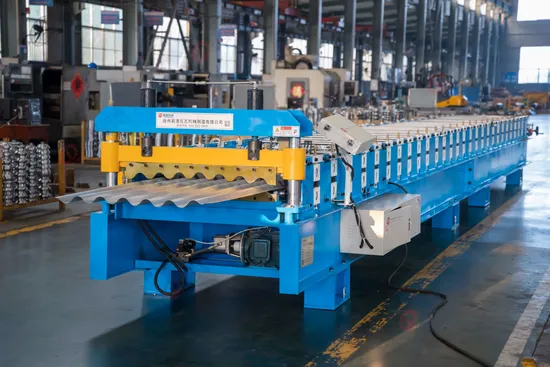

Forward Corrugated Sheet Metal Roofing Sheet Making Machine
| US$13,000.00-15,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
YX35-135-780
Tile Type
Colored Steel
Certification
CE, ISO, SGS
Condition
New
Customized
Customized
Usage
Roof
Transmission Method
Electric
Suitable Material
PPGI/PPGL/Gi/Gl
Suitable Thickness
0.3-0.8mm
Profile Drawing
Customized
Voltage
as Customer′s Request
Speed
20-40m/Min
Delivery Time
40-60 Days
Loading Method
FCL
PLC
Delta
Touch Screen
Touch Win
Encoder
Omron
Inveter
Saj
Electric Components
Delixi or Chnt
Transport Package
Export Package
Specification
20GP
Trademark
FORWARD
Origin
China
HS Code
8455221000
Production Capacity
30 Sets/Month
Product Description
| No. | Iron Sheet Making/Press/Rolling Machine | |
| 1 | Suitable material | PPGI/Aluminium sheet/galvanized sheet/various sheet plates |
| 2 | Thickness of coil sheet | 0.15mm |
| 3 | Coil width | 914mm |
| 4 | Material of main frame | 350H steel |
| 5 | Diameter of Soild shaft | 70mm, high grade 45# steel |
| 6 | Roller | Quenched and tempered treatment, hard chrome coated 0.05-0.07mm |
| 7 | Thickness of middle plate | 16mm |
| 8 | Forming station | 16stations |
| 9 | Drive type | By chain(1.0 inch) link bearing model 6210 |
| 10 | Power of main motor | 5.5kw with Cycloidal reducer |
| 11 | Power of pump station | 3kw |
| 12 | Forming speed | About 30-35m/min |
| 13 | Hydraulic cutting | Controlled by PLC |
| 14 | PLC | DELTA(TAIWAN)/Mitsubishi |
| 15 | Material of razor blades | Cr 12, quenching 58-62ºC |
| 16 | Frequency converter | It has the advantage of slowing down before cutting, to ensure the length accuracy(±1mm, far better than industrial standard ±3mm). |
