Plastic Wood Rubber Paper Crusher Recycling Granulator

Plastic Wood Rubber Paper Crusher Recycling Granulator

US$19,000.00-29,000.00 1 Set (MOQ)

Basic Info.

Model NO.
DGH
Certification
CE, BV
Structure
Horizontal
Motor
Weg
Electronic Components
Kloeckner Moeller
Safety Switch
Schmersal
PLC Cabinet
Rittal
Bearings
Heavy Duty Bearings
Knives
Knives Are Externally Adjustable
Rotor
Wide Choice of Rotor Variations
Mechanical Material
Q345
Knife Materials
D2/ SKD11
Rotor Diameter
350-800mm
Screen Size
10-40mm
Transport Package
Stretch Film/ Wood Pallet
Specification
DGH350-800
Trademark
DGM
Origin
Wuxi, China
HS Code
84778000
Production Capacity
2000sets Per Year

Product Description

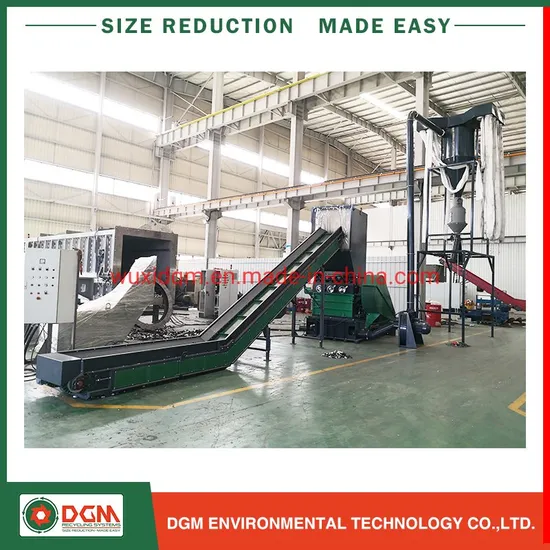

Plastic Wood Rubber Paper Crusher Recycling Granulator
Descriptions The DGH Heavy Duty Granulator has a centrally hinged two-piece cutting chamber with a robust welded steel construction, with the upper and lower sections of the housing meeting horizontally. Reversible stator knives with double cutting edges are fitted as single elements to the lower section of the housing, allowing multiple re-sharpening and adjustment of the stator knives. There is a hinged screen cradle and hinged door for easy screen access.
The rotor is a heavy duty paddle type design with knife cover plates to protect the blades when processing abrasive applications. The knife mounting bolts are screwed into the mounting plates as opposed to the rotor. All knives are manufactured from chrome nickel tool steel as standard, but when processing applications that are particularly abrasive the DGH granulators can be fitted with a specially designed wear resistant rotor utilizing wear resistant steel parts and hardox facing.
The v-cut cutting geometry offers distinct advantages over other rotor designs, including higher throughput with reduced power consumption, better quality cut, and lower noise levels. Specially designed knife setting jig means that the knives can be adjusted from outside the machine, significantly reducing the downtime required to change/set knives.
The base frame has a solid welded construction with anti-vibration rubber feet to reduce vibration and noise. The drive motor is mounted on tension rails to allow easy adjustment of the V-belt tension. Integrated suction trough for material discharge. Specially designed hopper with 3 sets of curtains to prevent material flybacks. Integrated rundown safety device prevents access to the rotor until it has come to a complete stop. A safety switch prevents machine startup when the front panel is open and the machine features emergency stop buttons on the machine body and control panel.
Specificatoins
Item UNIT DGH350/500 DGH500/600 DGH600/800 DGH500/1000
Rotor Diameter mm 350 500 600 800
Rotor Width mm 500 600 800 1000
Rotor Knives pcs 3*2/5*2 3*2/5*2 5*2/7*2 3*2/5*2
Stator Knives row 2/3 2/3 2/3 2/3
Cutting Chamber Dimensions mm 516*640 636*590 790*695 985*590
Motor Power kw 15-22 37-55 55-90 55-90
Dimensions A mm 1800 2080 2300 2230
B mm 1600 1850 2100 2000
C mm 1250 1530 1850 1950
D mm 770 940 1120 1350
E mm 2500 2620 3000 2860
Item UNIT DGH700/1000 DGH800/1200 DGH800/1600 DGH800/2000
Rotor Diameter mm 700 800 800 800
Rotor Width mm 1000 1200 1600 2000
Rotor Knives pcs 5*2/7*2/9*2 7*2/9*2 7*4/9*4 7*4/9*4
Stator Knives row 2/3 2/3 2/3 2/3
Cutting Chamber Dimensions mm 985*800 1150*915 1570*915 1960*915
Motor Power kw 75-110 110-160 132-200 160-200 *2
Dimensions A mm 2800 3100 3140 2740
B mm 2500 2800 2800 2600
C mm 2060 2800 2800 3460
D mm 1290 1960 1960 2250
E mm 3420 4250 4250 4775

Layout
Features Deflector wedge - V-cut technology Heavy duty bearings Oversized external bearing housings Knives are externally adjustable Robust welded steel construction Wide choice of rotor variations Electrical hydraulic control - to open housing Electrical hydraulic control - to open screen cradle Replaceable wear plates Amp meter control
Options Extra flywheel Double infeed hopper Roller feeder Mounted screw feeders in hopper Winding protection Metal detector Metal separator Bespoke colour scheme Increased motor drive
Applitions PLASTICS RUBBER WOOD BIOMASS PAPER ALTERNATIVE FUELS (RDF/SRF) DOMESTIC & COMMERCIAL WASTE
Factory
Since its foundation DGM Recycling Systems have been at the forefront of innovation and technology in the development of cost effective and reliable recycling solutions. As a wholly owned subsidiary of Miracle Automation Engineering Group, a pioneer in automation systems for the automotive and material handling industries, DGM continues to strive for excellence in the field of size reduction and recycling.
Suppliers
Certificates
All of our shredders and granulators have been approved CE certification.
Packaging & Loading
1. Several layers of plastic wrapping film and cardboard to protect plastic recycling machine from dust and moisture.
2. Plastic packing strap belt to fasten wrapping film and machines, also to fix machines in containers.
3. Wooden case is used as the outside package and spare parts when choosing by LCL, air or international express.
4. Excellant logistic team to guarantee the shredder and granulators machines to be safely shipped to customers appointed loaction.
5. If you have any other request for the packaging or loading, we will try our best to meet your demands.
FAQ
Q1: Are you a trading company or a factory ?
DGM is a Factory with 10 years experience in machinery manufacturing, and 20 years experience in technology.
Q2: Will you provide pre-sale services?
DGM consists of experienced specialists, we will offer a suitable solution according client's requirement in time.
Q3: Is your after-sales service excellent?
At DGM we have a highly trained team of service personnel to handle all manner of customer service enquiries. Whether it is replacement parts, technical assistance, or just general operation advice we offer our customers genuine 24/7 support and after sale service. We have an international network which ensures wherever you are in the world you receive localized high level support.
Our technical team has decades of experience in the field of size reduction and recycling and we are on hand to offer assistance in installation, commissioning, staff training and general technical assistance.
Q4: Where is your factory?
Address: No.1.Fengqi Road, Huishan District , Wuxi City, Jiangsu Province, China
Q5: what is your contact informatoin?
Fax: +86 510 8357 0210
Telephone: +86 510 8357 2002
Mobile +86 18762812155
Q6: Could we visit your factory and test the machine?
We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.
