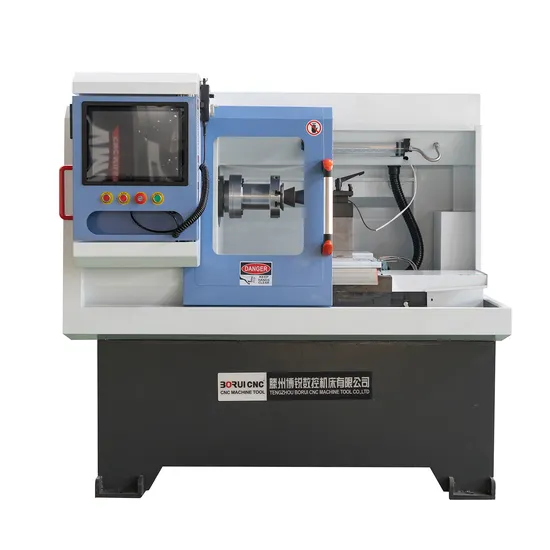

Wheel CNC Lathe Machine Ckf160 Lathe CNC Revolver Machine
| US$3,650.00-5,650.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CKF160
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Swing Over Bed
720
Maximum Machining Wheel Diameter
640
Max Processing Length
500
Shank Size
25X25
Machining Precision
It6~It7
Surface Finishment
Ra0.8~1.6
Transport Package
Free Fumigation Plywood Packaging Steel Base
Specification
1900*1400*1750
Trademark
BoRui
Origin
Shandong China
HS Code
8458110090
Production Capacity
500pieces/Years
Product Description
CKF160 Economical automatically wheel Rim/hub/surface Repair CNC Lathe machine with high precision Product DescriptionThe machine through the numerical control system , This machine could process different inner bore, ex-circle, circular conical surface and screw thread, especially suitable for the small and middle-sized shaft and plate work piece from rough processing to finish processing in batch. It has advantages like higher automation, simpler programming and higher accuracy .
The main feature :· 1.Superaudio quenching guide rail with excellent wear resistance and durable service life , High rigidity single spindle casting ,frequency conversion motor and constant speed moving· 2.Reliable quality:Every control system equipped from world famous brand like:GSK ,Fanuc , siemens.· 3.Automatic lubrication system minimize the damage on the machine ,extend the service life· 4.four or six-station knife tool optionalThe main specification :
| Item | Unit | Specification |
| The machine max swing diameter | mm | 720(28") |
| Maximum machining wheel diameter | mm | 640(25") |
| Max processing length | mm | 500 |
| Probe measurement ways | | X axis,Z axis |
| Probe measurement method | | Contact type |
| Probe specifications | mm | φ3×40,φ6×50 |
| Machining precision | | IT6~IT7 |
| Surface finishment | um | Ra0.8~1.6 |
| Spindle transmission type | | Stepless changing speed |
| Spindle speed range | rpm | 150~2800 |
| Main motor power | kw | 4 |
| Fast moving speed | mm/min | X axis :5000 Z axis :8000 |
| Repeat precision | mm | X axis :0.01 Z axis:0.015 |
| Turret rest | | 3 position fixed |
| Shank size | mm | 25×25 |
| Machine size (L×W×H) | mm | 1900×1400×1750 |
| Machine weight | kg | 1500Kg |
