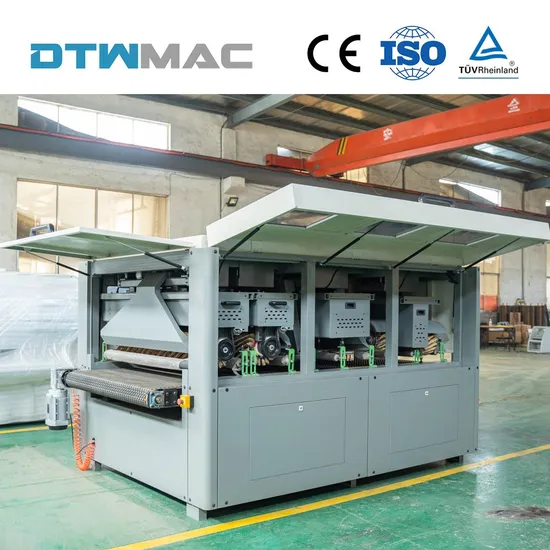

DTWMAC Woodworking Sander for Door

DTWMAC Woodworking Sander for Door

US$22,800.00-25,800.00 1 set (MOQ)

Basic Info.

Model NO.
DT1400-P6
Automatic Grade
Automatic
Variable Speed
Variable Speed
Certification
CE
Customized
Customized
Condition
New
Color
Customized
After-sales Service
12 Months
Stations
4
Roller Diameter
300mm
Disc Roller Quantity
9
Net Weight
1240kg
Transport Package
Seaworthy Package
Specification
1300mm width
Trademark
DTWMAC
Origin
China
HS Code
8465930000
Production Capacity
100PCS/Year

Product Description

Detailed Photos
Product Parameters
Max Working Width 1400mm
Max Working Thickness 8-150mm
Min Working Length ≥430mm
Roller Speed Inverter Control
Conveyor Speed 3-10m/min
Small Roller Motor 1.1KW*2
Small Roller Swing Motor 0.37KW
Small Roller Lifting Motor 0.18KW
Disc Roller Motor 1.5KW
Disc Roller Swing Motor 0.37KW
Disc Roller Lifting 0.18KW
Long Roller Motor 1.5KW×2
Long Roller Swing Motor 0.37KW *2
Long Roller Lifting Motor 0.18KW*2
Conveyor Motor 2.2KW
Conveyor Lifting Motor 0.55KW
Total Power 11.00KW
N. W. 3420KG
Packing Dimension 3830*2100*1900mm
Using Dimension 3750*1800*2120mm

Product Description
Inner structure
Cross Rollers
Two group of cross rollers (total 9 pieces) rotate individually and move forward at the same time, so that to make sure of the grinding effect of the surface and transverse groove.
Disc Rollers
Two groups of disc brushes (total 9 disc brushes) rotate in opposite directions, and the speed of the roller is adjustable by frequency control. With the board own movement and the disc brushes rotating, the machine can realize the sanding of uneven surface and corner from different angles.

Lengthways Rollers
Two groups of long brush rollers are counter-rotating and can be lifted individually, which guarantee the sanding effect of all-round uneven surface and R-angle.
Features DTWMAC DT1400-P6 brush sander is widely used for the sanding of paint-free door, veneer door, mold pressing door, solid wood door, MDF cabinet, plywood, MDF, baby crib and furniture with PU PE UV Delta screen and PLC control panel makes it more easier to operate. Delta inverters and Schneide electrics With memory function, it can input 50 different sanding material data with one click. With linear guide swing device, the swing of stations are more stable. With modular design, each station is controlled by separated inverters. Each station can be pull out which is convenient for sandpaper changing. Hermes sandpaper from Germany with 80-600 grit for choice. DTWMAC Support customization services.
Packaging & Shipping
FAQ
1. Do you offer installation?
DTWMAC wood sanders are assembled and adjusted well before package. It's very easy to install the machines at your workshop when you receive them. Videos guidance and English manuals can help you in installation easily.
2. Where can we buy the replacement parts?
Most of DTWMAC wood sander parts are ready in stock. They can be sent to you directly from our warehouse with cost price.
3. What technical support do you offer?
* Technical support by phone, email, video
* English version video and manual
* Engineer available to service machinery overseas if required
4. Can you customize the machine for our products?
All wood sanders in DTWMAC can be customized according to clients' requirement not only the appearance but also the inner structure.
5. What's your advantage comparing with other suppliers?
With 10 years of production and export experience, DTWMAC has built a full system in pre-sale service, production process, quality control and after-sale service. This will help our clients to save time and cost and also make sure to provide them high quality machines.
6. Are you a manufacturer or a trading company?
DTWMAC is the woodworking machinery manufacturer with 10 years of production experience while we also know the whole process of exporting. That's why you can rely on us not only for machine quality but also for our services.
7. What kind of products do you sell?
DTWMAC mainly manufactures wood sanders, but we sell different woodworking machines including sliding table saw, edge bander, press machine, drilling machine, gluing machine, and other machines that you need for woodworking. That is because we have been in woodworking machine field for over 10 years and we have reliable cooperative factory for different machines
