Sanding Machine Polishing Sander for MDF / HDF / OSB / Particle Board / Chipboard / Plywood for Wood Furniture

Sanding Machine Polishing Sander for MDF / HDF / OSB / Particle Board / Chipboard / Plywood for Wood Furniture

US$37,000.00-48,000.00 1 set (MOQ)

Basic Info.

Model NO.
MH-SM
Type
Sanding Machine
Automatic
Automatic
Certification
CE, ISO
Name
Plywood Sanding Machine
Max Sanding Width
40-1300mm
Sanding Length
More Than 780mm
Thickness
2.5-80mm
Abrasive Belt Speed
25m/S
Abrasive Belt Size
1300*2620mm
Voltage
380V
Main Motor Power
75kw*2PCS
The Capacity of Dust Collection
30000m3/H
Weight
12000kg
Transport Package
Plastic Film
Specification
2400*2300*3000mm
Trademark
MINGHUNG
Origin
Linyi City, China
HS Code
846593
Production Capacity
1000sets/Year

Packaging & Delivery

Package Size
600.00cm * 230.00cm * 260.00cm
Package Gross Weight
10000.000kg

Product Description

Sanding Machine Polishing Sander for MDF / HDF / OSB / Particle Board / Chipboard / Plywood for Wood Furniture



01 PRODUCT DESCRIPTION
This is double sides plywood calibration sanding machine, for calibrating and sanding plywood thickness, make plywood thickness balance and accurate, will be helpful for improve your plywood quality.
Sanding machine has different specification and types, it can be single side, also can be double sides, it can be one sanding head, two sanding heads, and three sanding heads, its function can be mainly for sanding plywood thickness, also can be polishing plywood surface, and their sanding capacity also can be different. So everytime we will offer the suitable sander according to each clients own conditions and requires.
This type we introduced is double sides, so it can sanding both plywood sides at the same time, high efficiency and improve production capacity. For plywood sander production, it is high requires for the production technolohgy, because it requires high accuracy, therefore, the production process is more complex. If sanding machine can not keep stable or accuracy, you just waste money. so for buy sanding machine, do not buy the very cheap type. it will not work well.

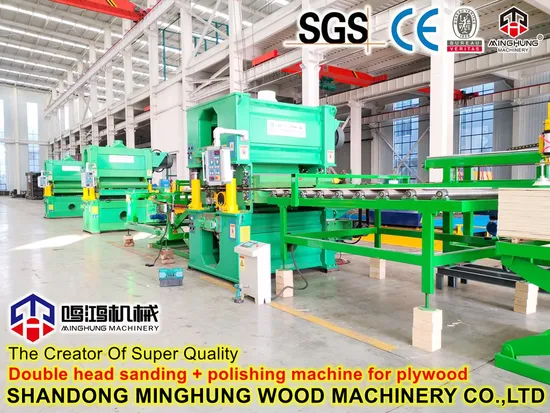

02 PRODCUT DISPLAY
03 PRODUCT FEATURES
1. Multi-stage Sanding System: Sanding machines typically feature multiple sanding heads or sanding belts, allowing for progressive sanding from coarse to fine, ensuring the board surface is even and smooth.
2. Variable Frequency Drive Technology: Variable frequency drives control the motor speed of the sanding machine, making the sanding belt speed adjustable to suit different materials and sanding requirements.
3.Numerical Control Technology: Modern sanding machines are equipped with numerical control systems that precisely control sanding parameters such as belt speed, sanding pressure, and feed speed.
4. Tensioning and Tracking Systems: The belt tensioning system ensures the sanding belt maintains proper tension during operation, preventing slipping or breakage.
5. Automatic Thickness Measurement and Adjustment: Equipped with thickness measurement sensors, these machines detect the board thickness in real time and automatically adjust the sanding head position to ensure uniform thickness after sanding.
6. Automatic Loading and Unloading System: Automated loading and unloading systems reduce manual handling, increasing production efficiency.
04 PACKAGING&SHIPPING


05 COMPANY PROFILE
MINGHUNG MACHINE,was founded in 1998, located in Linyi city, Shandong Province China, commit to provide the full sets of Plywood production line. Minghung Wood machinery, Minghung trade, Jianzhong trade, Hungyou Intelligent Equipment Industry Research, belong to us.
With more than 20 years production experience, and adhere to continuous innovation and improvement, with specialized R&D center, obtained a number of research and development patents, with experienced technians and engineers, and professional sales team and after-sales team, We have beome one China's high-end plywood machinery manufacturing enterprise.
We can provide Veneer production line, Veneer drying line, Core veneer composing line, Plywood assembly line, Veneer patching machine, Glue machine, Cold press machine, Hot press machine, Film faced hot press machine, Plywood edge trimming machine, Sanding machine, Plywood panel turnover machine, Lift table and so on for you.
06 WHY CHOOSE US?

Welcome contact us for more information about sanding machine.
