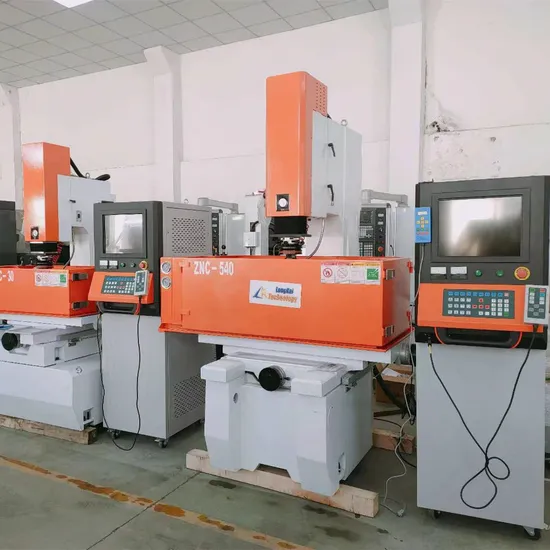

Znc EDM Machine High Precision Znc540 Electric Erosion Die Sinking Machine

Product Description

Znc EDM Machine High Precision Znc540 Electric Erosion Die Sinking Machine
1. Characteristics
1.The structure of the machine is designed by computer analysis of tension, compression and reaction force, so as to maintain the mechanical precision forever.
2,The castings are made of FC-35 resin sand. They are durable and have the same precision after natural wind and various treatments.
3,Machinery design uses computer aided design (CAD) to persist in processing the invariant structure of the machine body, and ensure the processing accuracy.
4,The sliding track adopts V-shape and plane design. It slides lightly under heavy pressure and has excellent precision.
5,The worktable surface is ground by high-wave heat treatment, and it is not easy to wear.
6,Both X and Y axes adopt imported or equivalent double nuts ball screw, which is light in transmission and easy to use.
7,The spindle adopts linear sliding track, which ensures the precision and durability forever.
8The trawler adopts imported "Tiefron" rail veneer.
Technical Indicators of Distribution Box:
Max. operating current≥60A Max. power consumption≤6KVA Max.Machining Speed≥450mmз/min
Min. electrode consumption≤0.3% RoughnessRa Surface RoughnessRa≤0.3µm output voltage90-260V
17-inch Famous LCD Display Taiwan Industrial Computer Taiwan imports dedicated circuit boards and world-renowned brand electronic components.
The standard configuration of spark machine is as follows:
Z-axis adopts Swiss-made or the same grade linear sliding track, Japanese NSK precision bearing.
Taiwan C7 X, Y ball screw, high precision Z-axis plastic steel wire rod.Japanese original "Sanyang" servo motor. W-axis deceleration motor (1:25 60W or 90W).
Taiwan imports precision handwheels, dial sets, electrode chucks, Grand Full pumping motors.
Quartz lamps, fire extinguishers, liquid level switches, door seals, oil throats, high-pressure oil pipes, pressure gauges are all imported from Taiwan.
Precision optical ruler (three axes).
Imported filter: 2
Machine paint is automobile paint, durable, beautiful and non-fading.
3. Functional characteristics of electronic control cabinet
1.The circuit design and key components of the cabinet are imported from Taiwan. The whole machine adopts three-axis optical ruler display and Z-axis numerical control to ensure accuracyThe direction of the optical ruler can be arbitrarily changed by setting the internal code.
2. It adopts the most advanced industrial control motherboard with strong function, good stability and simple operation. As long as a few parameters such as Z-axis depth are input, the matching processing parameters can be transferred from the rich expert database system, which can be automatically completed from rough processing to finish processing at one time.
3.Special MOSFET discharge circuit design is adopted, which has the advantages of fast processing speed, low electrode loss, smoother die surface and more uniform thickness. It can also process deep hole, blind hole, side and large area, and has functions of automatic slag discharge and carbon deposition alarm.
4.The color picture is composed of more than ten colors, which can be changed arbitrarily according to the operator's preference and has a more novel feeling.
5.It has the functions of metric system and English system, Chinese and English exchange, easy to operate.
Functional characteristics of electronic control cabinet.
1.The circuit design and key components of this cabinet are imported from Taiwan. The whole machine adopts three-axis optical ruler display and Z-axis numerical control to ensure accurany, and the direction of optical ruler can be arbitrarily changed by internal code setting.
2. It adopts the most advanced industrial control motherboard with strong function, good stability and simple operation. As long as a few parameters such as Z-axis depth are input, the matching processing parameters can be transferred from the rich expert database system, which can be automatically completed from rough processing to finish processing at one time.
3.Special MOSFET discharge circuit design is adopted, which has the advantages of fast processing speed, low electrode loss, smoother die surface and more uniform thickness. It can also process deep hole, blind hole, side and large area, and has functions of automatic slag discharge and carbon deposition alarm.
4.The color picture is composed of more than ten colors, which can be changed arbitrarily according to the operator's preference and has a more novel feeling.
5.It has the functions of metric system and English system, Chinese and English exchange, easy to operate.
Solemnly declare that:
All the above products are guaranteed free of charge for one year and maintenance for life.
The above configuration and parameters may be changed. Please confirm and sign the bill.
