US$11,000.00-13,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Application
Paper, Plastic, Leather, Fabric
Cutting Accuracy
+/-0.1mm
Safety Device
Infrared Radiation/Anti Collision/Emergency Stop
Transport Package
Wooden Box
Specification
1600m*2500*1115
Production Capacity
100sets/Mounth
Product Description
production

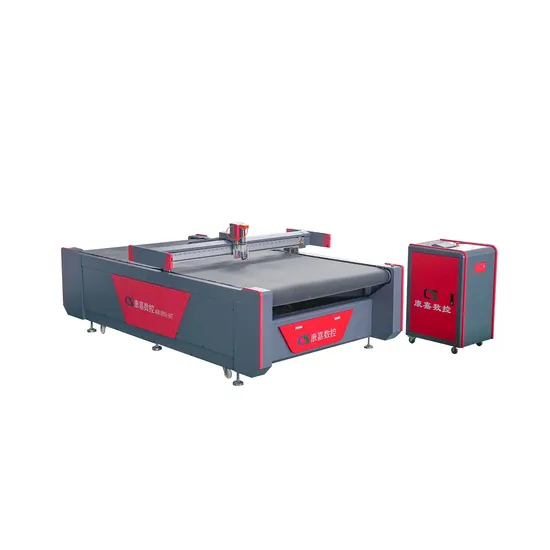

Auto feeding home upholstery sofa curtain cushion table cloth oscillating knife cutting machine manufacturer
Technical Parameters: |
Cutting Tools Recommended | Various tools(According to the material equipped with appropriate tools) |
Rated Power | 9kw |
Max. Cutting Speed | 1200mm/s |
No-load Speed | 1500mm/s |
Cutting Thickness | 0.1-110mm (depending on the materials) |
Cutting Accuracy | ±0.1mm |
Transmission Interface | Ethernet |
Drive System | Servo motor, linear guide rail, rack and pinion |
Material Fixed Mode | Vacuum adsorption |
Format Supported | DXF, PLT |
Operation Property | Online/offline operation, continuous cutting with high efficiency, 7*24 hours with zero downtime |
Safety Device | Infrared sensing device, 4 emergency stop buttons, intelligent anti-collision device |
Power Supply | AC 110V/220V/380V, 50/60Hz, single/two/three phase |
Why choose us
Applicable to industies
Exhibition
Certifaction
Packing and delivery
FAQ
Q:I want to buy this machine,what suggestion can you give?
A:Please tell me what material do you process and what's the size of your material?
Q:What's the delivery cost & time?
A: Please tell me your sea port name,I check shipping cost,after production we will deliver ASAP.
Q:Have you exported to our country?
A:We have been in this field for 5 years,we have CE,ISO,SGS certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and many more countries.
Q:This is the first time I use this this kind of machine,is it easy to operate?
A:There are English manual or guide video that show how to use the machine,if there is still have any question,please contact us by e-mail/skype /phone/trademanager online service at any time.
Q:If machine have any problem after I receive it ,how can I do ?
A:Free parts send to you in machine warranty period if machine have any problem ,if the parts less than 0.5kg,we pay the postage.
