Aquarium Industrial Fish Food Equipment

Product Description

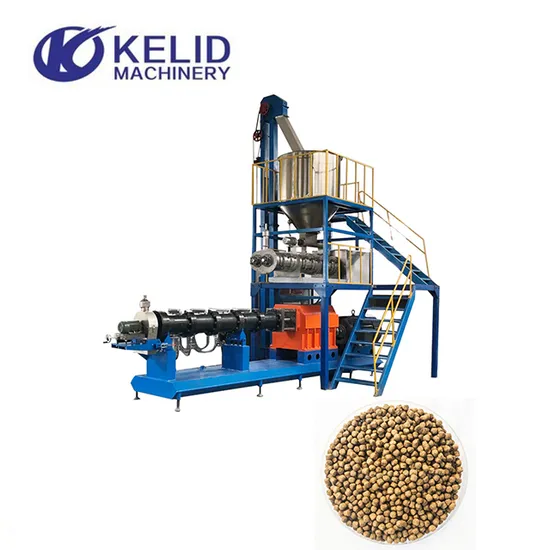

Aquarium Fish Food Equipment
1.Description

Fish feed pellet machine can be used to producing floating fish feed and sinking fish feed. The floating Fish feed extruder can make kinds of feed, such as feed fish, catfish, shrimps, crab, etc. the fish pellet made by the machine can float on water more than 24 hours. Gelatinization degree can reach 90%, enhance the output of fodders, it is suitable for making floating feed, pet feed, fish fodder. The diameter of particle is Φ0.6-16mm. Promising fodder output evenly and continuously.

a. Raw materials adopts wheat flour, rice flour, corn flour, soybean flour, fish meal, bone meal etc as raw materials.

b. Products this line can be used to produce fish pellets, the pellets size can be from 1.0mm to 12.0mm by adjusting the dies from extruder; meanwhile it can produce dog feed, cat feed.

c. Capacity 150kg/h, 240kg/h, 500kg/h, 1ton/h, 2ton/h, 3tons

d. Flow chart Mixing system---Extrusion system----Drying system----Flavoring system---Packing system

e. Voltage in China Three phases; 380V/50Hz, Single phase; 220V/50Hz, we can make it according to customers' Local voltage according to different countries.

f. Machines Materials

Machine Material: Stainless Steel #304, thickness:1.2mm

Main Motor: Siemens China brand

Main Electric elements: Siemens or CHNT brand

Inverter: Delta brand

g. Technical Parameters

Model	Installed power	Real power	Output	Dimension
KLD65	81.5kw	53kw	100-150kg/h	21000x1200x2200mm
KLD70	115kw	76kw	200-240kg/h	23000x1500x2200mm
KLD85	181kw	117kw	400-500kg/h	28000x3500x4300mm
KLD90	135kw	100kw	1000kg/h	30000x3500x4300mm
KLD115	165kw	115kw	2000kg/h	30000x3500x4300mm

Sample Pictures:
